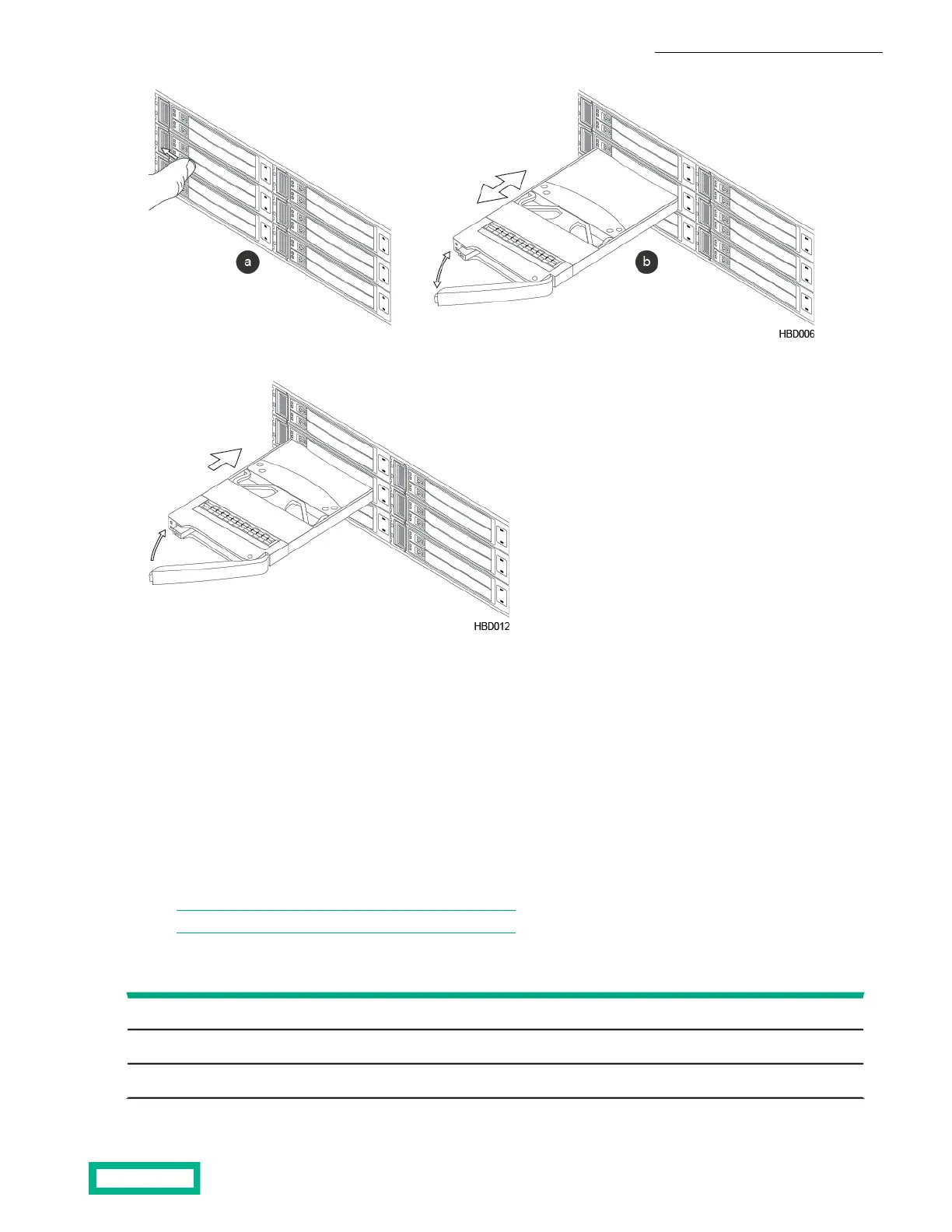

4. Insert the new drive sled (with drive) into drive bay (B) of the drive carrier.
5. Close the sled handle.
Push the handle until it fully engages with the release tab.
6. Repeat steps 2-5 for each additional drive to install.
7. Replace the bezel.
Hold the bezel in place and then firmly press the bezel until you feel the keepers lock.
Upgrade PCIe Cards
Use this procedure to upgrade network interface cards (NICs), host bus adapters (HBAs), or storage class memory (SCM) in
your HPE storage array, including upgrading from dual to quad port NICs or HBAs. Each upgrade kit contains two PCIe cards.
Note: SCM is available for AF60 and AF80 model arrays.
Before you begin
15 minutes per controllerTime required:
Replacement NIC, HBA, or SCM ordered from HPEParts required:
• ESD (electrostatic discharge) strap or appropriate grounding deviceTools required:
Upgrade Procedures 115
