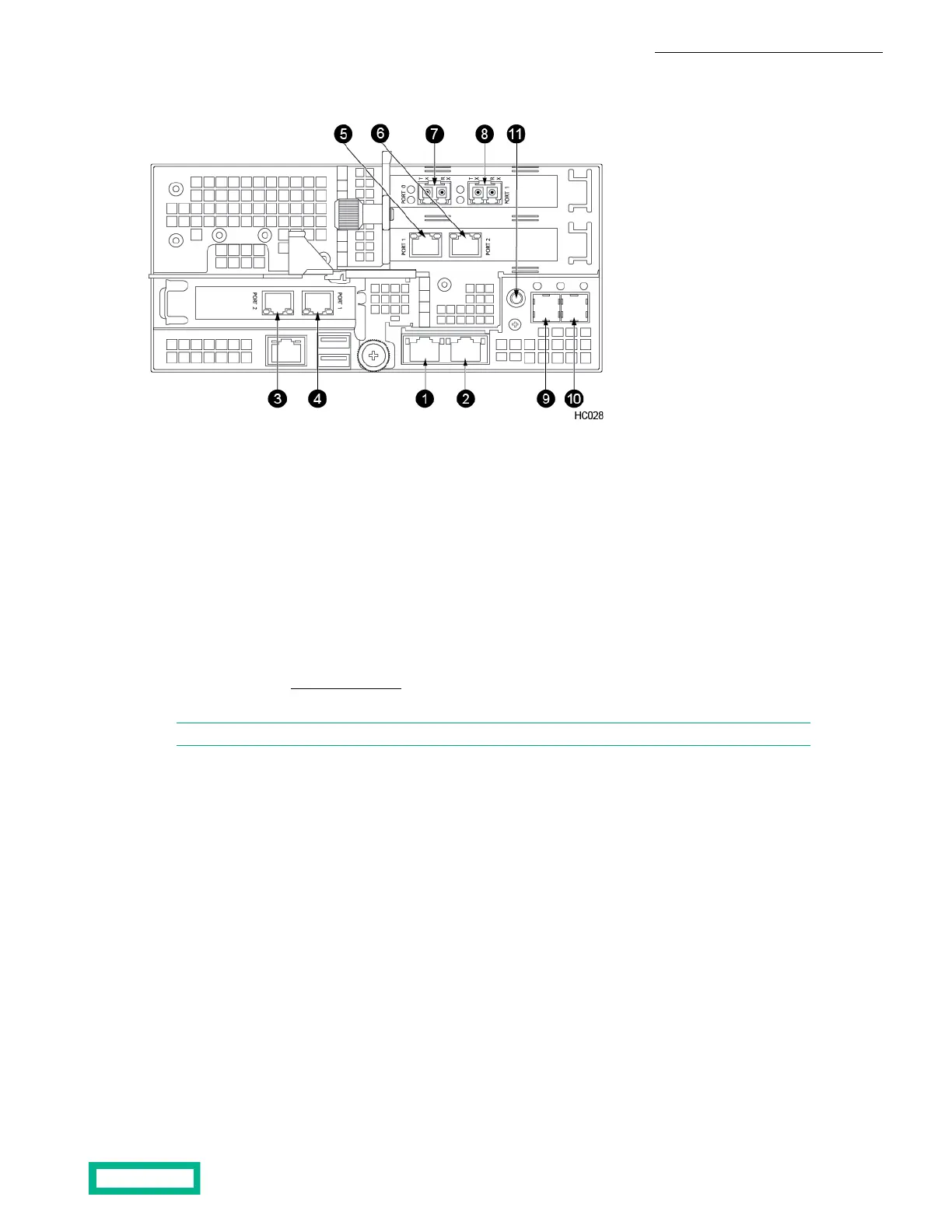

Figure 11: Array interface example (Ethernet and Fibre Channel ports)
71 fc3aeth0a
2 8eth0b fc3b
93 SAS Outeth1b
4 10eth1a SAS Out
115 Serial porteth2a
6 eth2b
Network Connections
Depending on your desired Network Topology, the following network configuration examples show how to make the physical
network connections to support that topology.
Note: Later, be sure to make the appropriate port settings that correspond to these network connections.
One Shared Network
In this configuration:
• Management and data paths share the same subnet or network
• Any traffic can use any type of port
In the following example, the eth0a port on each controller provides the management path (red cables). The eth2b port on
each controller provides the data path (blue cables).
The management and data ports connect to the same network switch. The host also connects to the switch. This is a very
simple network, but it still has redundant controllers to provide high availability.
Note that only one management connection and one data connection are shown. You can add more connections and use
different ports as needed.
Install the HPE Storage Array 26
Documentation Feedback: doc-feedback-hpe-storage@hpe.com
