Receipt of an alert email from the array
Verify that the replacement drive carrier matches the part shown on the RMA work order.
Use the same type and size replacement drive carrier as the old drive carrier (SSD dual flash carrier).
The A and B drive sled label may vary in appearance or be upside down when the new drive carrier is properly
oriented.
Procedure

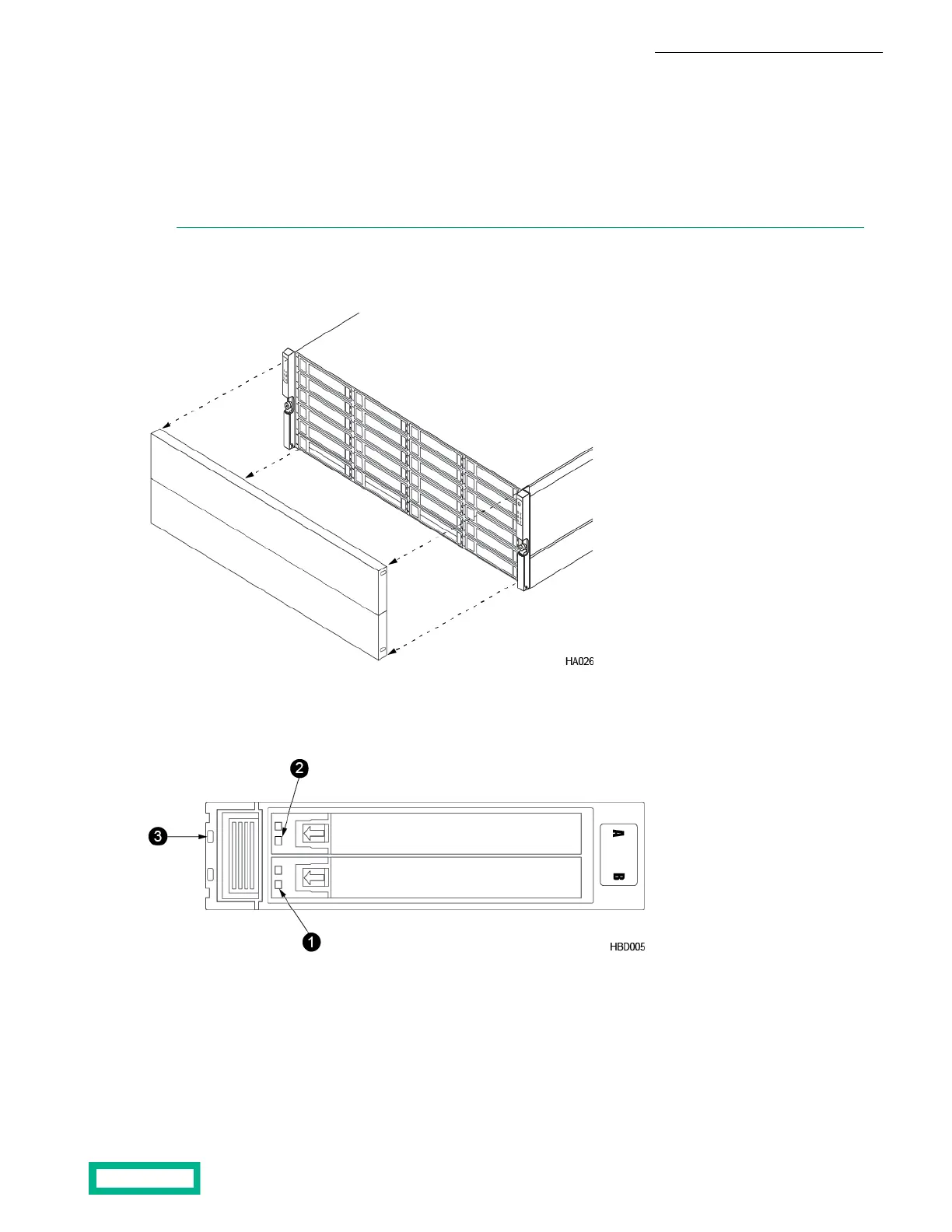

1. Gently pull the front bezel away from the array chassis.
2. Identify the failed drive carrier.
A failed drive carrier has a red fault LED on the left side of the carrier, to the left of the drive LEDs. (Do not replace a drive
carrier with a dark carrier fault LED.)
31 Drive carrier faultDrive B operation
2 Drive A operation
3. Release and remove both drive sleds (A and B) from the failed drive carrier.
a) To release the handle, slide the small green tab to the left on the sled of the drive (B, bottom). The sled handle springs
open.
b) Pull the sled handle to remove the drive from the drive carrier. (Use firm, steady pressure.)
c) Repeat steps a) and b) to remove the second drive from the drive carrier (A, top).
Maintenance Procedures 80
