HPE OfficeConnect 1950 Series Getting Started Guide

14
Figure 18 Connecting the A-RPS1600 power cord to an HPE 1950 24G 2SFP+ 2XGT
PoE+(370W) switch
Connecting the switch to an A-RPS800
1. Remove the cover over the DC-input receptacle on the switch as shown in Figure 19.
Reinstall the cover if you are not to connect a power cord to the receptacle.
2. Align the plug of the power cord with the DC-input receptacle on the power supply, and insert
the plug into the power receptacle. See callout 1 in Figure 20.
If you cannot inse
rt the plug into the receptacle, re-orient the plug rather than use excessive
force to push it in.
3. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in place. See
callout 2 in Figure 20.
4. Con
nect the other end of the power cord to the A-RPS800.

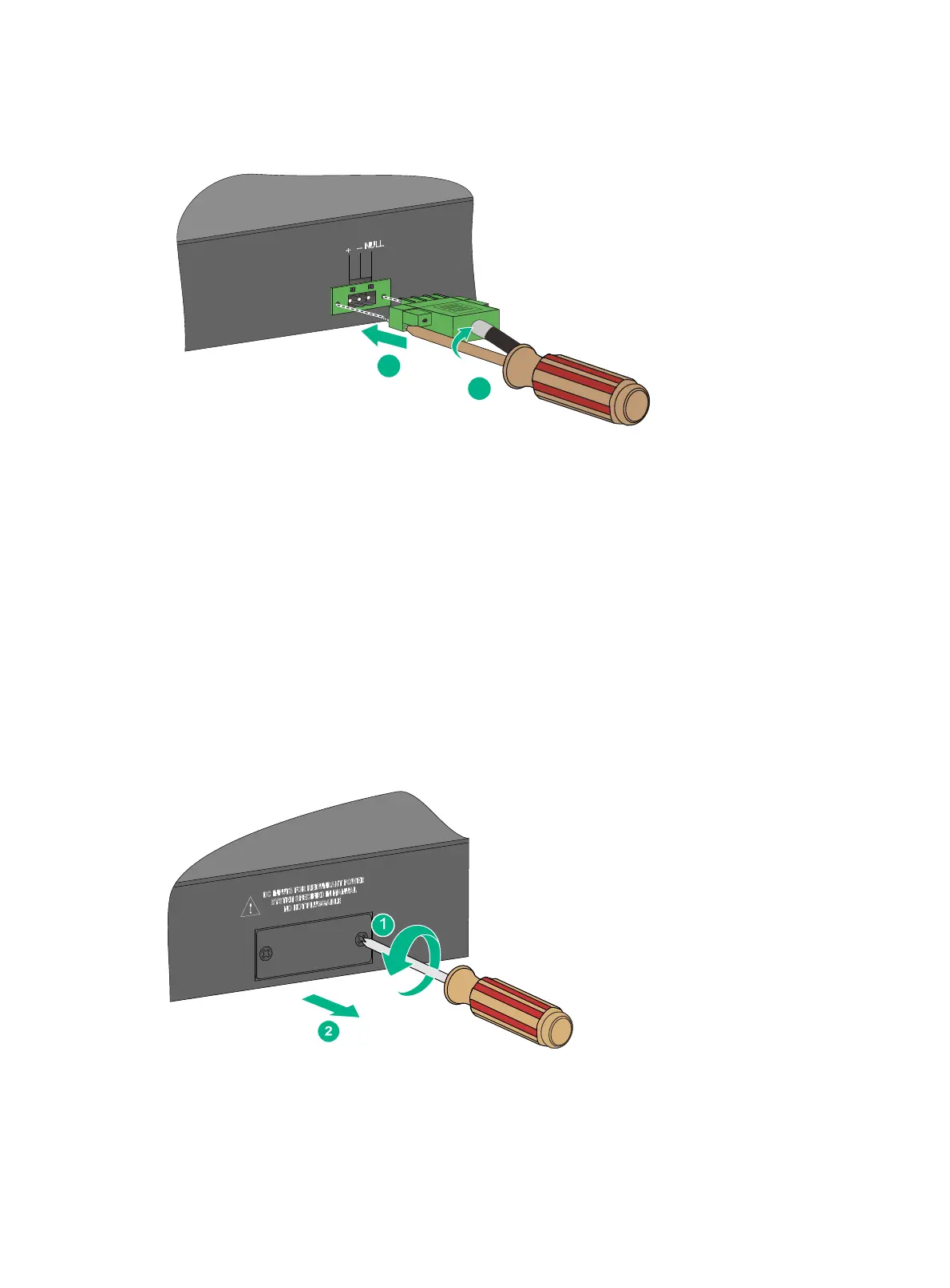

Figure 19 Removing the cover over the DC-input power receptacle
1
2

HPE OfficeConnect 1950 Series Specifications

General

Model	HPE OfficeConnect 1950 Series
Switch Type	Managed
Layer	Layer 2/3
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Routing Protocol	Static, RIP, OSPF
Operating Temperature	0°C to 45°C
QoS Support	Yes
Ports	24 or 48 Gigabit Ethernet ports
10G Ports	Optional 2 or 4 SFP+ ports
PoE Support	Yes
Stacking	Yes (up to 4 switches)
Management	Web-based, SNMP, CLI
Security	802.1X, ACLs, Port Security
Forwarding Rate	Up to 131 Mpps
Power Supply	Internal
Dimensions	Varies by model
Weight	Varies by model
Operating Humidity	10% to 90% non-condensing
