HPE OfficeConnect 1950 Series

6
Installing the switch in a 19-inch rack
Mounting brackets
Table 5 Mounting brackets
Switch model Mounting brackets Views
HPE 1950 24G 2SFP+ 2XGT
One pair of 1U two-hole mounting
brackets
See Figure 2.
• HPE 1950 48G 2SFP+ 2XGT
• HPE 1950 24G 2SFP+ 2XGT
PoE+(370W)
• HPE 1950 48G 2SFP+ 2XGT
PoE+(370W)
• HPE 1950 12XGT 4SFP+
One pair of 1U four-hole mounting
brackets
See Figure 3.

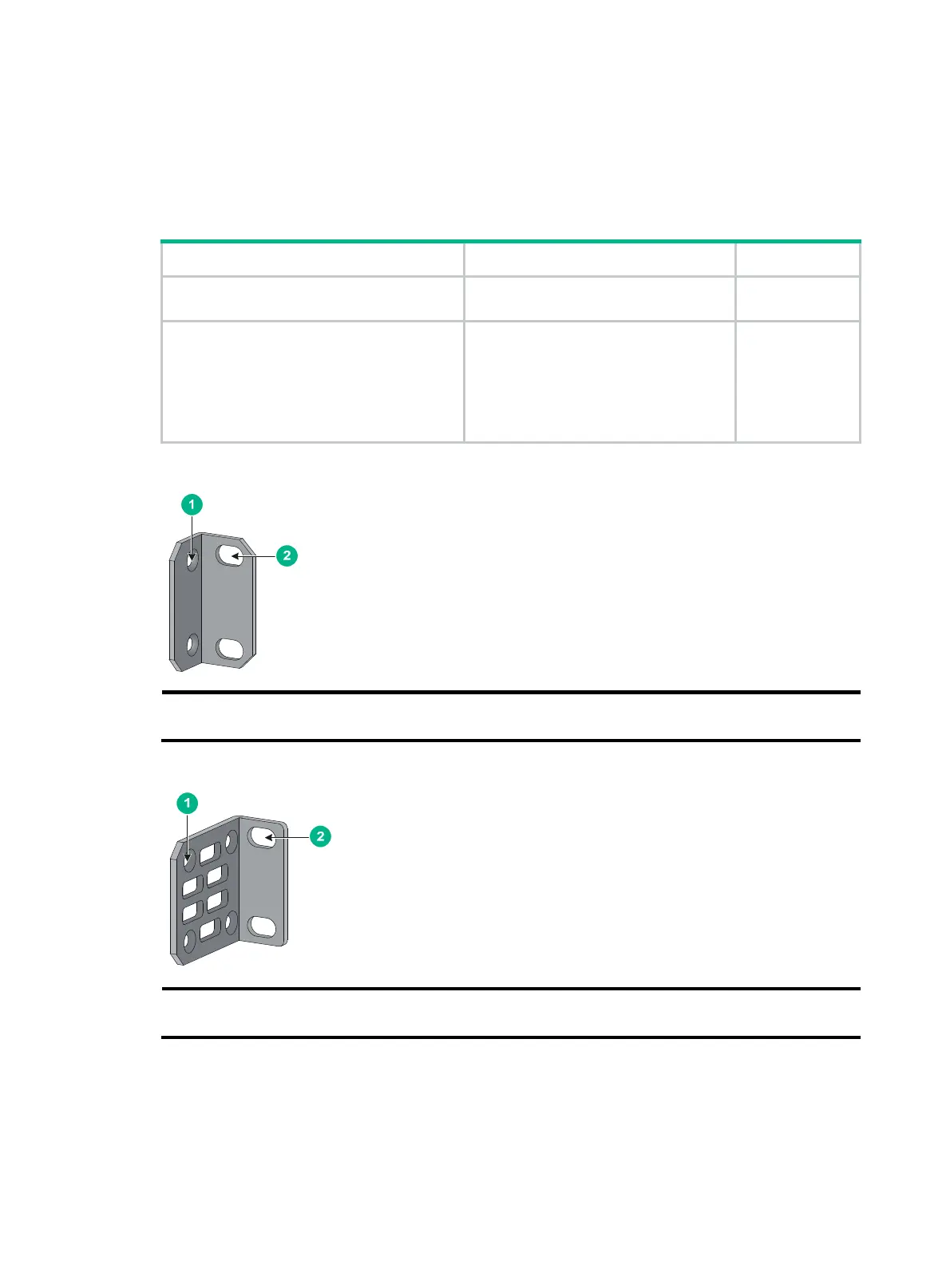

Figure 2 1U two-hole mounting bracket
(1) Screw hole for attaching the bracket to the switch
(2 ) Screw hole for attaching the bracket to the rack post
Figure 3 1U four-hole mounting bracket
(1) Screw hole for attaching the bracket to the switch
(2 ) Screw hole for attaching the bracket to the rack post
Attaching the mounting brackets to the switch
The HPE 1950 12XGT 4SFP+, HPE 1950 24G 2SFP+ 2XGT, and HPE 1950 48G 2SFP+ 2XGT
switches provide one front mounting position (near the network ports) and one rear mounting
position (near the power supplies).
