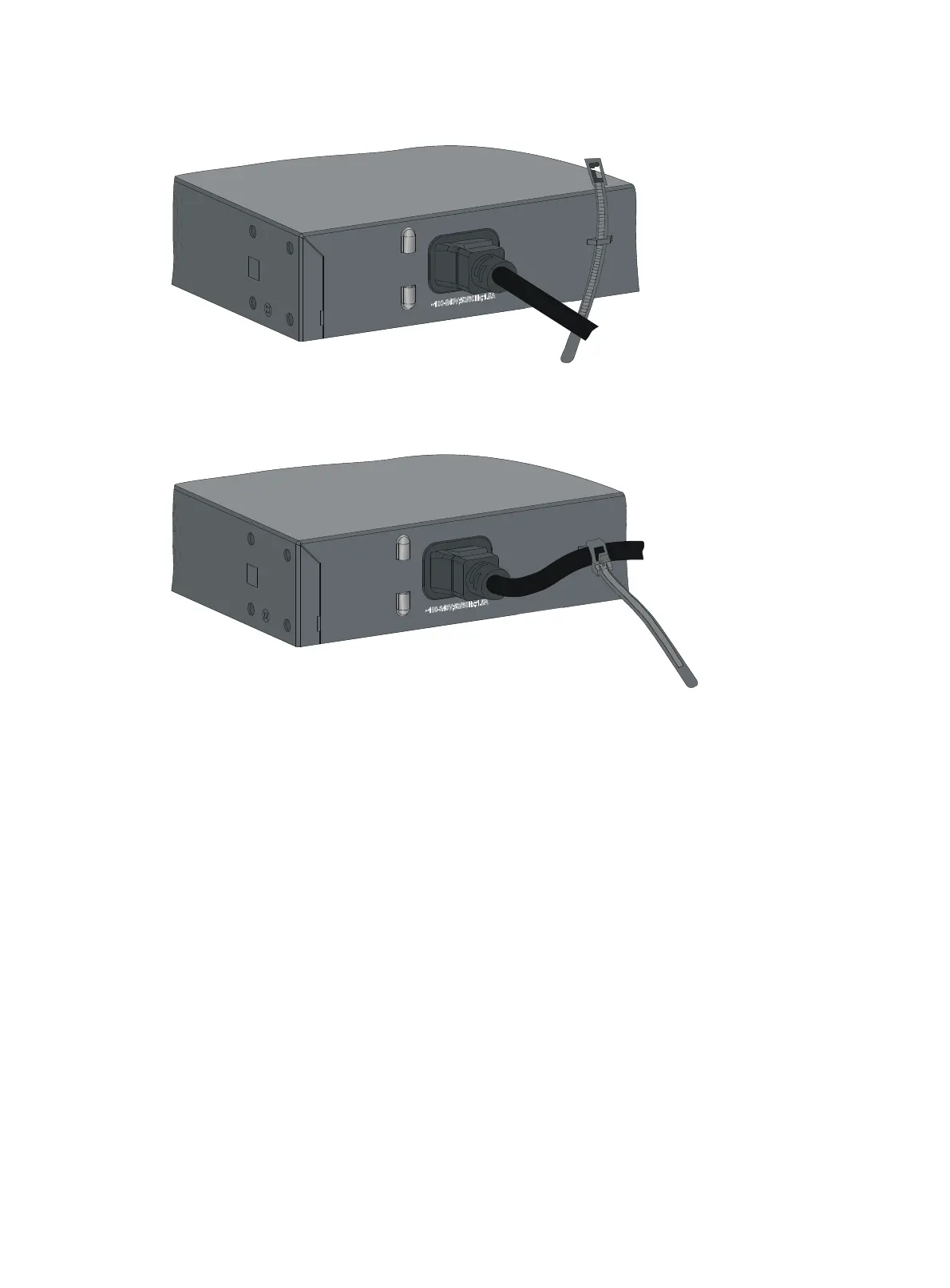

Figure 16 Passing the cable tie through the cable retainer
Figure 17 Using the cable tie to secure the AC power cord
Connecting the switch to an A-RPS1600
1. Orient the plug with the power receptacle on the power supply, and insert the plug into the
receptacle (See callout 1 in Figure 18).
If you cannot insert the plug into the receptacle, re-orient the plug rather than use excessive
force to push it in.
2. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the RPS
receptacle. See callout 2 in Figure 18.
3. Con
nect the other end of the power cord to an A-RPS1600.
