HPE 1950 48G 2SFP+ 2XGT PoE+(370W)

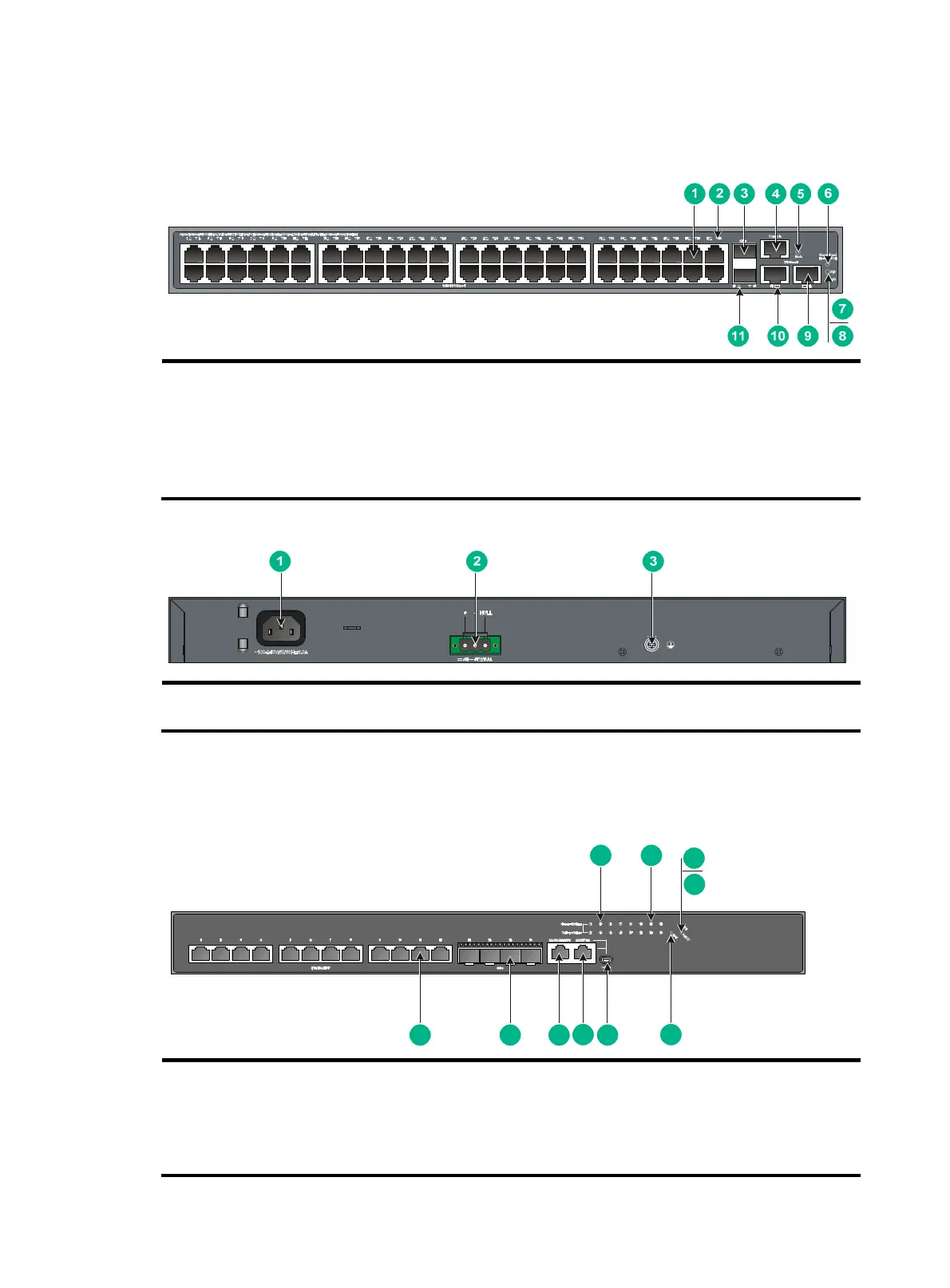

Figure 39 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) SFP+ port (4) Console port
(5) Port LED mode switching button (6) Port mode LED
(7) System status LED (SYS) (8) RPS status LED (RPS)
(9) 1/10GBase-T auto-sensing Ethernet port (10) 1/10GBase-T Ethernet port LED
(11) SFP+ port LED
Figure 40 Rear panel
(1) AC-input power receptacle (2) RPS receptacle
(3) Grounding screw
HPE 1950 12XGT 4SFP+
Figure 41 Front panel
(1) 1/10GBASE-T autosensing Ethernet port LED (2) SFP+ port LED
(3) System status LED (SYS) (4) Management Ethernet port status LED (MGMT)
(5) RPS status LED (RPS) (6) Mini USB console port
(7) Serial console port (8) Management Ethernet port
(9) SFP+ port (10) 1/10GBASE-T autosensing Ethernet port
1 2
3
4
6
7
89
10
5

HPE OfficeConnect 1950 Series Specifications

General

Model	HPE OfficeConnect 1950 Series
Switch Type	Managed
Layer	Layer 2/3
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Routing Protocol	Static, RIP, OSPF
Operating Temperature	0°C to 45°C
QoS Support	Yes
Ports	24 or 48 Gigabit Ethernet ports
10G Ports	Optional 2 or 4 SFP+ ports
PoE Support	Yes
Stacking	Yes (up to 4 switches)
Management	Web-based, SNMP, CLI
Security	802.1X, ACLs, Port Security
Forwarding Rate	Up to 131 Mpps
Power Supply	Internal
Dimensions	Varies by model
Weight	Varies by model
Operating Humidity	10% to 90% non-condensing
