HPE OfficeConnect 1950 Series Getting Started Guide

11

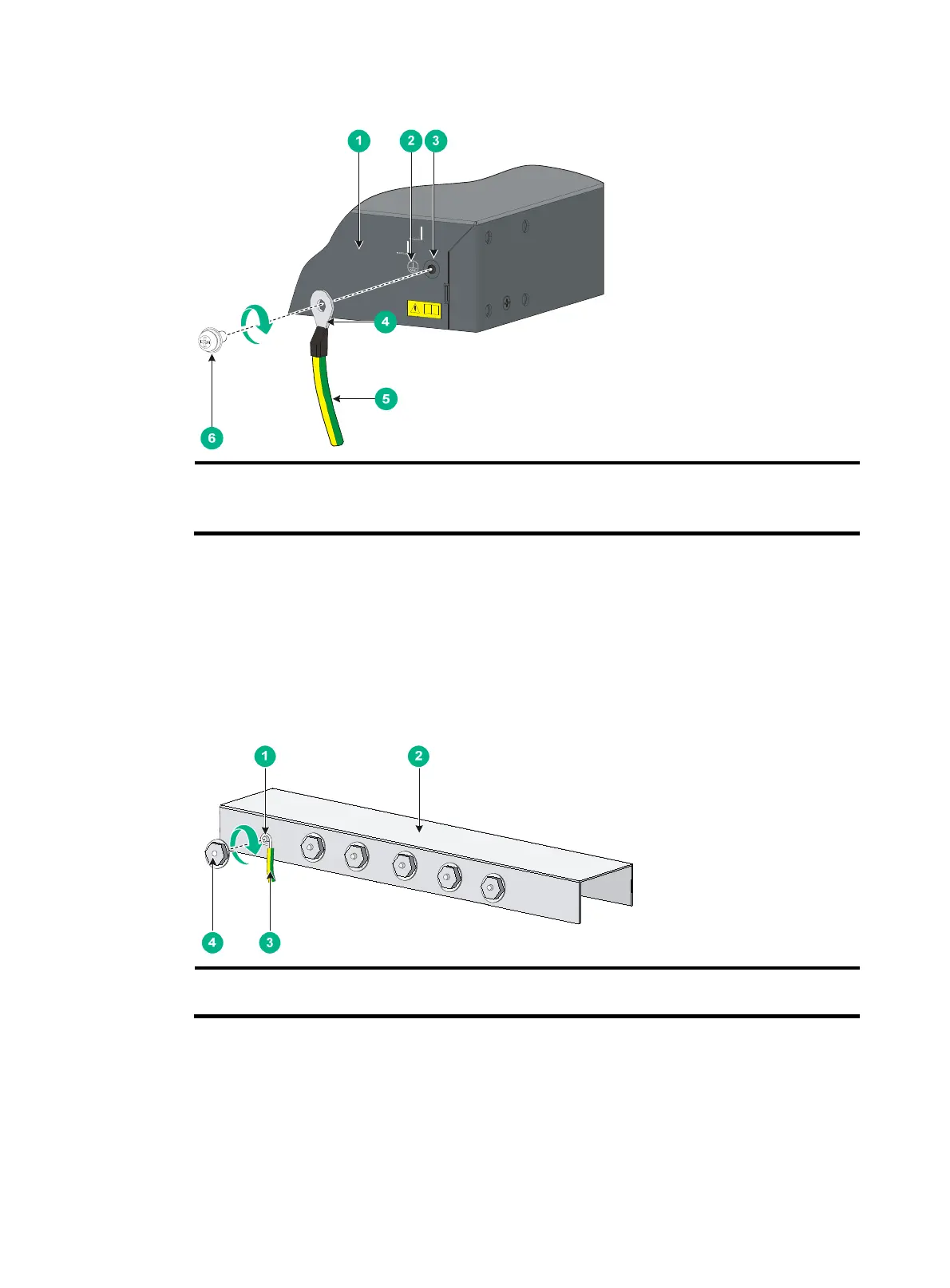

Figure 13 Connecting the grounding cable to the grounding hole of the switch
(1) Chassis rear panel (2) Grounding sign
(3) Grounding hole (4) Ring terminal
(5) Grounding cable (6) Grounding screw
2. Connect the other end of the grounding cable to the grounding strip.
a. Cut the grounding cable to a length according to the distance between the switch and the
grounding strip.
b. Peel 20 mm (0.79 in) of insulation sheath by using a wire stripper.
c. Use the needle-nose pliers to bend the bare wire.
d. Hook the grounding cable to the post on the grounding strip, and use the hex nut to secure
the cable to the post.
Figure 14 Connecting the grounding cable to a grounding strip
(1) Grounding post (2) Grounding strip
(3) Grounding cable (4) Hex nut
Grounding the switch with a grounding conductor buried in
the earth ground
If the installation site has no grounding strips, but earth ground is available, hammer a 0.5 m (1.64 ft)
or longer angle iron or steel tube into the earth ground to serve as a grounding conductor.

HPE OfficeConnect 1950 Series Specifications

General

Model	HPE OfficeConnect 1950 Series
Switch Type	Managed
Layer	Layer 2/3
Switching Capacity	Up to 176 Gbps
MAC Address Table Size	16, 000 entries
Routing Protocol	Static, RIP, OSPF
Operating Temperature	0°C to 45°C
QoS Support	Yes
Ports	24 or 48 Gigabit Ethernet ports
10G Ports	Optional 2 or 4 SFP+ ports
PoE Support	Yes
Stacking	Yes (up to 4 switches)
Management	Web-based, SNMP, CLI
Security	802.1X, ACLs, Port Security
Forwarding Rate	Up to 131 Mpps
Power Supply	Internal
Dimensions	Varies by model
Weight	Varies by model
Operating Humidity	10% to 90% non-condensing
