HPE ProLiant e910

To replace the component, reverse the removal procedure.

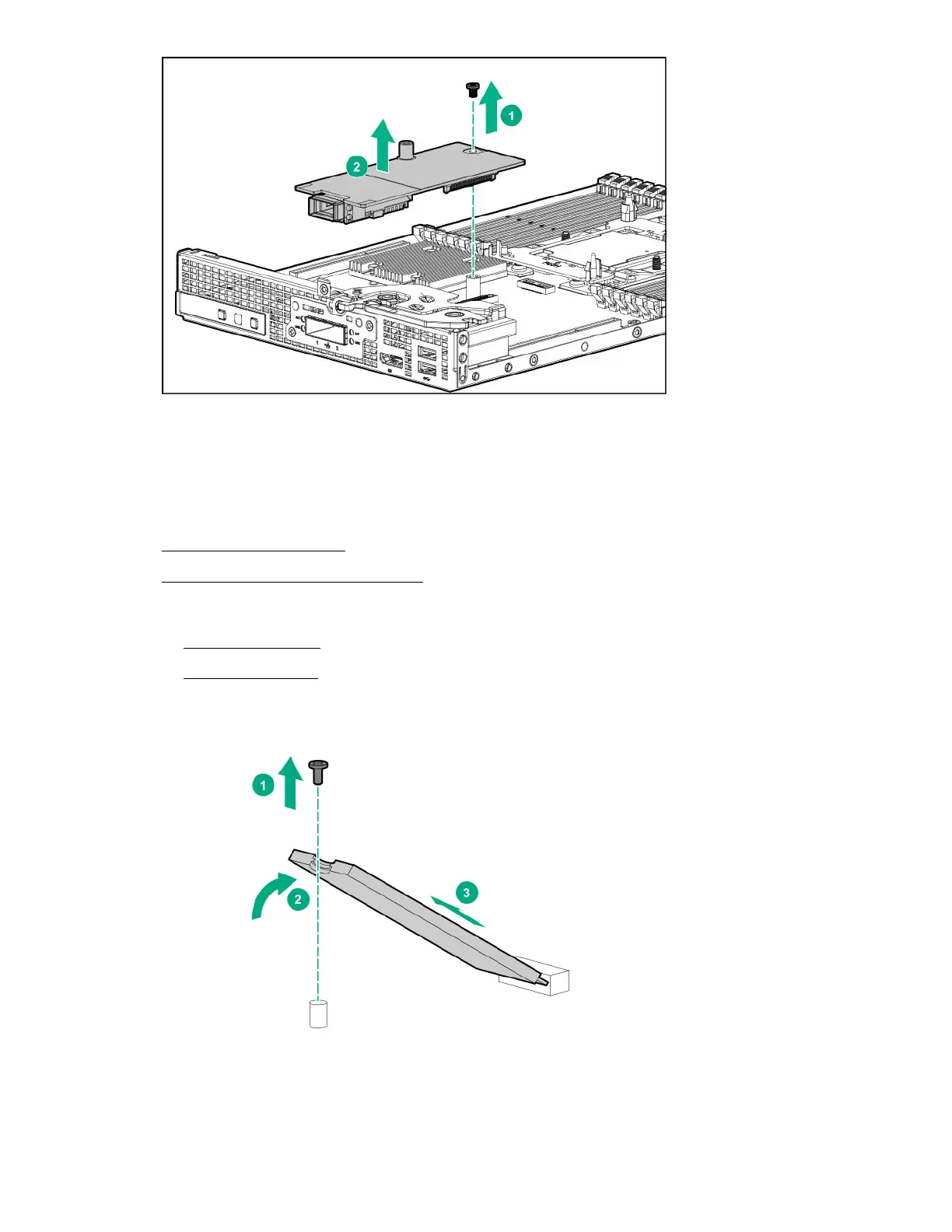

Removing and replacing the NVMe M.2 enablement board
Procedure
1.
Power down the server blade.
2.
Remove the server blade from the chassis.
3.
For 2U server blade, do the following:
a.
Remove the top cover.
b.
Remove the air bale.
4.
Remove the NVMe M.2 SSD module.
5. Remove the M.2 enablement board.
Removal and replacement procedures 155
