Replacing the system board
Procedure

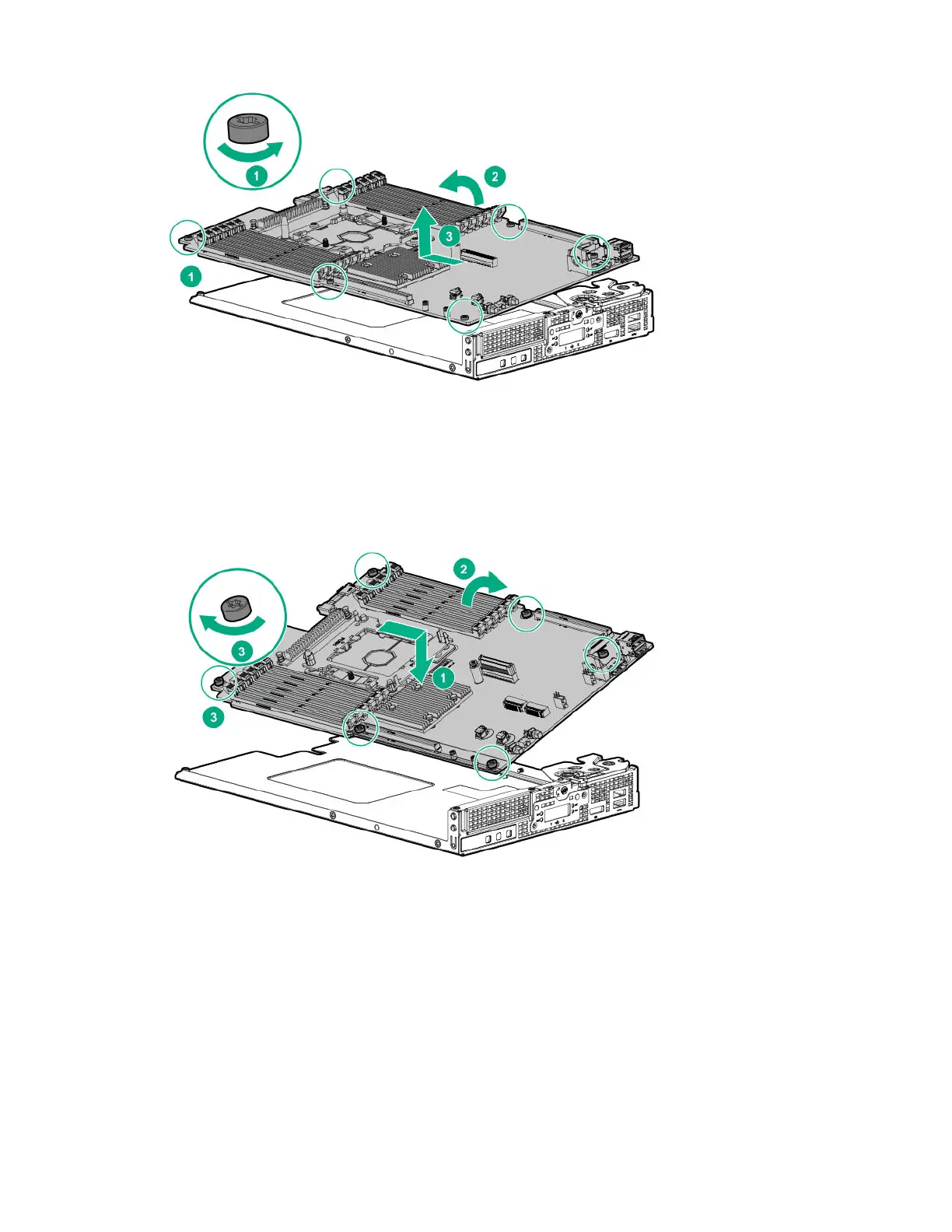

1.
Install the spare system board.
2. Install the processor heatsink assembly:
a. Locate and align the Pin 1 indicator on the processor frame and the socket.
b. Align the processor heatsink assembly with the heatsink alignment posts and gently lower it down until it sits evenly on
the socket.
The heatsink alignment posts are keyed. The processor will only install one way.
A standard heatsink is shown, your heatsink might look dierent.
Removal and replacement procedures 169
