• PCIe riser for 1U server blade
• Network riser
• NVMe M.2 enablement board
7. Disconnect all cables from the system board.

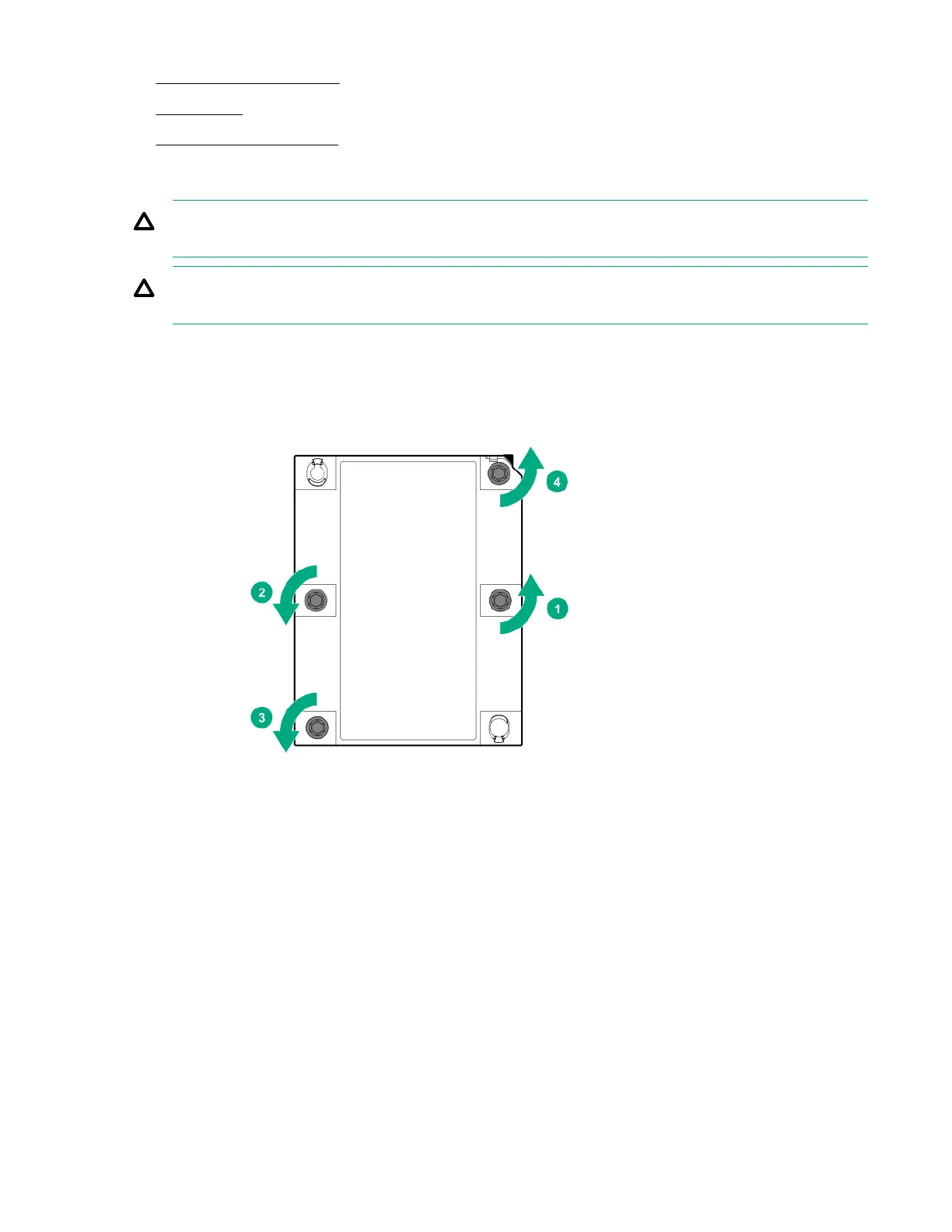

CAUTION: Be sure to loosen each heatsink nut in the order indicated. Otherwise, damage might occur to the
heatsink or processor.
CAUTION: Install the processor heatsink assembly as soon as possible after removing it. Do not leave the processor
socket unpopulated for extended periods of time.
8. Remove the processor heatsink assembly:
a. Allow the heatsink to cool.
b. Using a T-30 Torx screwdriver, loosen the heatsink nuts.
c.
Lift the processor heatsink assembly up and away from the system board.
9.
Remove the system board:
a. Remove the screws securing the system board.
b. Slide the tray sideways and then remove the system board.
168 Removal and replacement procedures
