d. Unlatch the remaining corners of the frame.
e. Separate the frame from the heatsink.
To replace the processor:
8.

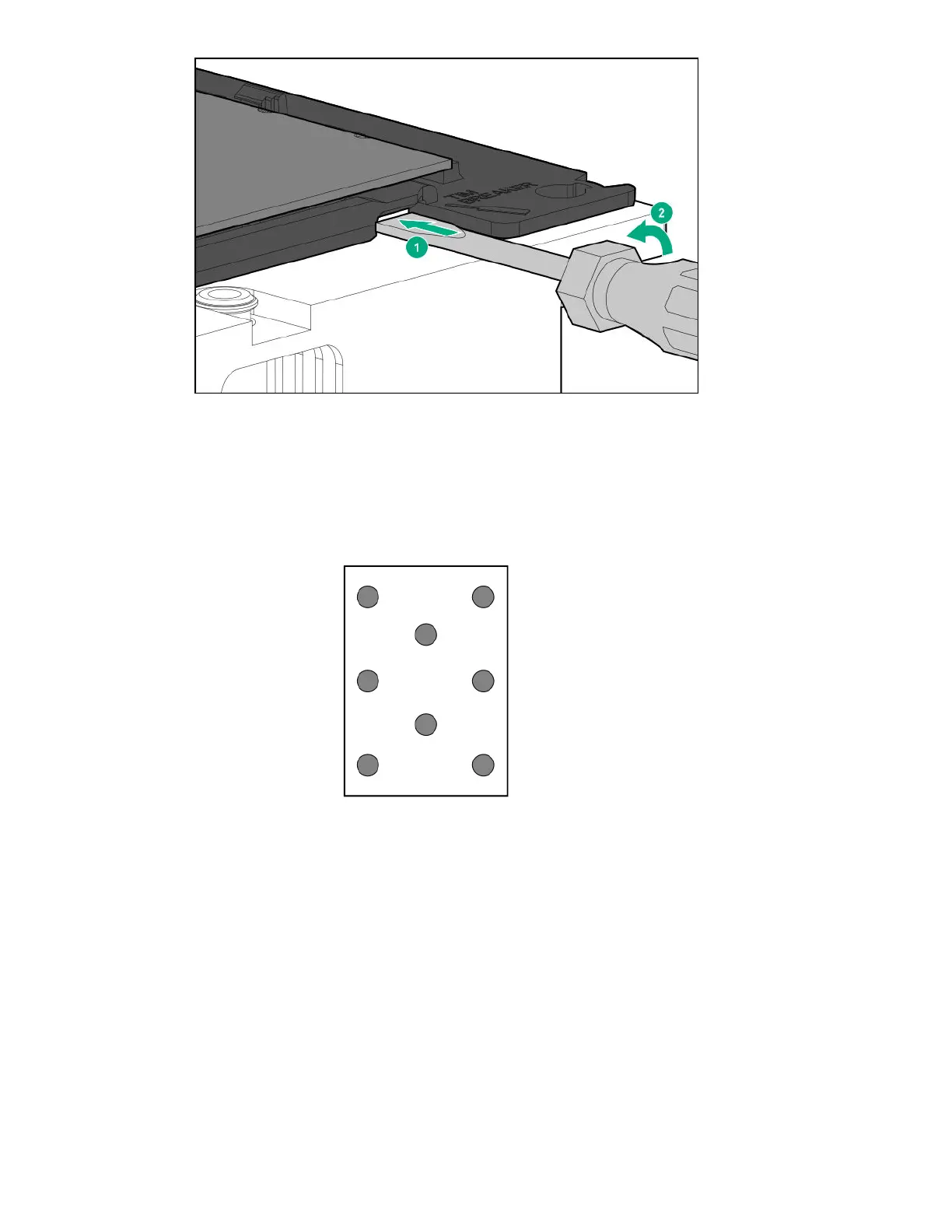

If reusing an existing heatsink, apply new thermal grease to the processor in the following pattern shown.
If installing a new heatsink, the thermal grease is preapplied.
9. Replace the processor assembly on the heatsink:
a. Align the pin 1 indicator on the processor to the pin 1 indicator on the heatsink.
b. Install the processor on the heatsink and ensure that all the latches are engaged with the heatsink.
Removal and replacement procedures 165
