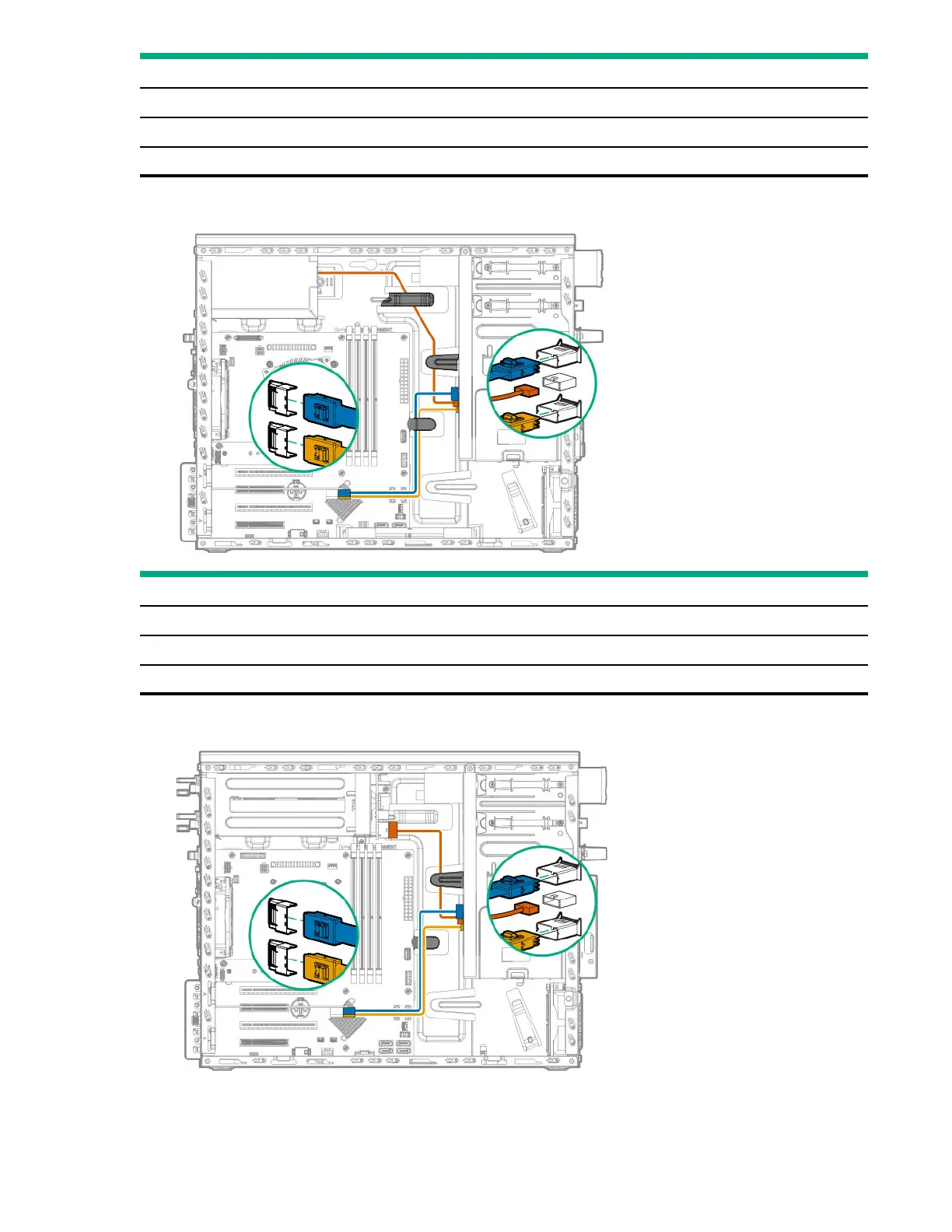

Cable color Description
Orange Drive power cable
Blue Mini-SAS cable from controller port 1 to drive backplane port 1
Gold Mini-SAS cable from controller port 2 to drive backplane port 2
SFF hot-plug drive cabling for controller with standard power supply
Cable color Description
Orange Drive power cable
Blue Mini-SAS cable from controller port 1 to drive backplane port 1
Gold Mini-SAS cable from controller port 2 to drive backplane port 2
SFF hot-plug drive cabling for controller with Flexible Slot power supply
Cabling
105
