Slot Type Form factor Connector link
width
Negotiable link
width
Supported expansion boards
3 PCI3 FLFH
1
x16 4, 1 • 10 GB Ethernet adapter
• Type-p Smart Array controller
• FC HBA
4 PCI3 HLFH
2
x8 4, 1 • 1 GB Ethernet adapter
• 10 GB Ethernet adapter
1
FLFH=Full length, full height
2
HLFH=Half length, full height

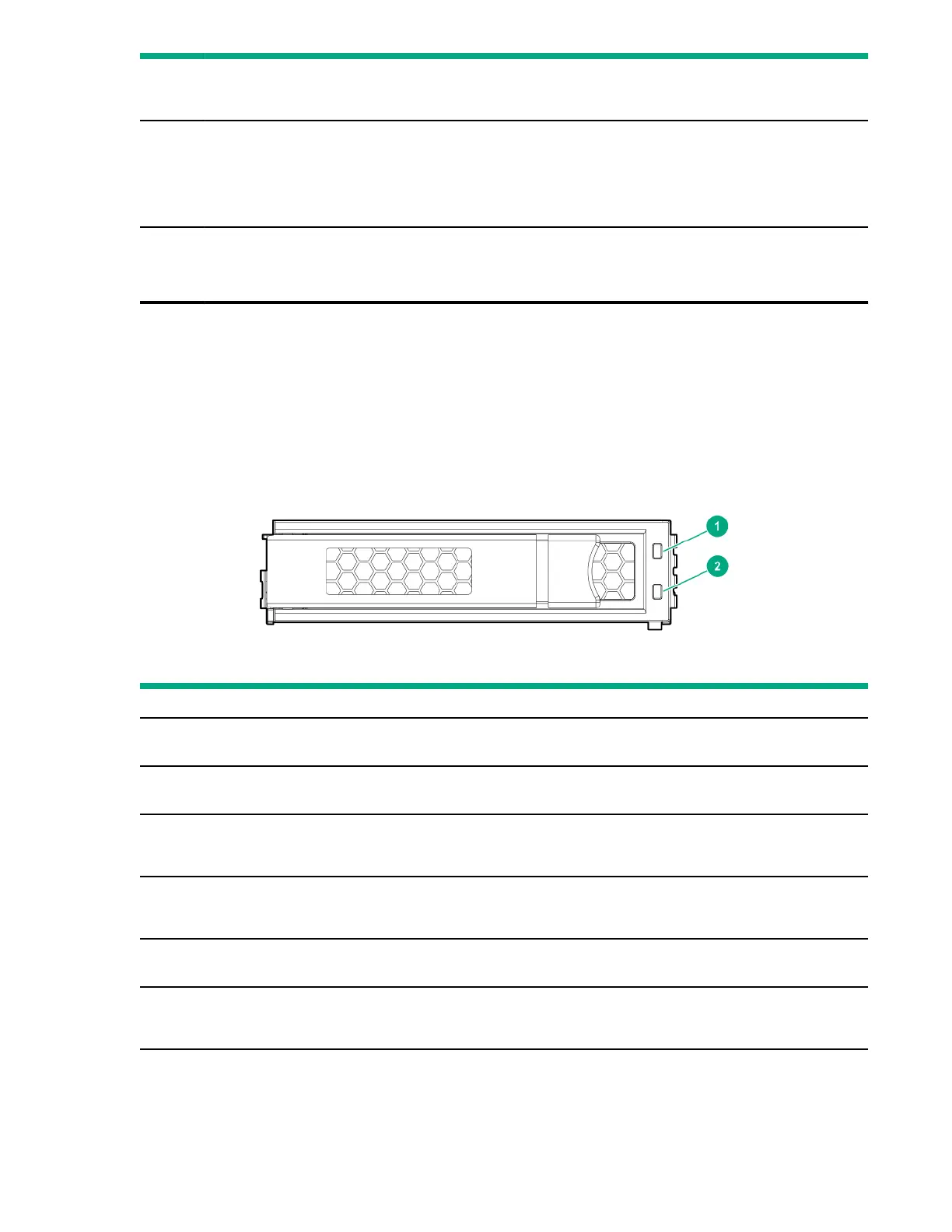

Drive LEDs and buttons
Low profile LFF drive LED definitions
Item LED Status Definition
1 Fault
\Locate
Solid amber The drive has failed.
Solid blue The drive is operating normally and being identified by a
management application.
Flashing amber/blue
(1 flash per second)
The drive has failed, or a predictive failure alert has been received for
this drive; it also has been identified by a management application.
Flashing amber
(1 flash per second)
A predictive failure alert has been received for this drive. Replace the
drive as soon as possible.
2 Online
\Activity
Solid green The drive is online and has no activity.
Flashing green
(4 flashes per second)
The drive is operating normally and has activity.
Table Continued
16 Component identification
