Component identification 10

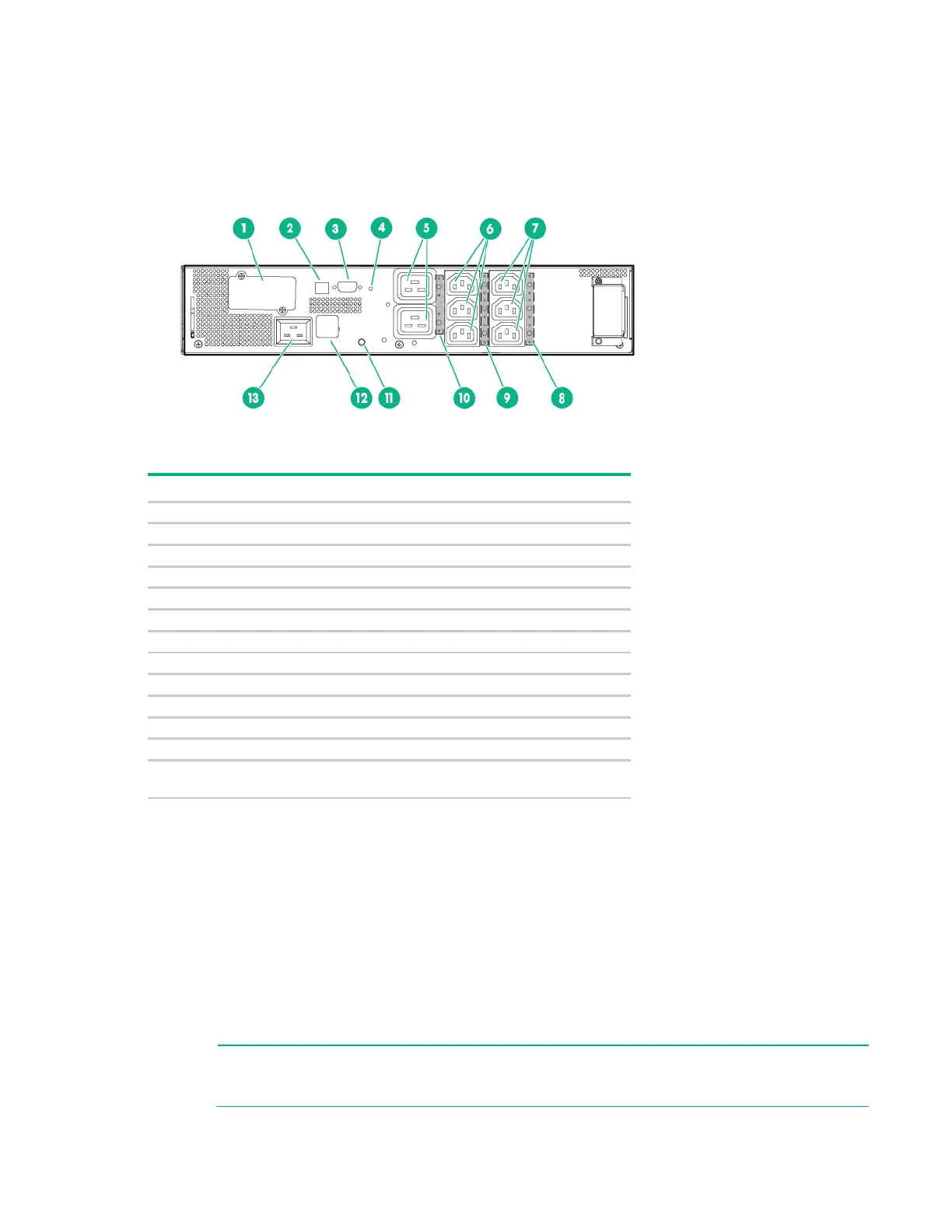

R/T3000 INT rear panel

Item

Description

UPS option card

USB communications port

Serial communications port

Ground bonding screw

Load segment 1 and 2 (one IEC-320-C19 receptacle)

Load segment 1 (three IEC-320-C13 receptacles)

Load segment 2 (three IEC-320-C13 receptacles)

Cord retention clip attachment location

Ground bonding screw

REPO port

Input power receptacle (IEC-320-C20) for country-specific plug

attachment

REPO port

The UPS includes an isolated REPO port. When properly wired, the REPO feature enables the power at

the UPS output receptacles to be switched off from a remote location. To use this feature, the REPO port

must be connected to a remote, normally-open switch (not supplied). The REPO switch is used in

conjunction with a main disconnect device that removes the AC source from the input of the UPS. When

the switch is closed:

• The REPO feature immediately powers down protected devices and does not utilize the orderly

shutdown procedure initiated by power management software.

• The REPO feature shuts down UPS units operating under either utility or battery power.

OTE: If the UPS was operating on battery power when the remote switch was closed, no

power is available to the load devices until utility power is restored and the UPS has been

manually powered up.
