Installation 30
Installing the optional UPS Network Module
NOTE: It is not necessary to power down the UPS before installing the UPS Network Module.
You can purchase the optional UPS Network Module by ordering part number AF465A.

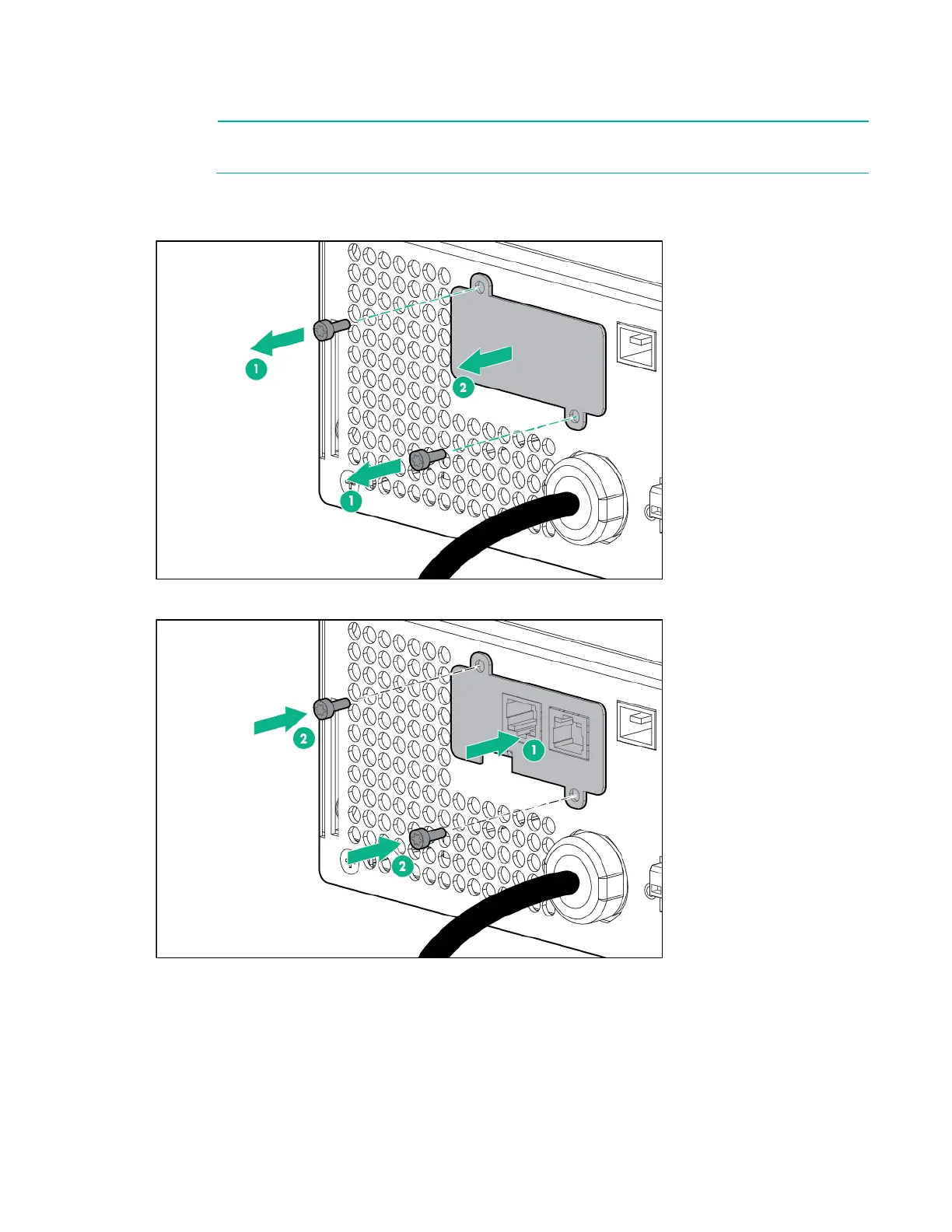

1. Remove the two screws securing the UPS option slot cover plate, and then remove the cover plate.
2. Install the UPS Network Module along the alignment channels in the option slot.
3. Secure the UPS Network Module using the two screws removed in step 1.
