HPE R/T3000 G2

Installation 28

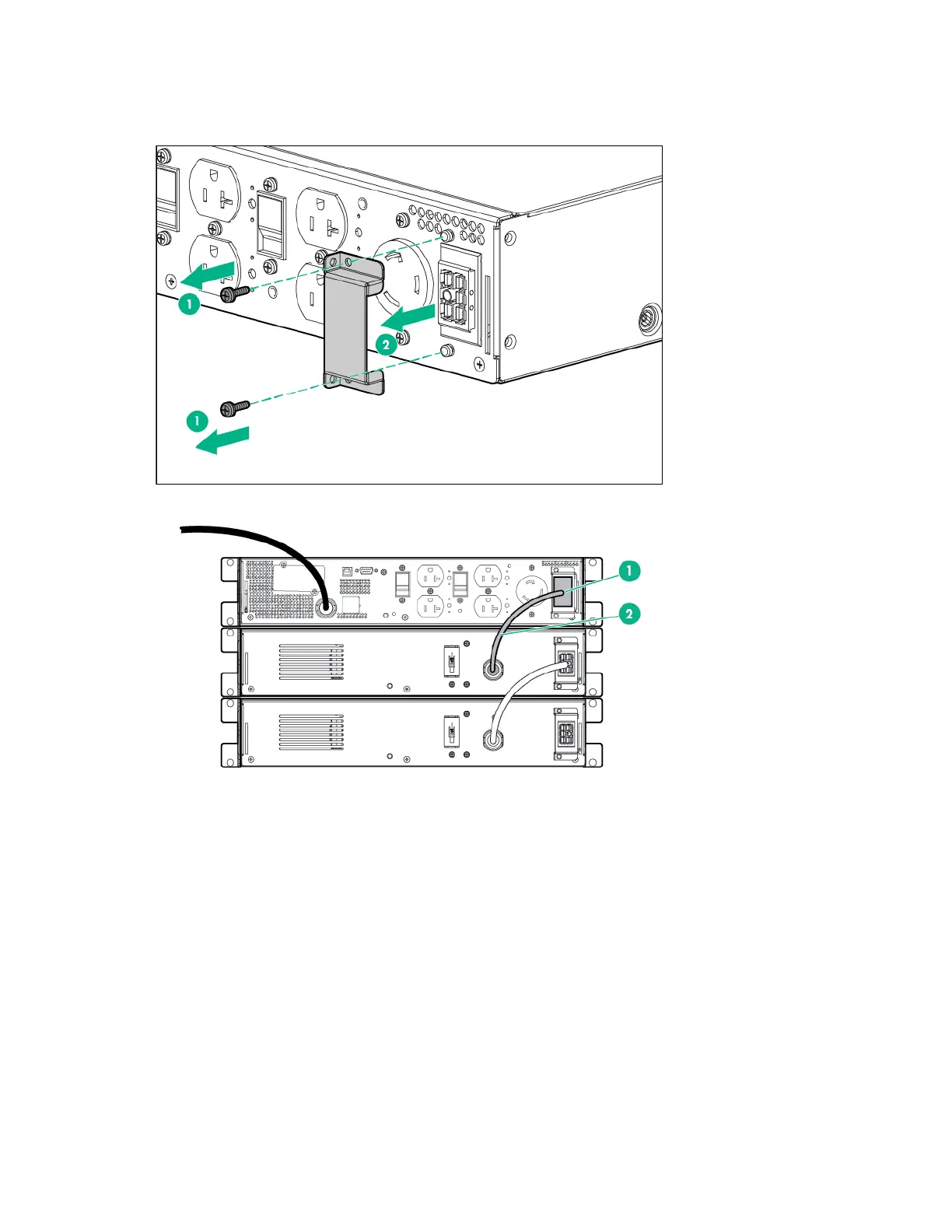

Connecting the ERM to the UPS
1. Remove the screws, and then remove the ERM connector bracket from the UPS.
2. Connect the ERM cable (2) in the socket (1) at the rear of the UPS.
