HPE R/T3000 G2

Component identification 9
Item
Description
5
Load segment 1 (two NEMA 5-20R T-Slot receptacles)
6
Load segment circuit breaker
7
Load segment 2 (two NEMA 5-20R T-Slot receptacles)
8
PDU output (NEMA L5-30R) receptacle (load segment 1)
9
Cord retention clip attachment location
10
Cord retention clip attachment location
11
Ground bonding screw
12
Power cord with L5-30 plug

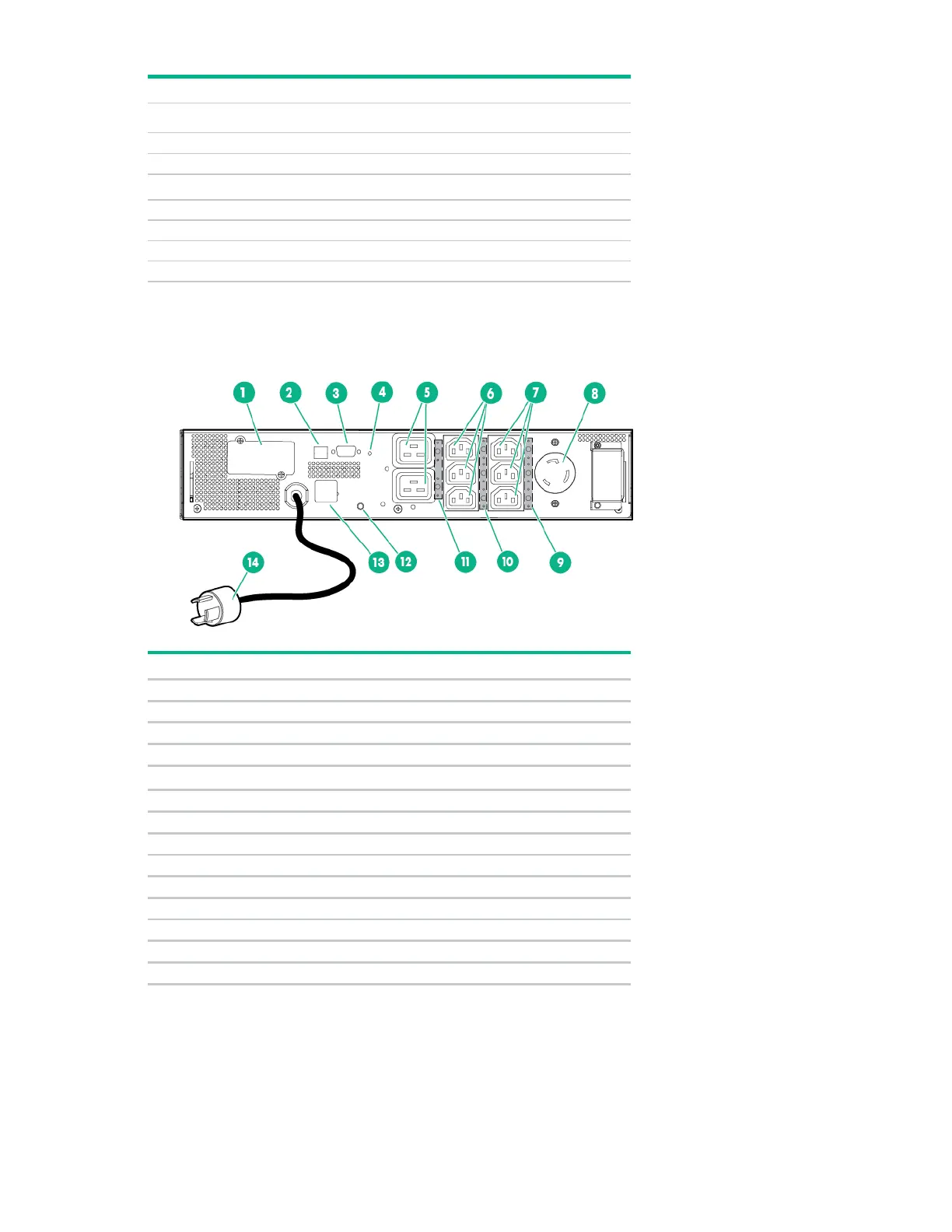

R/T3000h NA and R/T3000h JPN rear panel
Item Description
1
UPS option card
2
USB communications port
3
Serial communications port
4
Ground bonding screw
5
Load segment 1 and 2 (one IEC-320-C19 receptacle)
6
Load segment 1 (three IEC-320-C13 receptacles)
7
Load segment 2 (three IEC-320-C13 receptacles)
8
PDU output (L6-20) receptacle (load segment 1)
9
Cord retention clip attachment location
10
Cord retention clip attachment location
11
Cord retention clip attachment location
12
Ground bonding screw
13
REPO port
14
Power cord with L6-20 plug
