Installation 31
4.

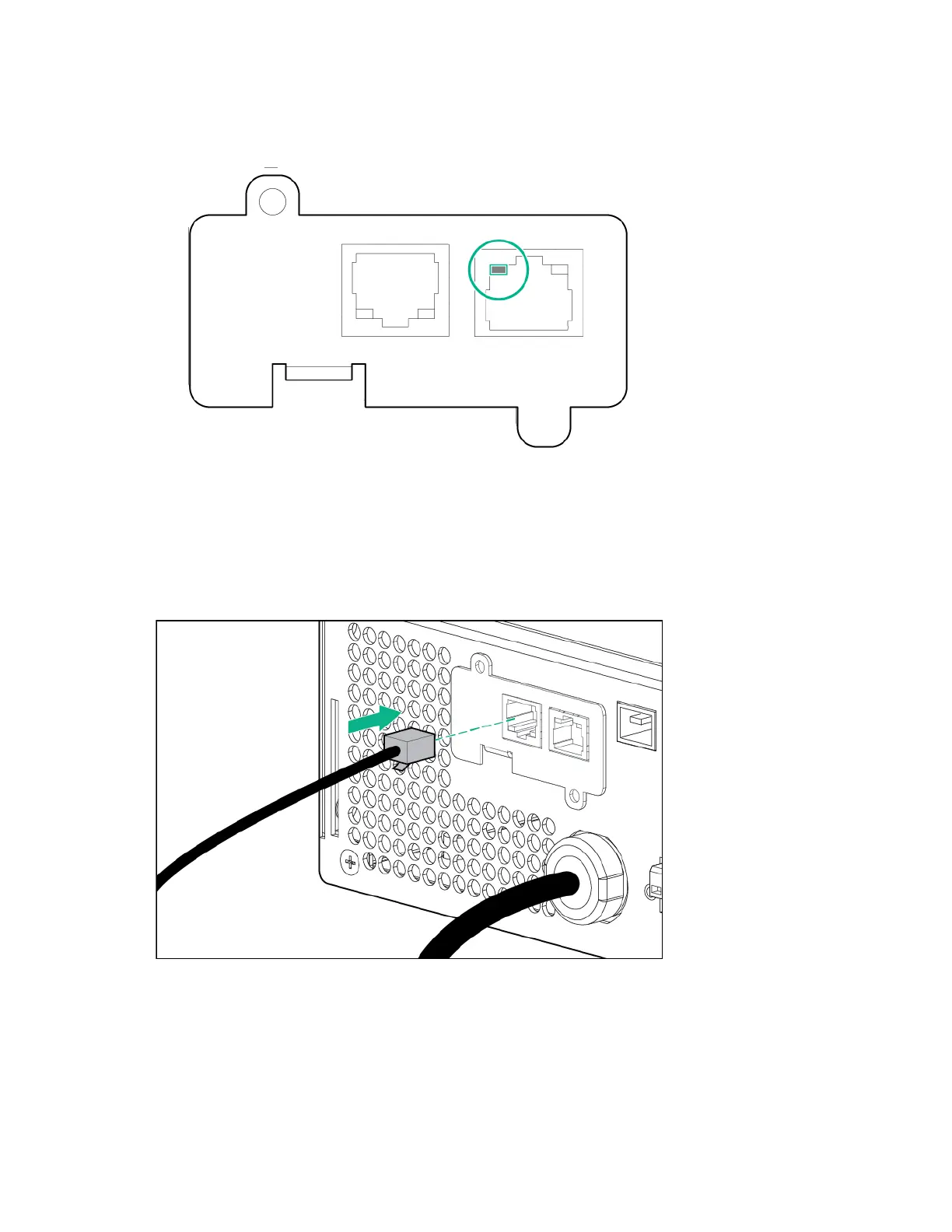

If the UPS is powered up, you can be sure that the UPS Network Module is seated properly and
communicating with the UPS by verifying that the UPS Data LED illuminates solid green, and then
flashes regularly after 2 minutes.
Connecting the UPS Network Module
The UPS Network Module is provided to manage the attached servers. RJ 45 network patch panel cables
are required to use this card.
The RJ 45 network patch panel cables are not included.
Installing the UPS as a tower
Before installing the unit, review and adhere to all warnings provided in "Precautions (on page 12)."
Connecting the battery leads
