hpmont HD09-S Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Detailed Function Introduction
HD09-S Series User Manual V1.1 - 59 -

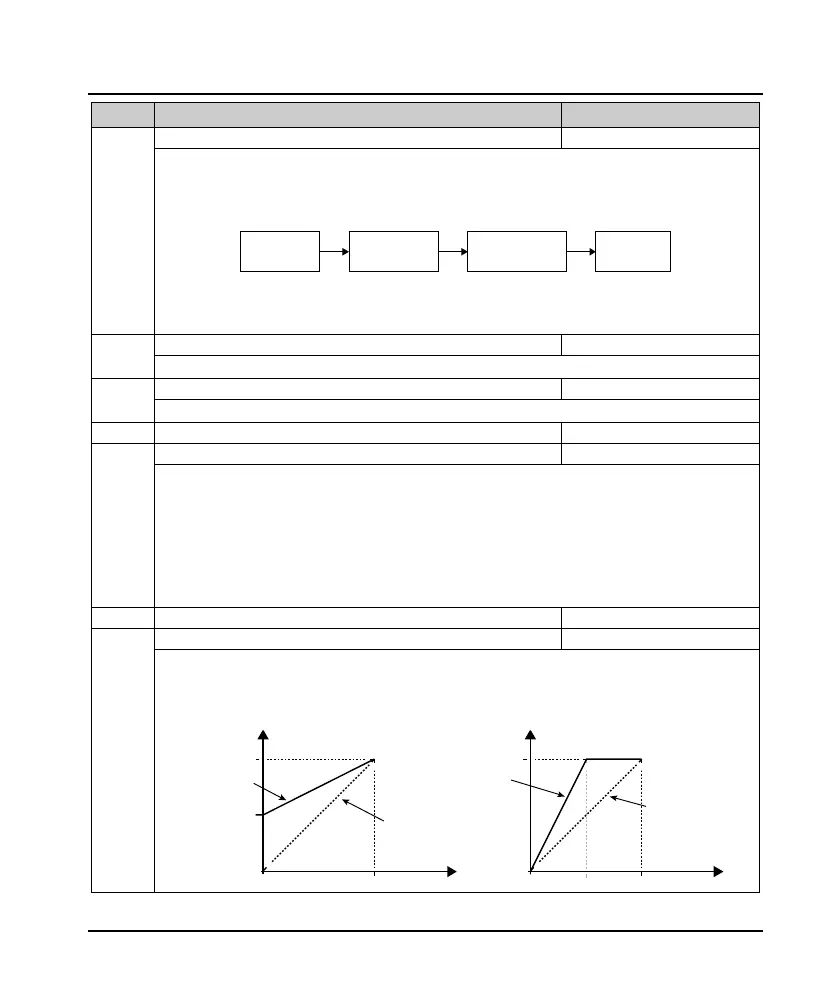

Ref. Code Function Description Setting Range [Default]
F16.07 AI filter time 0.01 - 10.00 [0.01s]
AI input is selected as open-loop frequency setting channel, the analog input needs to be filtered, offset, gain
calculation processed, only to get the actual analog, as shown below.
• The relationship between the AI input and the set frequency is set by F05.01 - F05.04.
• Calculation formula: Calculated value = F16.06×AI actual input + F16.05.
F16.07 defines the filter time of the channel and filters the input signal.
• The longer the filtering time, the stronger the anti-interference ability, but the slower the response.
The shorter the filtering time is, the faster the response time becomes.
F16.17
Max. input pulse frequency
0 - 50000 [10000Hz]
Define DI4 terminals as the max. input pulse frequency when the input pulse.
F16.18
Enter the pulse filter time
0 - 500 [10ms]
To filter the DI4 terminals of the input pulse frequency, to filter out pulse frequency of small fluctuations.
F16.19
AO function
0 - 14 [2]
F16.21 DO function 0 - 14 [0]
0: Reserved.
2: Preset frequency (0 - max. output frequency).
3: Motor rpm (0 - the max. output frequency corresponds to the speed).
5: Output current (0 - 2 times the motor rated current).
11: Output voltage (0 - 1.2 times the inverter rated voltage).
12: DC bus voltage (0 - 2.2 times the inverter rated voltage).
14: AI input (after processing).
F16.22 AO offset -100.0 - 100.0 [0.0%]
F16.23
AO gain
0.0 - 200.0 [100.0%]
If the user needs to adjust the AO output proportional relationship, can be achieved through the output gain.
• Calculation formula: AO actual output = F16.23 × calculated value + F16.22.
• 4 - 20mA current signal output: 20.0% of analog output bias, 80.0% of analog output gain
(4mA corresponds to 0% of analog output and 20mA corresponds to 100% of analog output).
AI actual
input
Fil
ter F16.07
Value after
caculating
Gain F16.06
offset F16.05
AO actual output
100%
F16.23=100%
F16.22=0
F16.22=0
F16.23=200%
AO actual output
F16.22=0
F16.23=100%
F16.22=50%
F16.23=50%
50%
100%
0V 10V 0V 5V 10V
Value before
calculating
Value before
calculating
