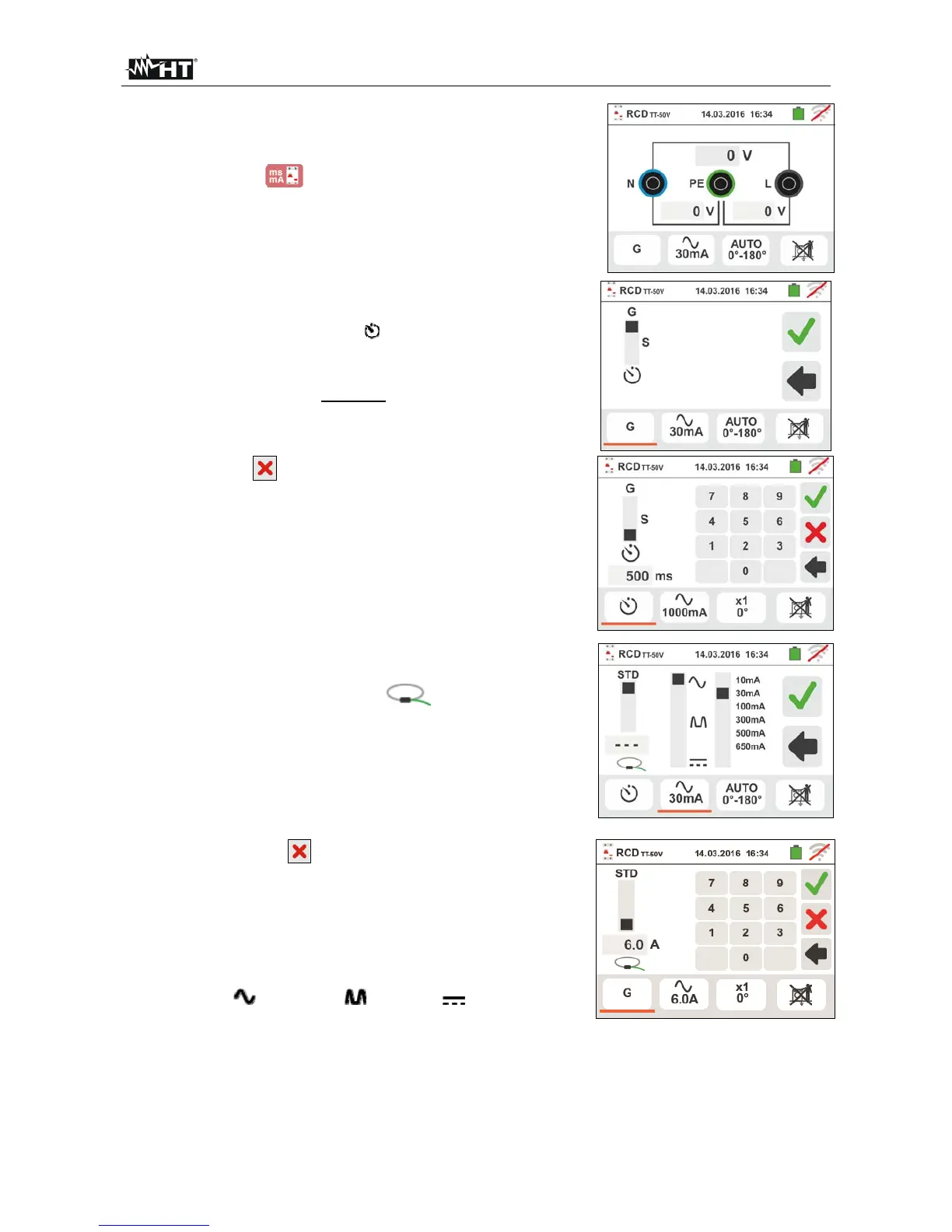

GSC60
EN - 22
1. Select the options “TN, TT or “IT”, “25 or 50V”,
“50Hz or 60Hz” and the reference voltage in the
general settings of the instrument (see § 5.1.4).
Touch the icon. The screen to the side
appears on the display. Touch the icon to the left to
set the RCD operating mode. The following screen
appears on the display:
2. Move the slide bar reference by selecting the
desired operating mode between the options: G
(General), S (Selective), (Delayed). Confirm the
choice by going back to the initial measurement
screen. Note the presence of the chosen selection.
When selecting a Delayed RCD, the instrument
displays the following screen.
3.
Touch the icon to zero the value in the Timer
field and use the virtual keyboard to set the value
of RCD delay time in seconds between 1ms and
500ms. Confirm the choice by going back to the
initial measurement screen. Touch the second icon
to set the type of RCD, the waveform and the
tripping current. The following screen appears on
the display.
4. Move the left slide bar reference and select the
type of RCD between the following options: STD
(molded case RCD) and “ ” (earth leakage
delay RCD with use of optional accessory
RCDX10). In case of earth leakage relay RCD the
following screen appears on the display
5.
Touch the icon
to zero the value in “A” field and
use the virtual keyboard to set the value of rated
current of earth leakage relay RCD. The maximum
rated current is 10.0A. Confirm the choice by going
back to the previous screen.
Move the second slide bar reference by selecting
the waveform of the differential switch between the
options:
(type AC), (type A), (type B).
For RCD of molded case type STD move the third
slide bar reference by selecting the desired rated
current of the differential switch between the
options: 10, 30, 100, 300, 500, 650, 1000mA
Confirm the choice by going back to the initial
measurement screen. Note the presence of the
chosen selections
