4. NOMENCLATURE
4.1. INSTRUMENT DESCRIPTION
CAPTION:
1. Inputs
2. Display
3. Connector for optical output/USB port
4. Arrow keys/ENTER key
5. GO/STOP key
6. SAVE key
7. ON/OFF key
8. HELP / key
9. ESC/MENU key

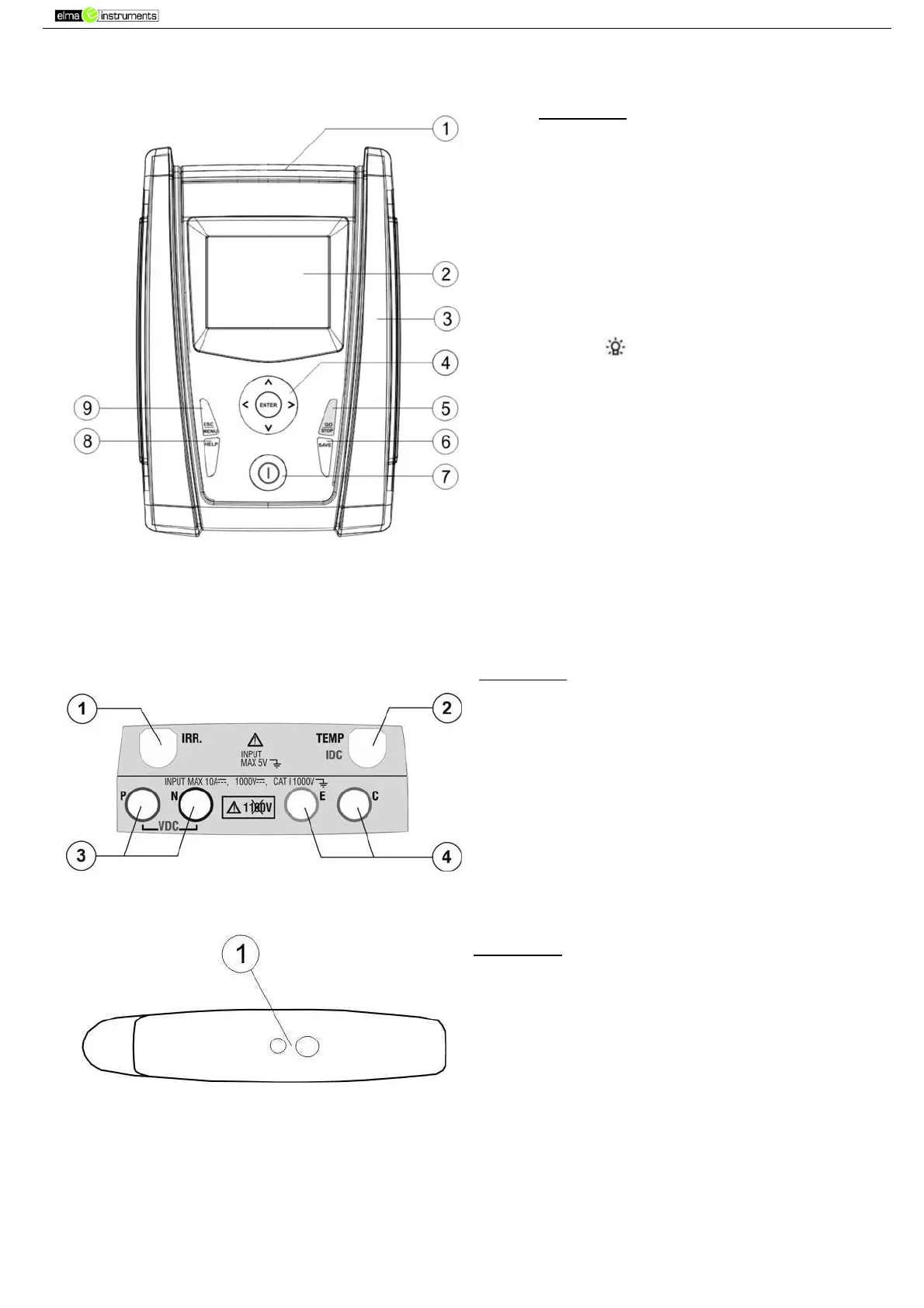

Fig. 1: Description of the front part of the instrument
CAPTION:
1. Input for irradiation measuring probe
2. Input for auxiliary temperature measuring
probe / DC current clamp (IVCK, EFF)
3. P, N inputs for DC voltage (IVCK, EFF) /
Insulation (MΩ) measurement
4. E, C inputs for continuity tests
(LOWΩ)
Fig. 2: Description of the upper part of the instrument
CAPTION:
1. Connector for opto-insulated/USB
output cable connection
Fig. 3: Description of the instrument’s side
