Troubleshooting – 12 V syst.
Do not enter the electrical boxes when
the machine is running!
Contains relays and fuses.

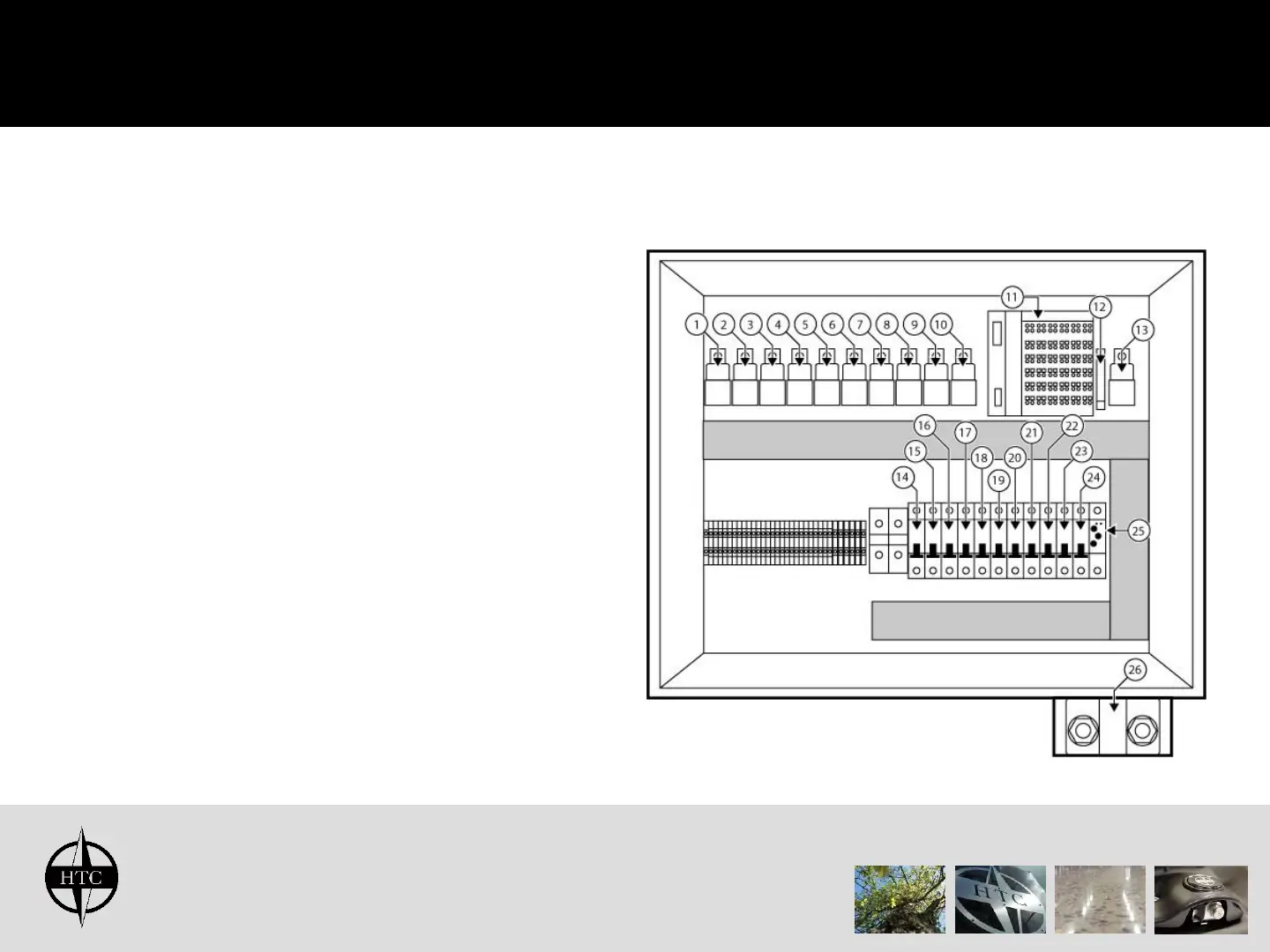

14. Main fuse
15. Light fuse
16. Fuse maneuver
17. Fan A/C
18. Fresh air fan
19. Light inside cabin
20. Fuse diesel engine
21. Fuse back video & control system
22. Fuse EM-Circuit 12V
23. Stereo & Control system
24. Fuse for 24V box 12-24V
26 - EMERGENCY BRAKER 12V
