HTC 2500 iX - Control Cabinet - AS3

57

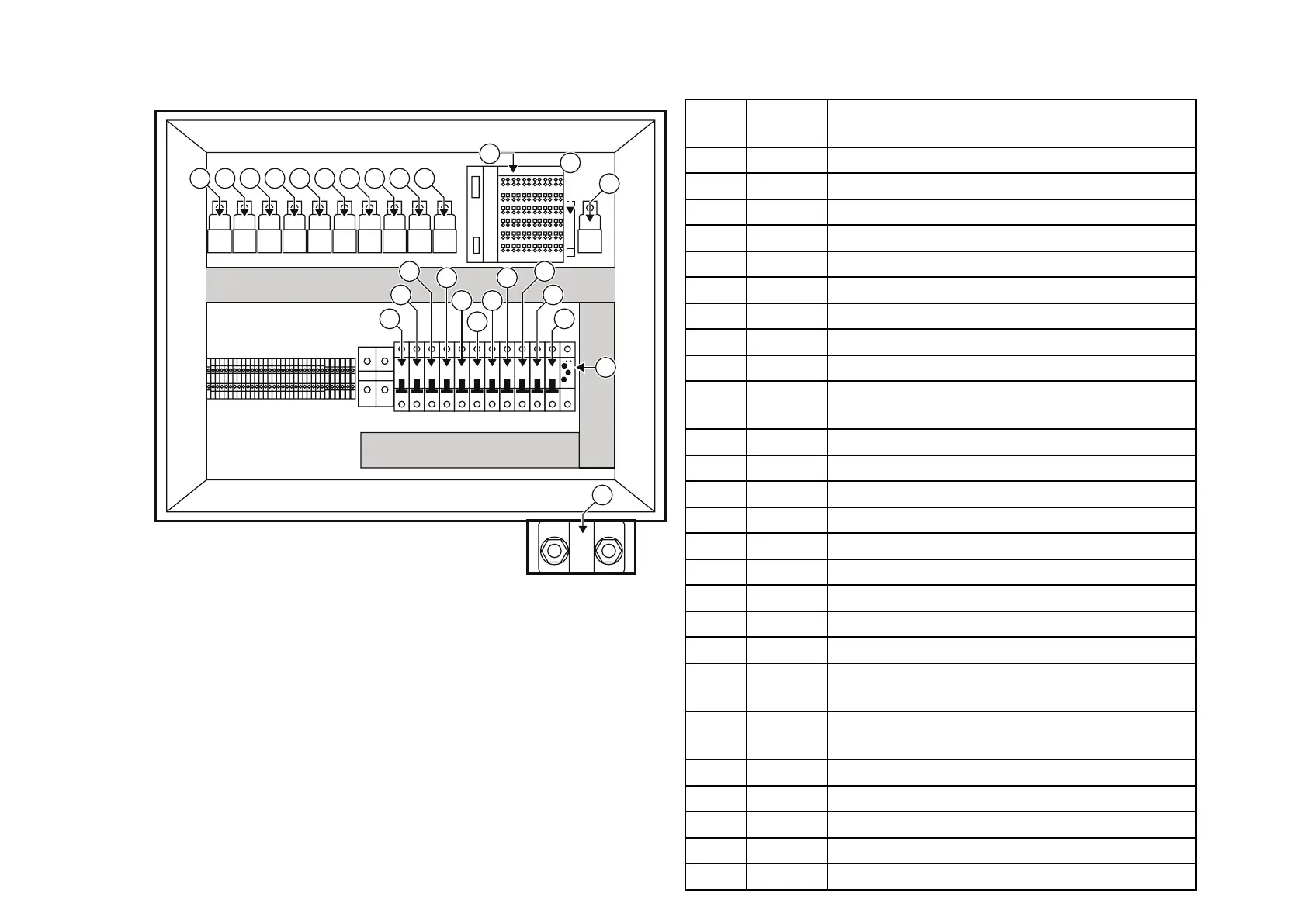

Control cabinet - AS3
11
12345678910
14
16
15
12
17
18
21
22
23
24
25
20
19
13
26
No. Inst.
no.:
Function:
1 K12 Relay, fuel pump
2 K13 Relay, fuel delay
3 K14 Relay, starter motor
4 K15 Relay, ignition
5 K16 Relay, headlight, roof
6 K17 Relay, fan, cab
7 K18 Relay, condenser, AC system
8 K19 Relay, fresh air fan
9 K20 Relay, Cab lighting
10 K21 Relay, radio mode PC, Radio, LCD, cam-
eras
11 PLC CanOpen module
12 K22 Relay, RPM diesel engine
13 K23 12/24 UNIT AS4
14 F30 Fuse, main fuse for 12V system
15 F31 Fuse, headlight, roof
16 F32 Fuse for control relay
17 F33 Fuse, fan cab, condenser AC
18 F34 Fuse, fresh air fan
19 F35 Fuse, cab lighting
20 F36 Fuel pump, fuel delay,
starter motor, ignition
21 F37 Fuse, radio mode PC, radio, LCD, cam-
eras
22 F38 Fuse, emergency stop switch
23 F39 Fuse, PC, Stereo
24 F40 Fuse, 12/24 VDC unit AS4
25 K24 Delay relay, diesel engine
26 K25 Emergency stop switch
