5.1.5.3.1 Installing a Shielded Ethernet Connector
Procedure

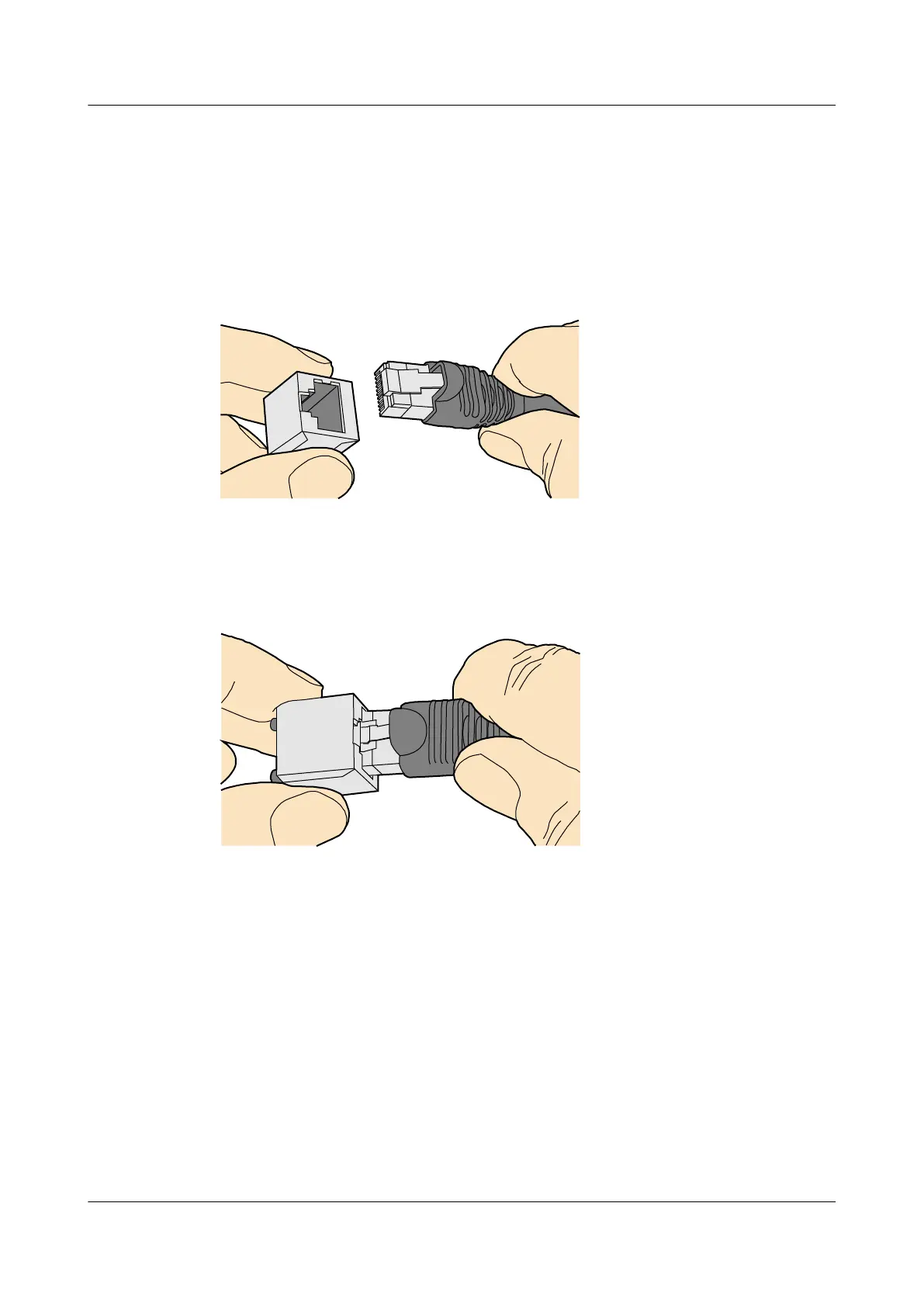

Step 1 Hold the male and female connectors, with the male connector facing the female connector, as
shown in Figure 5-123.
Figure 5-123 Holding the male and female shielded connectors
Step 2 Insert the male connector into the female connector, as shown in Figure 5-124.
Figure 5-124 Feeding the male shielded connector into the female shielded connector
Step 3 When you hear a click, the cable connector is completely inserted in the port. (The clip on the
cable connector pops up to fix the connector in the port.) Pull the connector slightly and
ensure that it is securely connected, as shown in Figure 5-125.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
103
