Step 11 To complete the assembly of the other end, repeat steps 1 to 10.
----End
5.1.3.2 Assembling an Optimized Shielded RJ45 Connector and SFTP Network
Cables
Context
This topic describes how to assemble an optimized shielded RJ45 connector with a Secure
File Transfer Protocol (SFTP) straight-through network cable as an example. The connector
has a cable support rack but does not have a metal jacket. Such a connector can be used for
crimping CAT. 6 network cables.

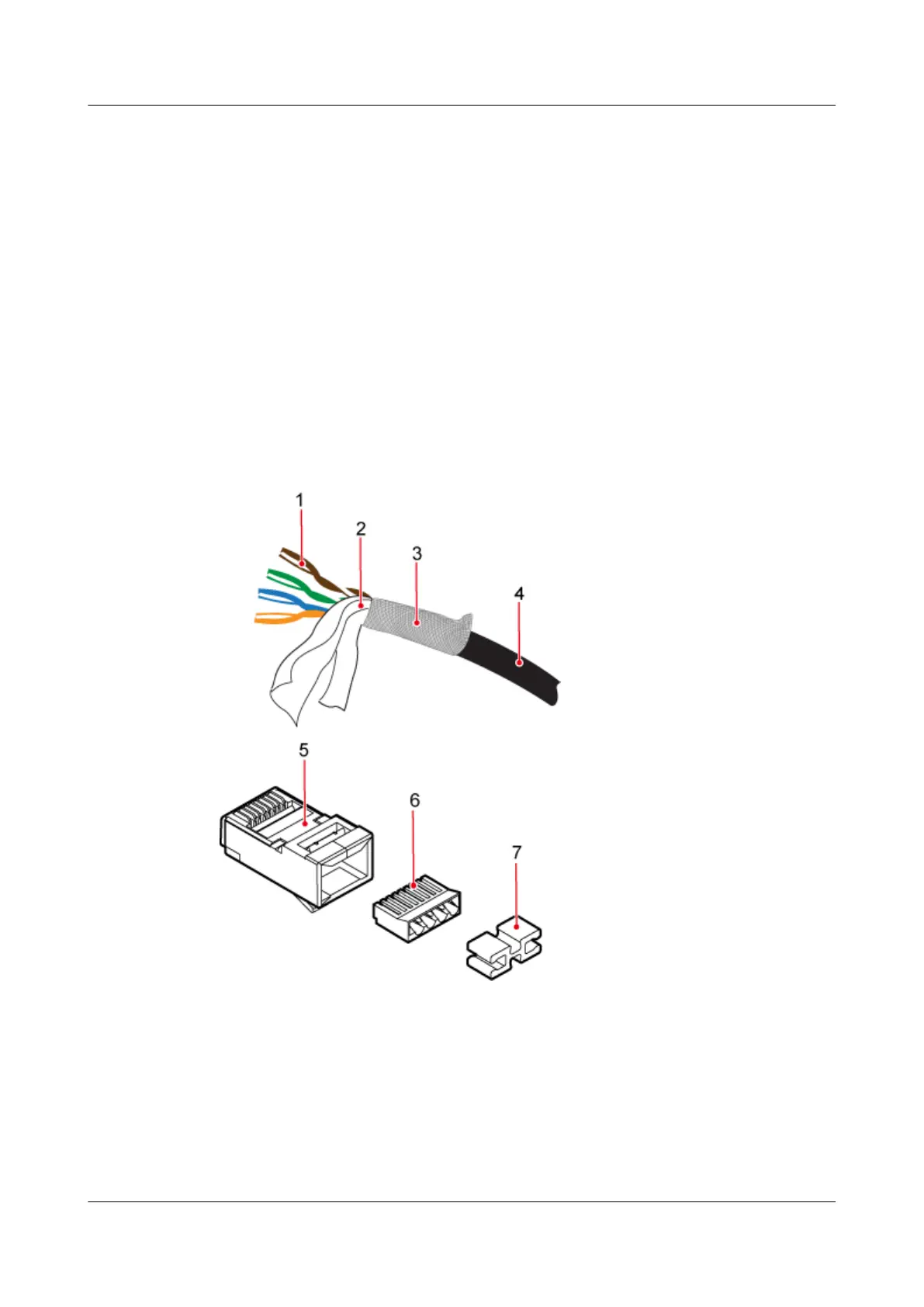

Figure 5-49 shows the shielded RJ45 connector.
Figure 5-49 Shielded RJ45 connector
1: Core
wires
2: Aluminum foil 3: Braid
shield
4: Outer
jacket
5: RJ45
connector
6: Load bar 7: Cable support
rack
Procedure
Step 1 Strip 20 mm outer jacket off the network cable, peel off the braid shield backward, and cut off
the aluminum foil and protection band, as shown in Figure 5-50.
