5.1.3.4 Assembling a Shielded RJ45 Connector and an FTP Network Cable
Context
This topic describes how to assemble a shielded RJ45 connector and File Transfer Protocol
(FTP) network cable and related notes.

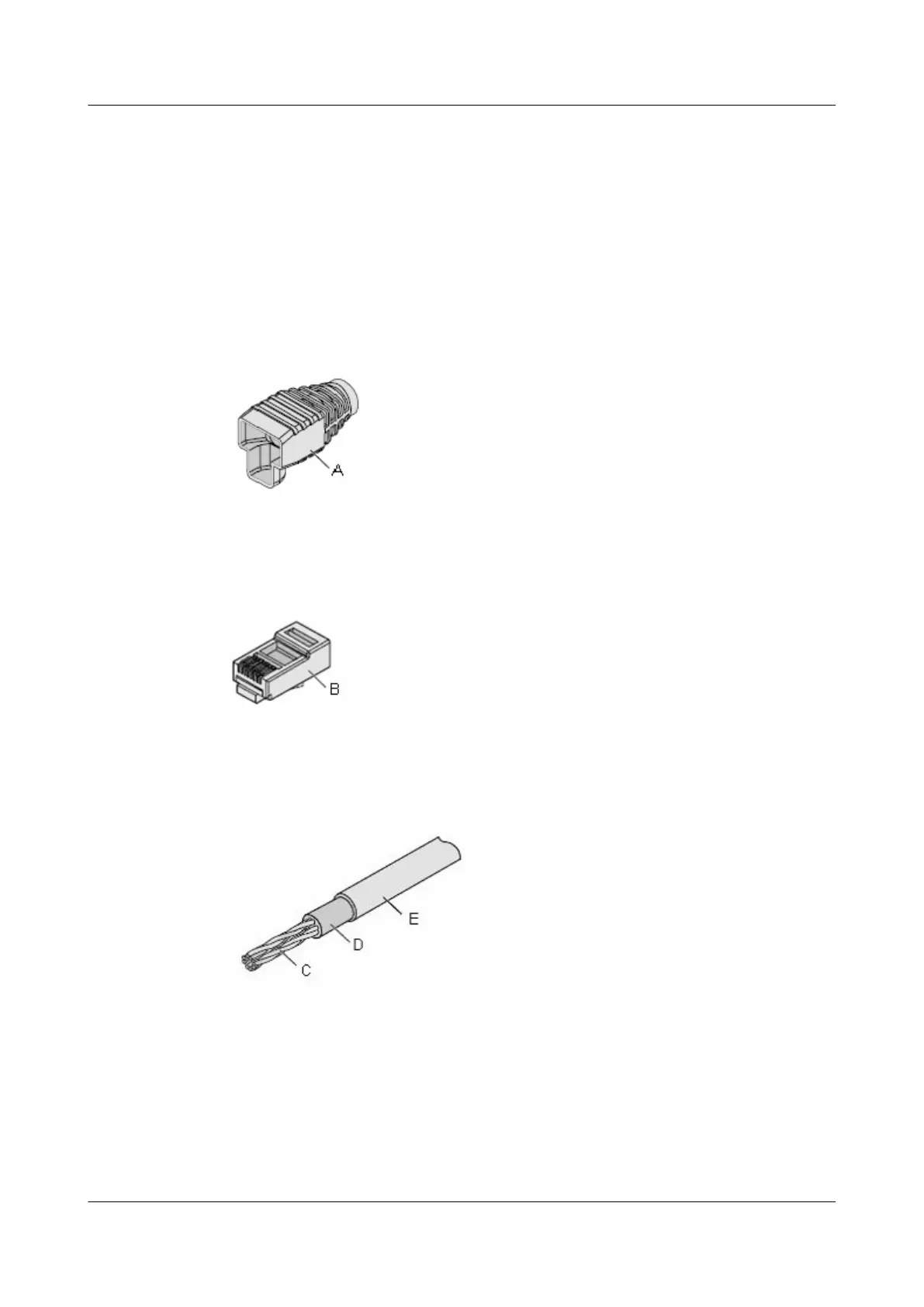

Figure 5-64 shows the shielded RJ45 connector.
Figure 5-63 Connector jacket
Figure 5-64 Shielded RJ45 connector
Figure 5-65 Cable
A: Connector
jacket
B: Connector C: Core wires of the
twisted pair
D: Aluminum foil used as the
network cable shield
E: Network cable
jacket
Procedure
Step 1 Route the network cable through the connector jacket, as shown in Figure 5-66.
