Step 5 Push the heat shrink tubing toward the connector until the tube covers the crimped part, and
then use a heat gun to heat the tube, as shown in Figure 5-31.

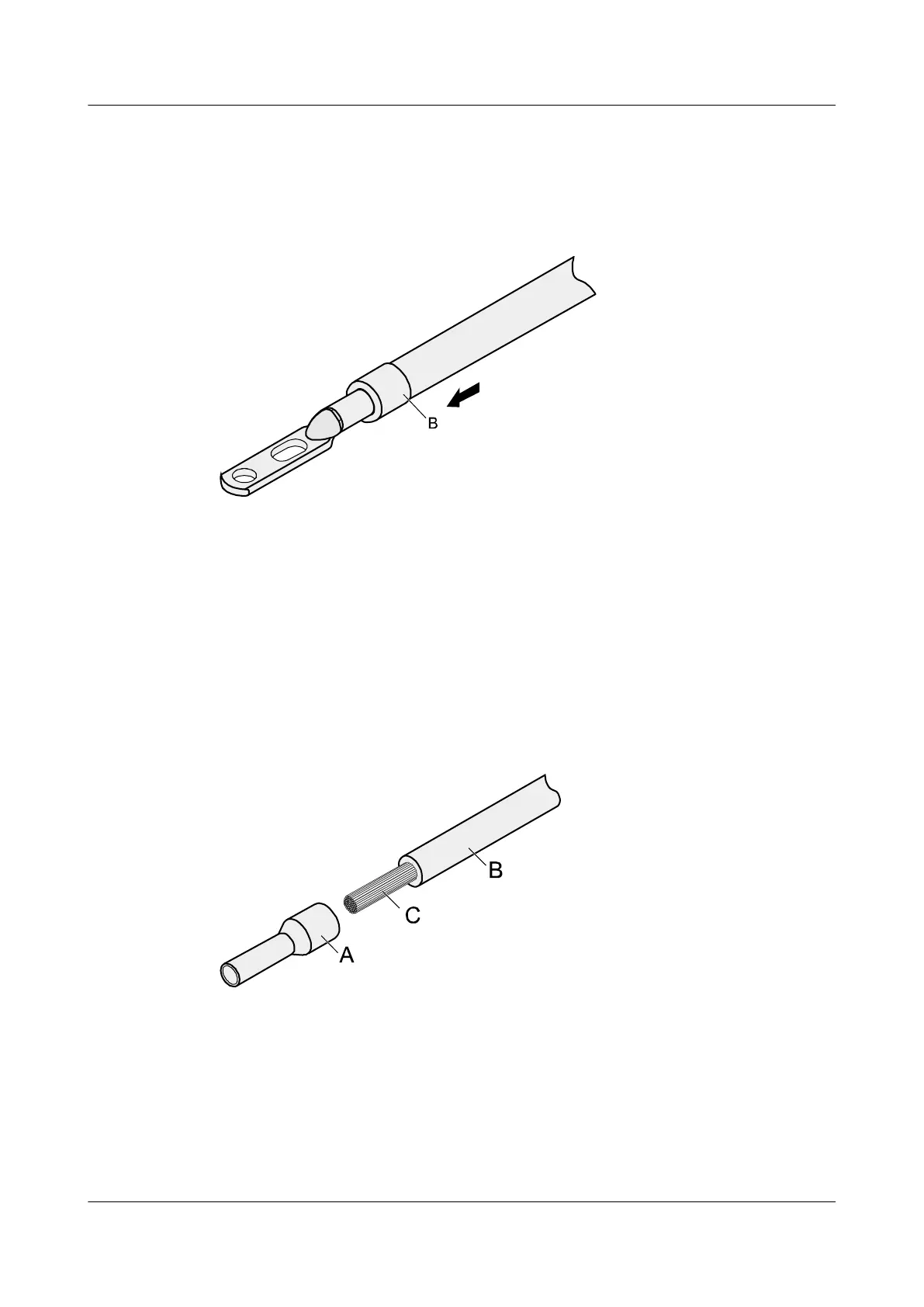

Figure 5-31 Heating the heat shrink tubing (JG terminal)
----End
5.1.2.5 Assembling the Cord End Terminal and the Power Cable
Context
Figure 5-32 shows the components of a cord end terminal and a power cable.
Figure 5-32 Components of a cord end terminal and a power cable
A. Cord end terminal B. Insulation layer of a power cable C. Conductor of a power cable
Procedure
Step 1 Strip a part of the insulation to expose the cable conductor with a length of L1, as shown in
Figure 5-33. The recommended values of L1 are listed in Table 5-4.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
53
