Huawei AP4050DN-E - Assembling a Straight Male Coaxial N Connector and an RG8 U Feeder

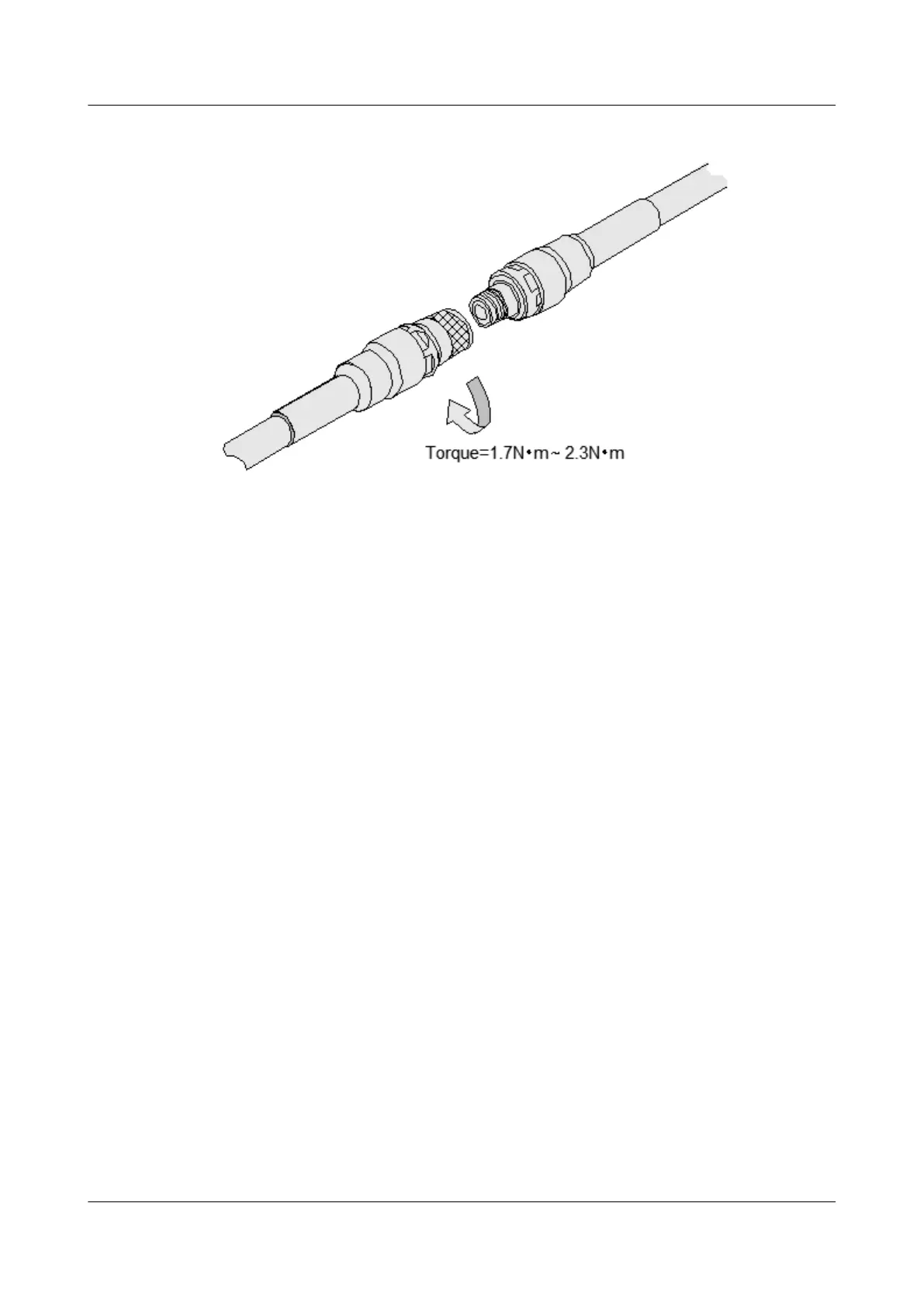

Figure 5-95 Installing the connector
----End
5.1.4.2 Assembling a Straight Male Coaxial N Connector and an RG8U Feeder
Context
Figure 5-96 shows the coaxial N connector and RG8U feeder.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
88
