NOTICE
l Ensure that the exposed section of the terminal is less than 2 mm (0.079 in.) in length.
l Do not press the insulation of the terminal.
l Insert only one terminal into one jack.
Step 3 Move the cable slightly and ensure that it is securely connected.
Step 4 Before you remove a cord end terminal, loosen the screw counterclockwise.
----End
5.1.5.2.3 Installing a 2-Pin Round Connector and a DC Power Cable
This topic describes how to install a 2-pin round connector and a DC power cable and related
notes.
Context

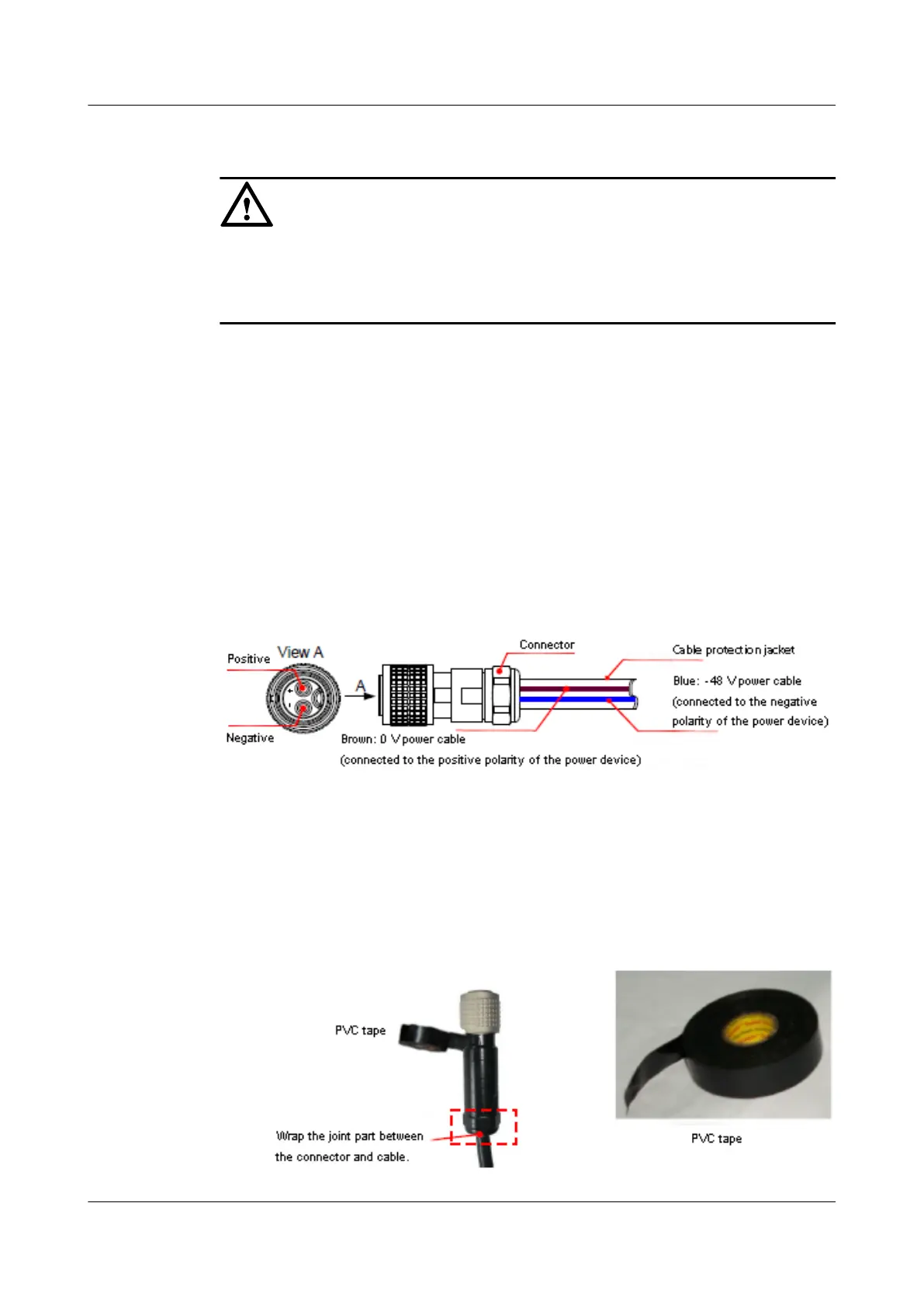

Figure 5-116 shows the 2-pin round connector with a DC power cable.
Figure 5-116 2-pin round connector and a DC power cable
Procedure
Step 1 Waterproof cables to be connected.
1. Wrap a layer of PVC tape, as shown in Figure 5-117.
Figure 5-117 Wrapping the PVC tape
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
99
