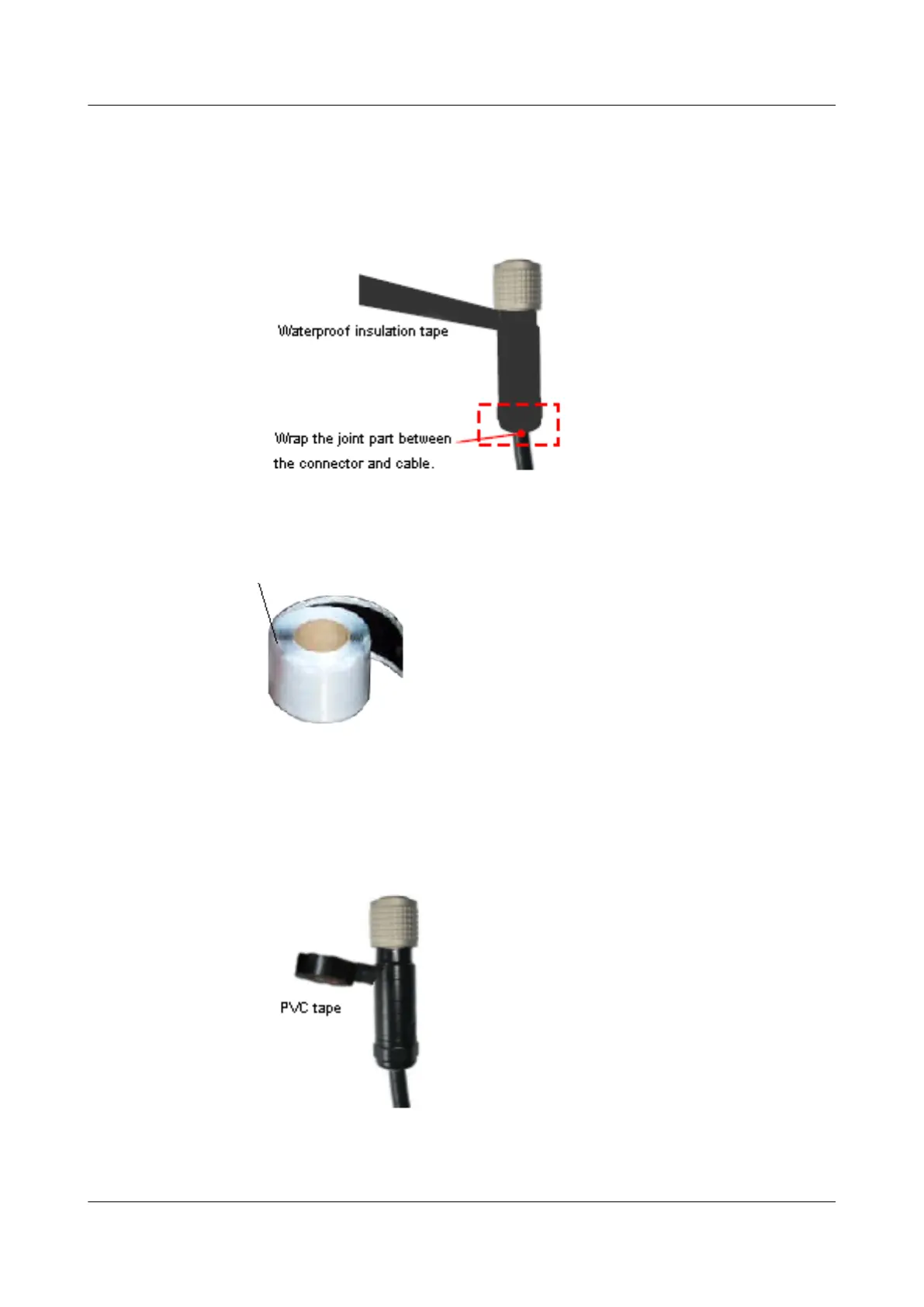

2. Wrap three layers of insulation tape, as shown in Figure 5-118.
Figure 5-118 Wrapping three layers of the waterproof insulation tape
Figure 5-119 Waterproof insulation tape
3. Wrap three layers of the PVC tape around the waterproof insulation tape, as shown in
Figure 5-120.
Figure 5-120 Wrapping three layers of the PVC tape
