Huawei AP4050DN-E - Installing an Unshielded Ethernet Connector

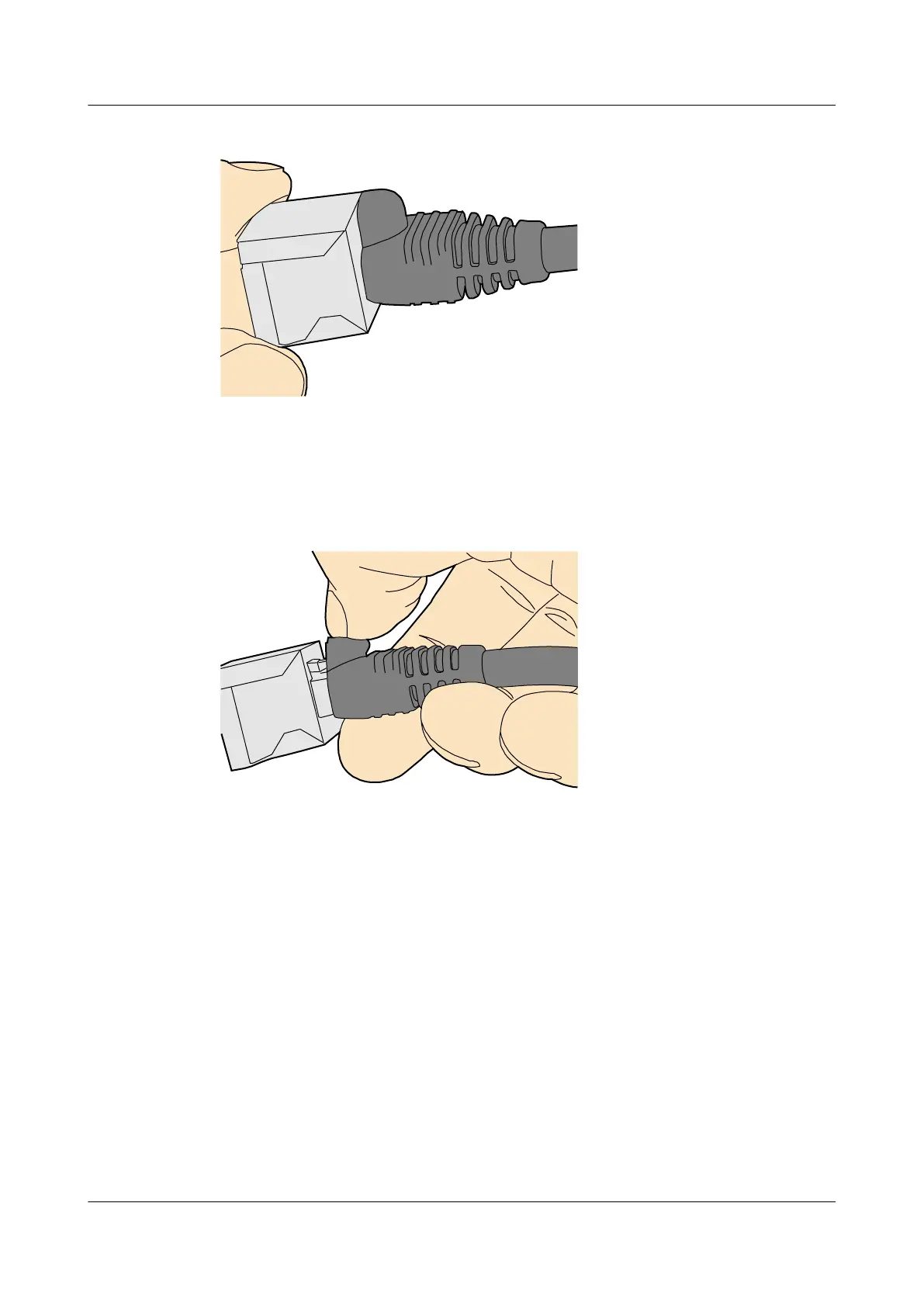

Figure 5-125 Installed shielded Ethernet connector
Step 4 To remove an Ethernet connector, press the locking key and pull out the connector, as shown
in Figure 5-126.
Figure 5-126 Removing a shielded Ethernet connector
----End
5.1.5.3.2 Installing an Unshielded Ethernet Connector
Procedure
Step 1 Hold the male and female connectors, with the male connector facing the female connector, as
shown in Figure 5-127.
