NOTICE
If the two terminals are different sizes, place the smaller one above the bigger one. A
maximum of two terminals can be installed on a post.
l To remove an OT terminal, loosen the screw counterclockwise.
----End
5.1.5.2.2 Installing the Cord End Terminal
Procedure
Step 1 Hold a cord end terminal upright and place it on a terminal jack, as shown in Figure 5-114. To
ensure bump contact and dense connection, place the plain side of the terminal outwards.

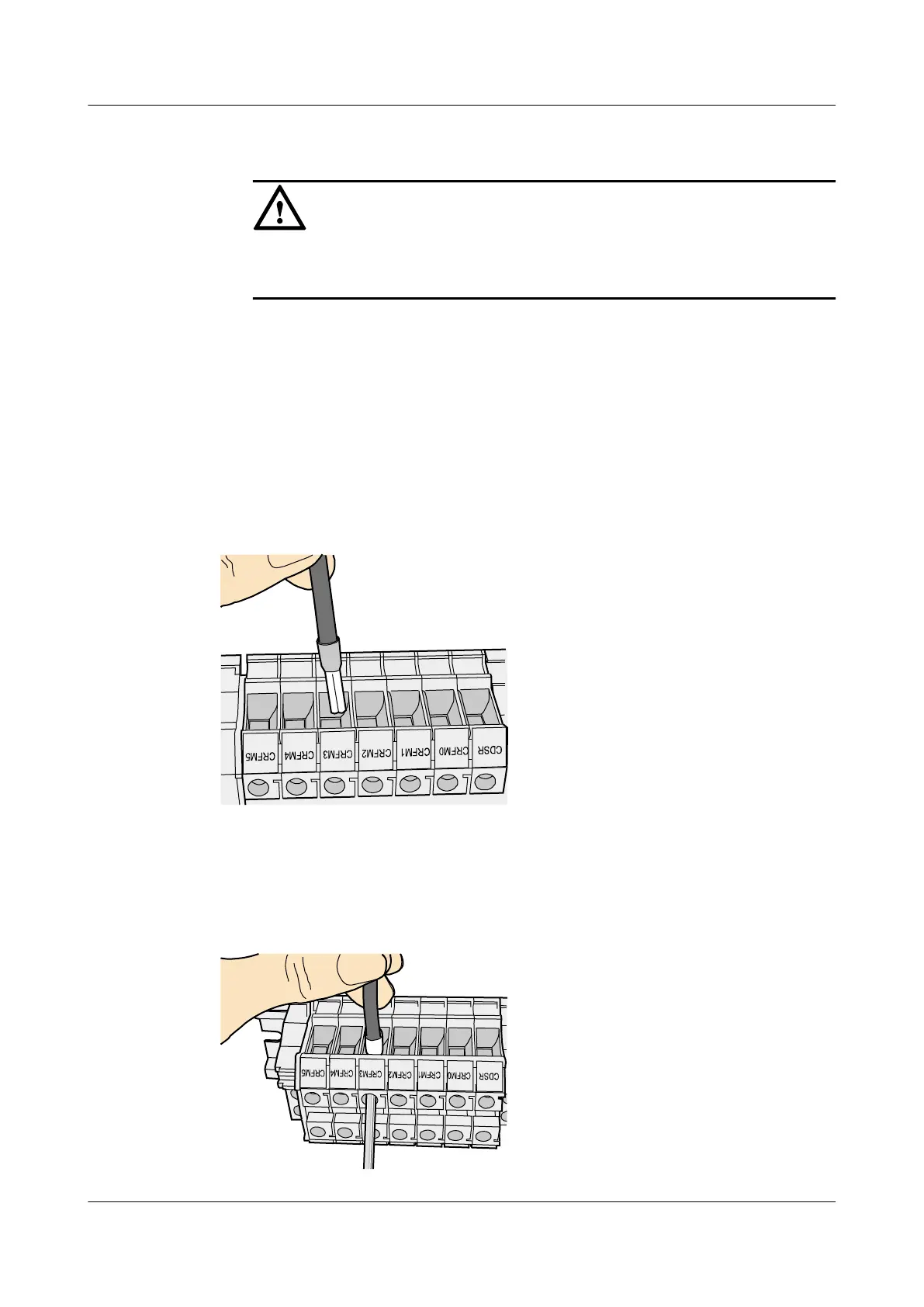

Figure 5-114 Placing a terminal on a terminal jack vertically
Step 2 Insert the terminal into the jack vertically, and turn the screw clockwise to fasten the terminal,
as shown in Figure 5-115.
Figure 5-115 Feeding the terminal into the jack
