Cross-Sectional Area of Tubular
Terminal (mm
2
(in.
2
))
Maximum Width of Crimped Terminal
W1 (mm(in.))
10 (0.015) 5.3 (0.21)
16 (0.025) 6 (0.24)
25 (0.039) 8.7 (0.34)
35 (0.054) 10 (0.39)
----End
5.1.3 Assembling Ethernet Cables
5.1.3.1 Assembling the Shielded RJ45 Connector and Ethernet Cable
Context
Figure 5-36 shows the components of an RJ45 connector and a shielded Ethernet cable.

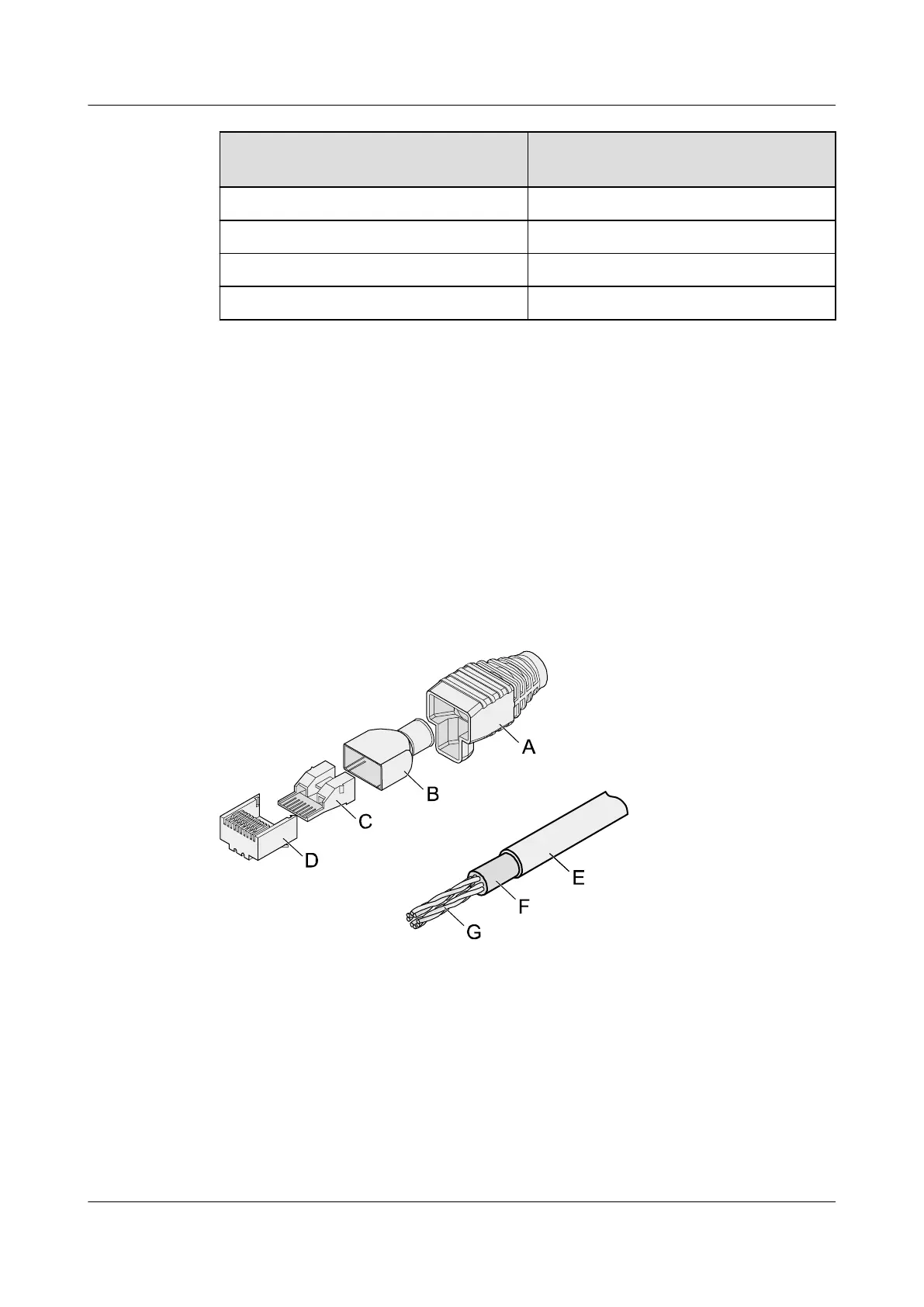

Figure 5-36 Shielded RJ45 connector and cable
A. Jacket of connector B. Metal shell of connector C. Wire holder of
connector
D. Plug of connector
E. Jacket of Ethernet cable F. Shield layer of Ethernet
cable
G. Twisted-pair wires -
Procedure
Step 1 Fit the jacket of the connector onto the Ethernet cable, as shown in Figure 5-37.
