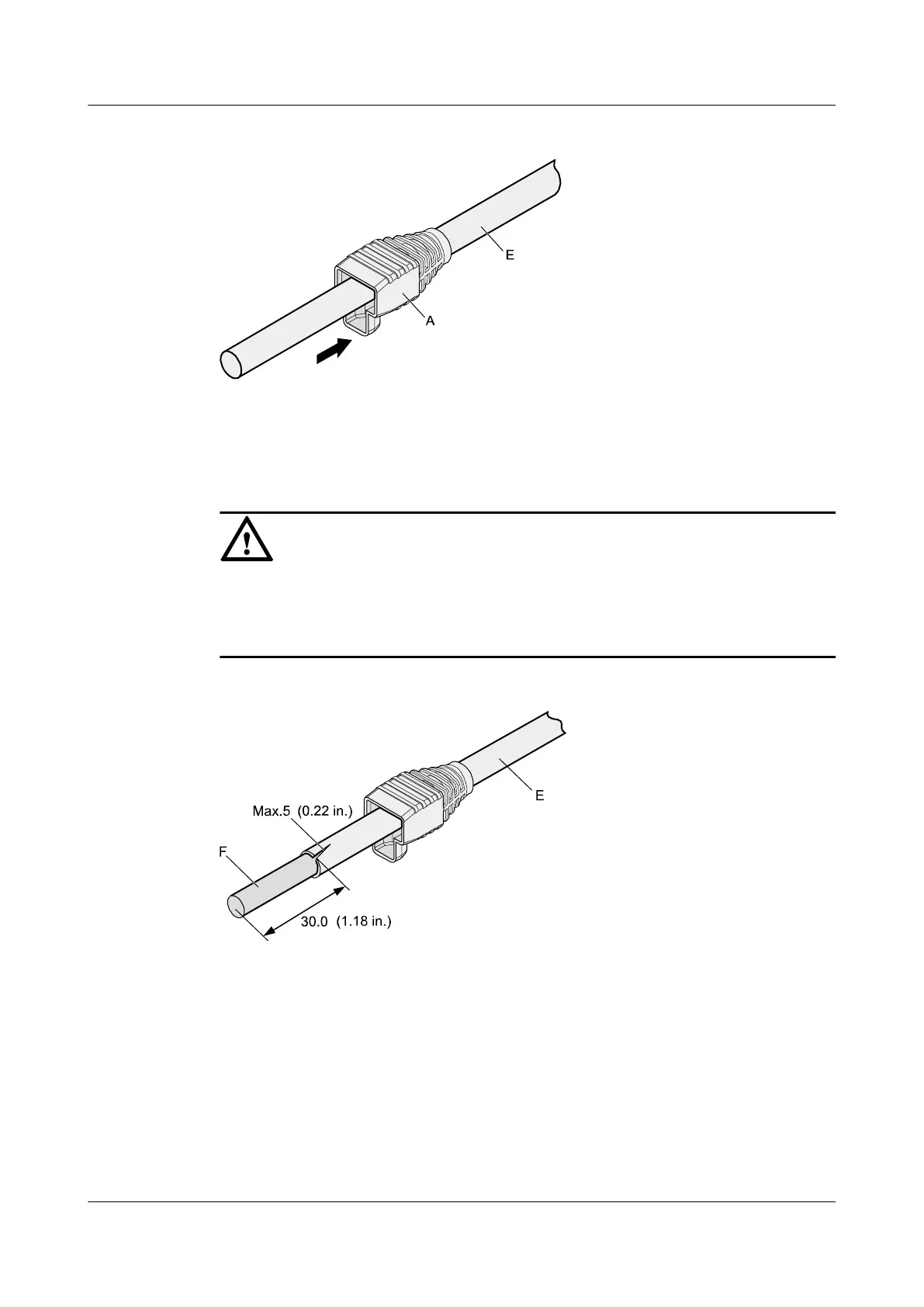

Figure 5-37 Fitting the jacket of the connector onto the Ethernet cable
Step 2 Remove a 30 mm (1.18 in.) long section of the jacket, cut off the nylon twine inside the
jacket, and cut a no more than 5 mm (0.20 in.) cleft in the jacket, as shown in Figure 5-38.
NOTICE
l When you remove a section of the jacket, do not damage the shield layer of the twisted-
pair cable.
l When you remove the shield layer, do not damage the insulation of the twisted-pair cable.
Figure 5-38 Removing the jacket of a twisted-pair cable (unit: mm (in.))
Step 3 Fit the metal shell onto the twisted-pair cable. The shield layer is covered by the metal shell,
as shown in Figure 5-39.
