Figure 5-140 Installed SC fiber connector
Step 4 To disassemble an SC fiber connector, hold the shell of the connector (do not hold the fiber)
and gently pull the connector in the direction vertical to the adapter. Unlock the male
connector, and then separate it from the shell, as shown in Figure 5-141.

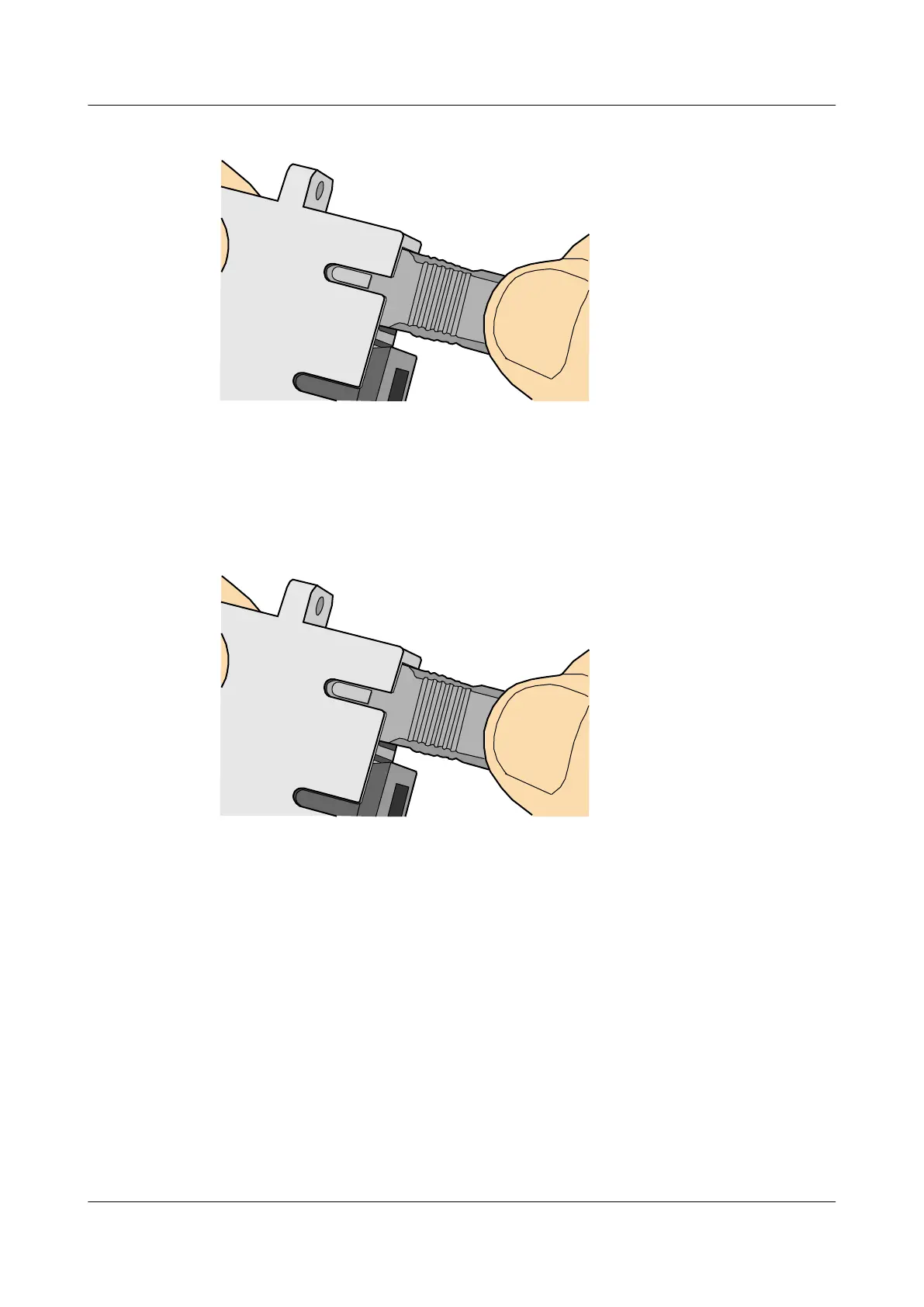

Figure 5-141 Disassembling an SC fiber connector
----End
5.1.5.4.5 Installing an MPO Connector
Procedure
Step 1 Remove the dustproof cap of the MPO fiber connector and store it for future use.
Step 2 Align the core pin of the male connector with that of the female connector, as shown in
Figure 5-142.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
111
