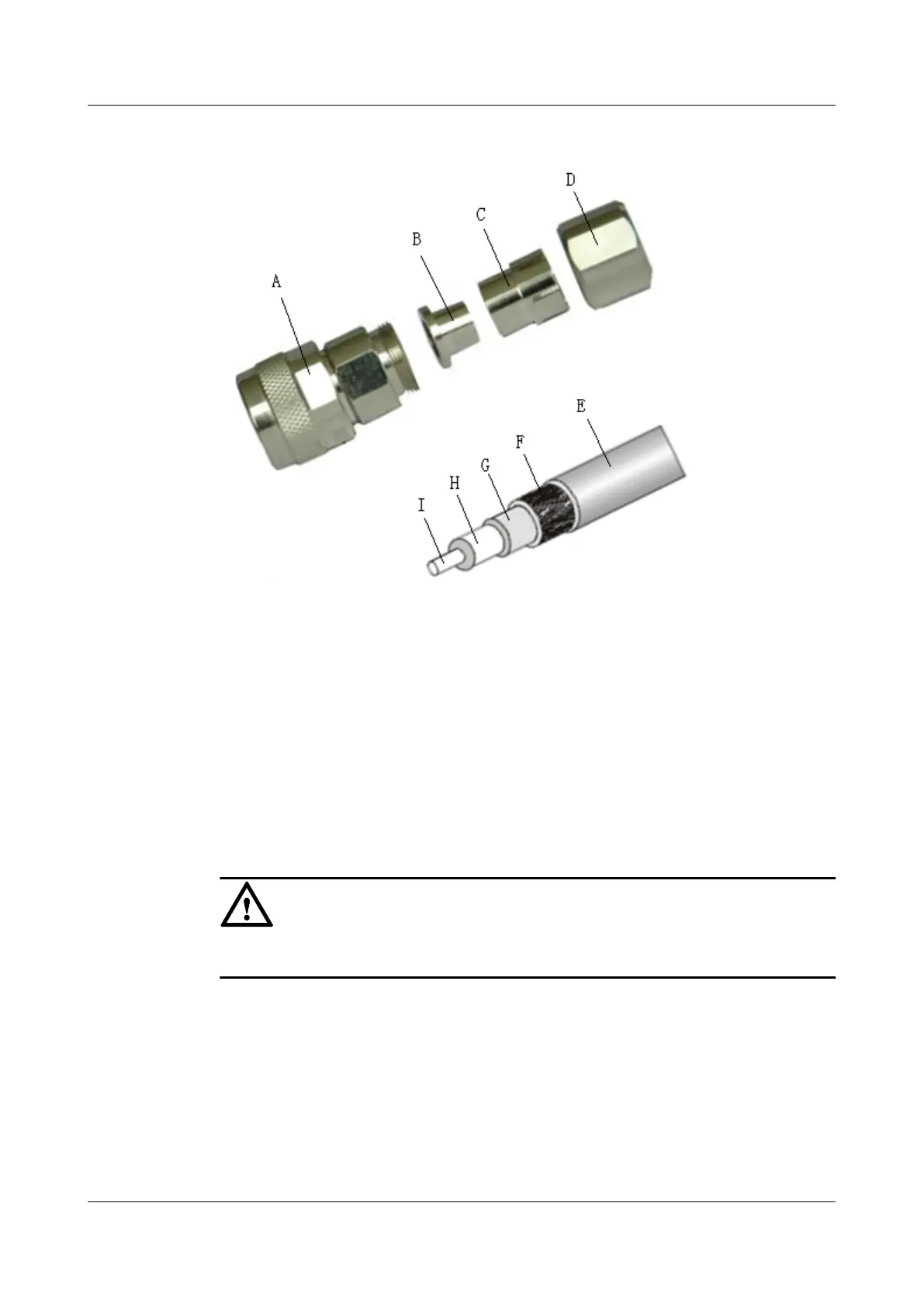

Figure 5-96 Coaxial N connector and RG8U feeder
A: Connector body B: Lining C: Clip D: Nut
E: Cable jacket F: Shielded layer of the
feeder
G: Aluminum foil of the
feeder
H: Insulation medium of
the feeder
I: Internal conductor of the
feeder
- - -
Procedure
Step 1 Strip the feeder with the length shown in Figure 5-97.
NOTICE
Ensure that the shielded layer F is intact after the stripping.
