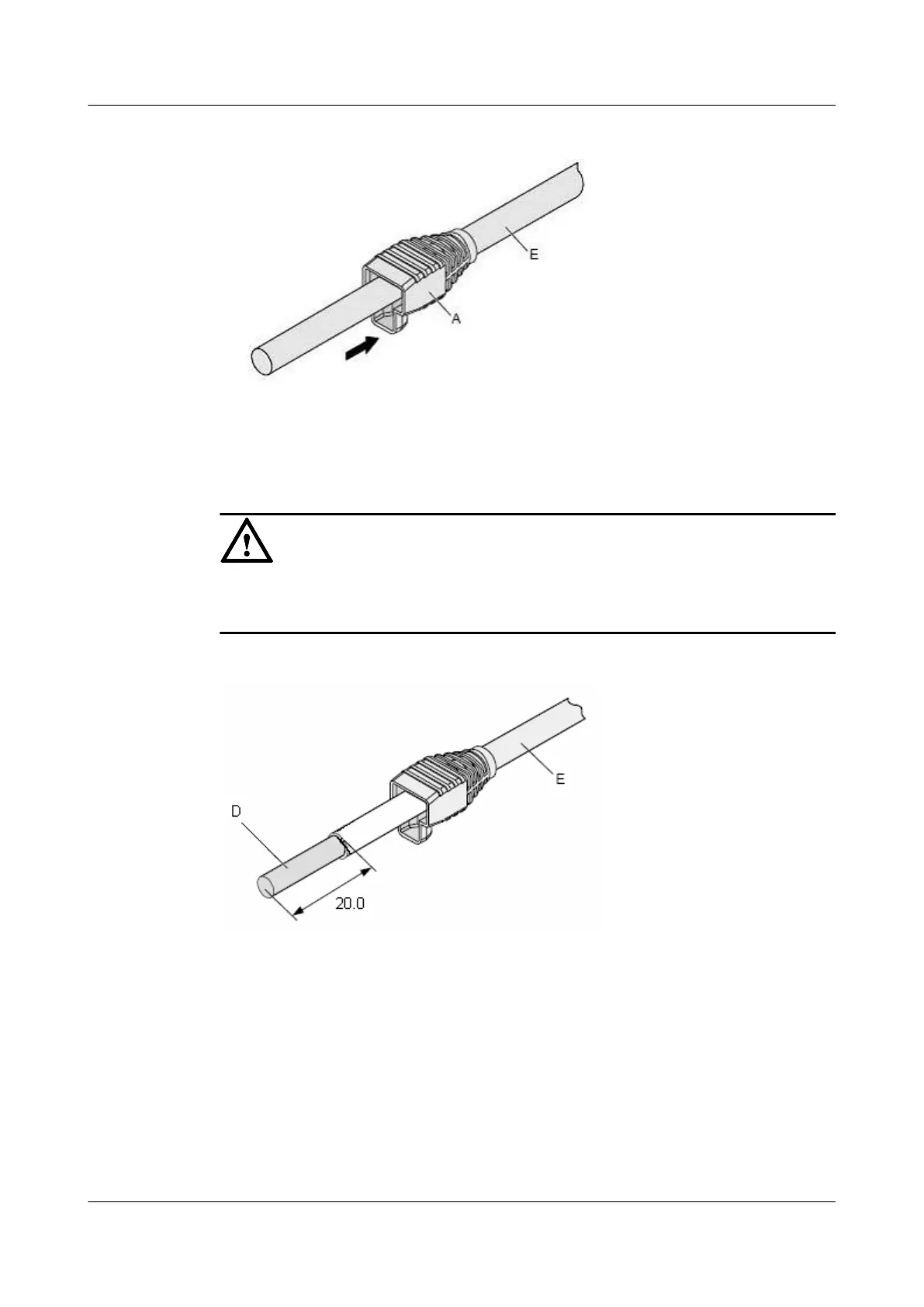

Figure 5-66 Routing the network cable through the connector jacket
Step 2 Strip 20 mm outer jacket off the cable and cut off the nylon layer inside the jacket, as shown
in Figure 5-67.
NOTICE
Ensure that the aluminum foil used as a shielded layer is intact when stripping outer jackets
off the twisted pair cable.
Figure 5-67 Stripping the outer jacket
Step 3 Pull outward the shielded aluminum foil and cut off the PET membrane and ground cables
along the end face of the outer jacket, as shown in Figure 5-68.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
71
