1.7 N•m
ST3.5
4. Connect the cables. For details, see 2.7 Cable Connection.

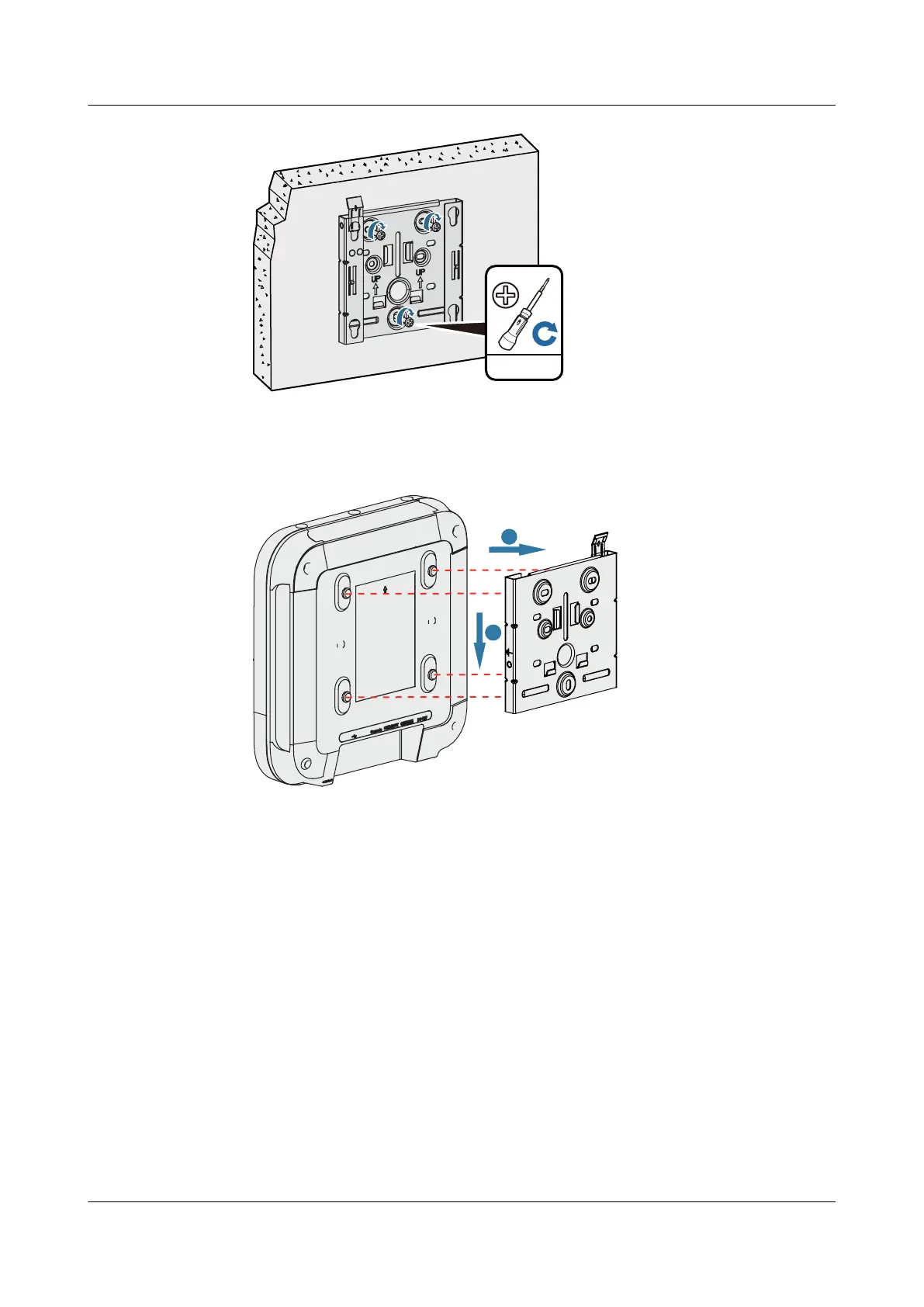

5. Align the rubber feet of the device over the mounting slots on the mounting bracket and
vertically push the AP to secure it. When the spring clip is popped up, push the AP
downward until it snaps into place (you can hear a click).
a
b
AP4050DN-E
Hardware Installation and Maintenance Guide
2 AP Installation
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
