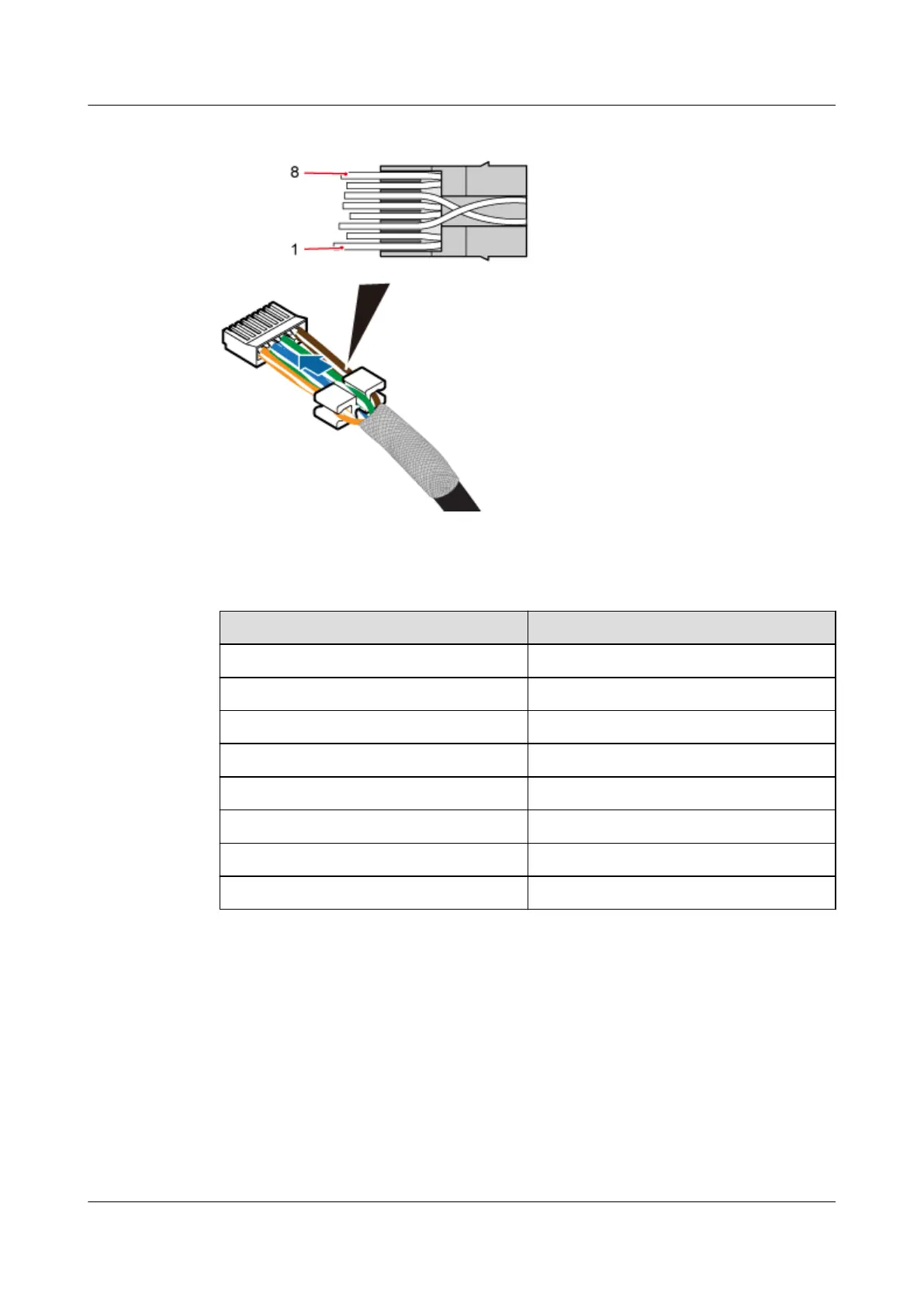

Figure 5-52 Routing the core wires through the load bar
Table 5-7 Mapping between core wires and pins
Pin ID
Core Wire Color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Step 4 After routing core wires through the load bar, move the load bar to the bottom to connect to
the cable support rack, and neatly cut the edge cables, as shown in Figure 5-53.
