Huawei CX600-X2-M Series User Manual

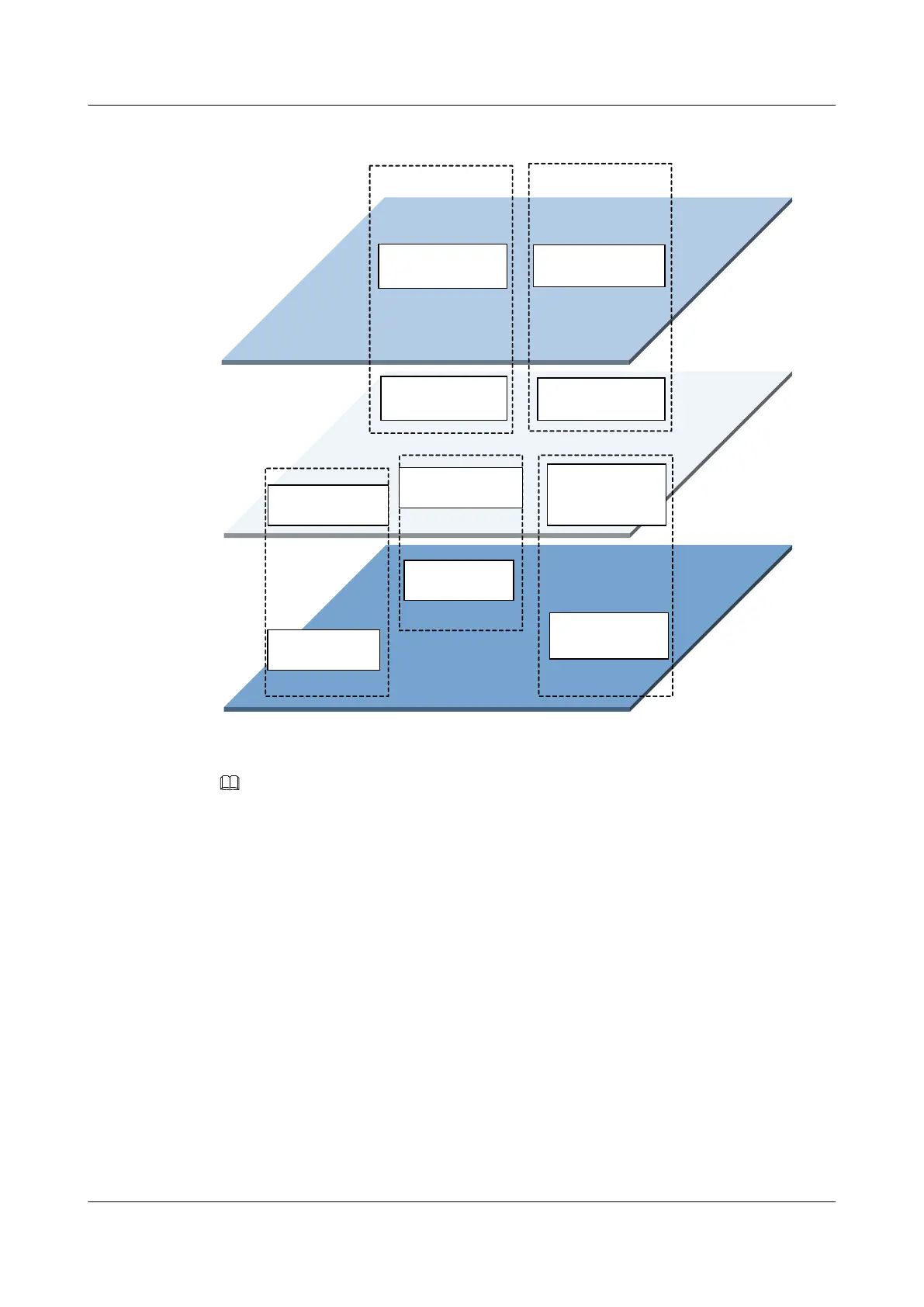

Figure 1-2 Diagram of the system architecture
Monitoring
plane
Control and
management
plane
Data
plane
MPU
NPU
PIC *N
Management
unit
NPU
Forwarding
unit
System
monitoring unit
MPU
Data channel
System
monitoring unit
System
monitoring unit
System
monitoring unit
Management
unit
PIC
management
unit
Forwarding
unit
NOTE
CX600-X2-M8/M16 has two NPU boards, and CX600-X1-M4 has only one NPU board.
Main System Features
The main features of the system include:
l NP-based forwarding which enables fast service deployment
l Compact structure which increases the port density
l Separation of the control channels, service channels, and monitoring channels, which
ensures the connectivity of control channels and monitoring channels
l High-level carrier-class reliability and manageability
l Module-level shielding which meets Electro Magnetic Compatibility (EMC) requirements
l Hot-swappable boards, PSUs, and fan modules
l 1:1 backup of MPUs
l Backup for key parts such as PSUs, clocks, and management buses
l Protection against incorrect insertion of boards
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
1 CX600-X1-M4 Hardware Description
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
