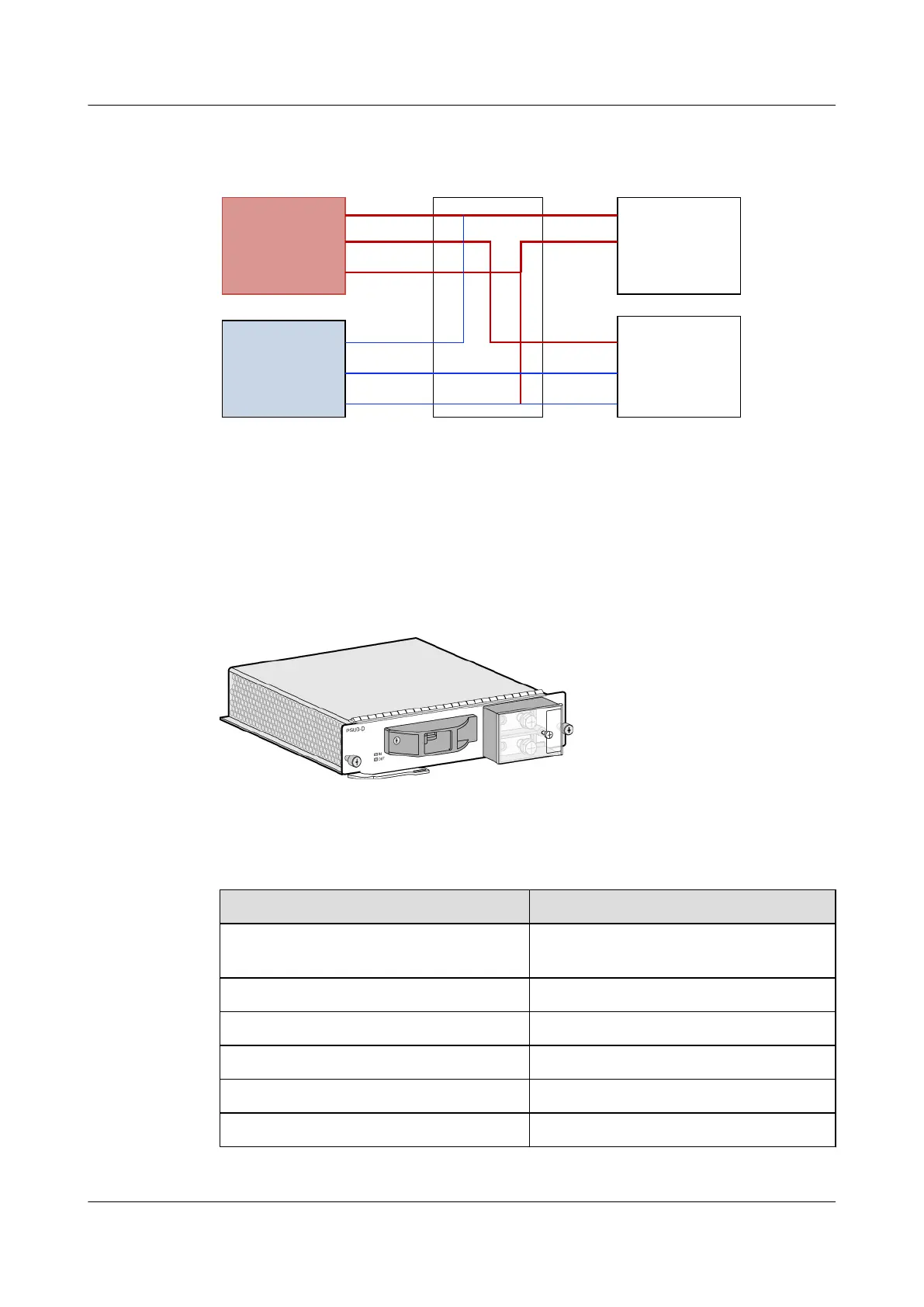

Figure 3-6 Diagram of the power supply architecture
PEM A
PEM B
FAN
MPU/NPU/PIC
48V-fan48V-A-fan
48V-B-fan 48V-A
48V-B
48V-A
48V-B
3.3V-A
3.3V-B 3.3V
Backplane
3.3V
3.2.3 DC Power Supply System
The device adopts two PSUs, which work in 1+1 backup mode, for power supply. Figure 3-7
shows the outline of a PSU.
Figure 3-7 Outline of a PSU
Table 3-7 Specifications of the PSUs
Item Specification
Dimensions (H x W x D) 40 mm x 194 mm x 226 mm (1.57 in. x 7.64
in. x 8.90 in.)
Weight 1.5 kg (3.31 lb)
Rated voltage -48 V DC to -60 V DC
Input voltage range -38 V DC to -72 V DC
Maximum input current 34 A
Maximum output power 1600 W
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
3 CX600-X2-M16 Hardware Description
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
70
