2.1 Overview
The CX600-X2-M8 is a high-end network device developed by Huawei. This device is based
on the VRP and applies to the access, convergence, and transmission of Metro Ethernet services.
The CX600-X2-M8 has great capabilities in network access, Layer 2 switching, and EoMPLS
transmission, and supports a wide range of high-speed and low-speed interfaces. Hence, the
CX600-X2-M8 supports triple-play of voice, video, and data services and can bear 2G/3G/LTE
services simultaneously. The CX600-X2-M8 can be deployed together with Huawei NE, CX,
and ME series products to build a Metro Ethernet network with a clear hierarchy and offer
extensive services. This chapter provides an overview of the CX600-X2-M8 hardware.
2.1.1 System Overview
System Overview
Being equipped with a centralized routing engine and NP forwarding structure, the CX600-X2-
M8 has a great capacity and can provide extensive services.
The CX600-X2-M8 uses an integrated chassis that can be installed independently. The main
parts of the CX600-X2-M8 such as MPUs, NPUs, PICs, fan modules, and PSUs are hot-
swappable.
Figure 2-1 shows the outline of the CX600-X2-M8. The CX600-X2-M8 provides two slots for
NPUs and eight slots for PICs. The network process unit on the CX600-X2-M8 is NPU. All the
PICs perform data exchange through the NPU.
CX600-X2-M8s are classified into CX600-X2-M8 DCs and CX600-X2-M8 ACs.

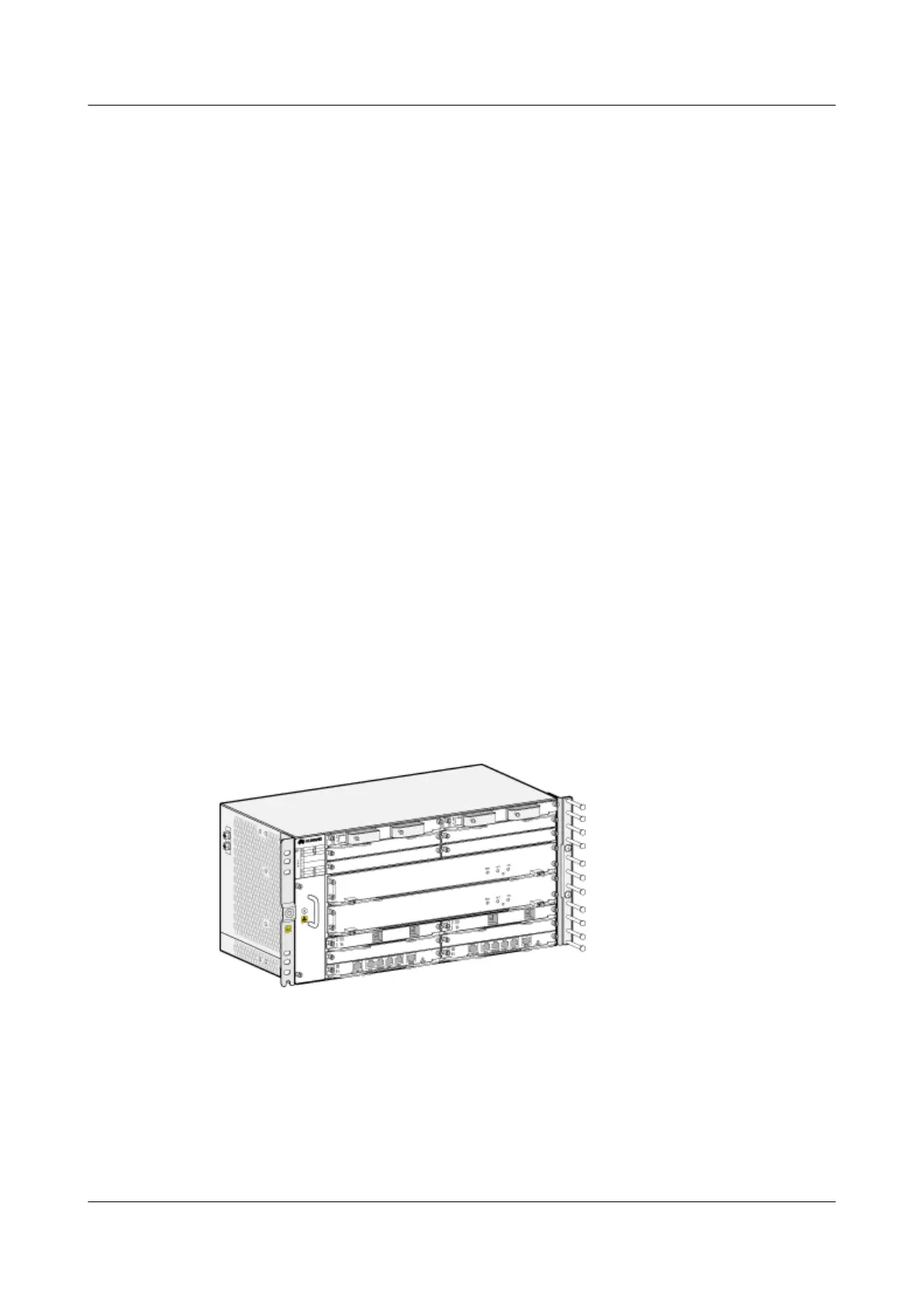

Figure 2-1 Outline of the CX600-X2-M8 DC
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
2 CX600-X2-M8 Hardware Description
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
29
