4.1 4-Port 10GBase LAN-SFP+ Physical Interface Card(PIC)
Overview

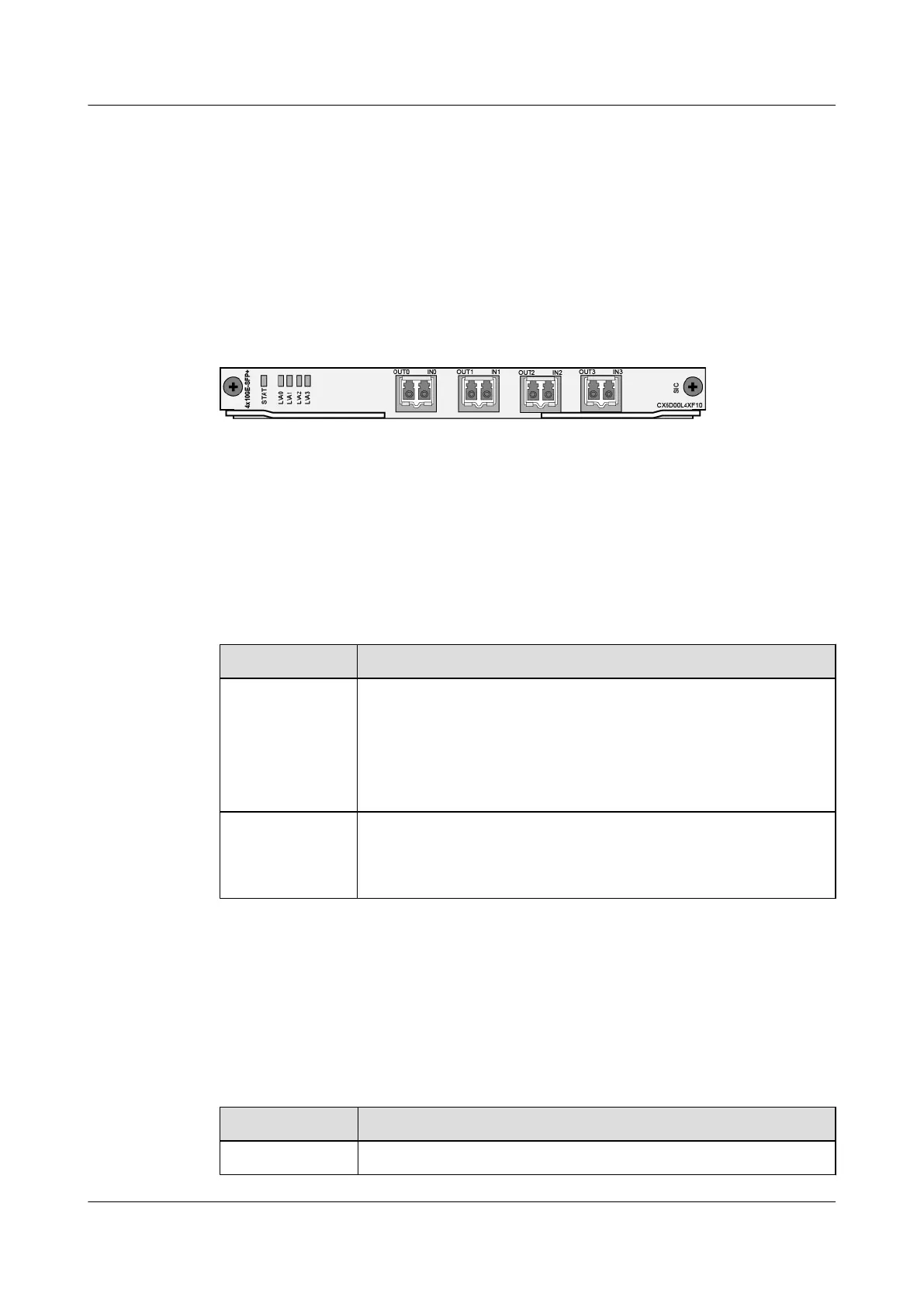

Figure 4-1 shows the appearance of the 4-Port 10GBase LAN-SFP+ Physical Interface Card
(PIC).
Figure 4-1 Appearance of the4-Port 10GBase LAN-SFP+ Physical Interface Card(PIC)
Panel Description
Table 4-1 lists the functions of the indicators on the 4-Port 10GBase LAN-SFP+ Physical
Interface Card(PIC).
Table 4-1 Functions of the indicators on the 4-Port 10GBase LAN-SFP+ Physical Interface Card
(PIC)
Indicator Description
STAT If the indicator is steady green, the PIC is working properly.
If the indicator is off, the PIC is powered off or is not registered.
If the indicator is steady red, the hardware on the PIC is faulty.
If the indicator is steady yellow, the PIC is installed in a slot for a HIC
and an alarm is reported or the PIC is not loaded with the logic.
LINK/ACT
(green)
If the indicator is steady on, the link is working properly.
If the indicator blinks, data is being transmitted.
If the indicator is off, the link is Down.
Interface Attributes
Table 4-2 lists the attributes of the interfaces on the 4-Port 10GBase LAN-SFP+ Physical
Interface Card(PIC).
Table 4-2 Attributes of the interfaces on the 4-Port 10GBase LAN-SFP+ Physical Interface Card
(PIC)
Attribute Description
Connector LC
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description 4 Boards
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
89
