4.13 8-Channel CWDM Multiplexing/Demultiplexing
(1471/1491/1511/1531/1551/1571/1591/1611nm) Physical
Interface Card(PIC)
Overview
Figure 4-13 shows the appearance of the 8-Channel CWDM Multiplexer/Demultiplexer
(1471/1491/1511/1531/1551/1571/1591/1611 nm) physical interface card(PIC).

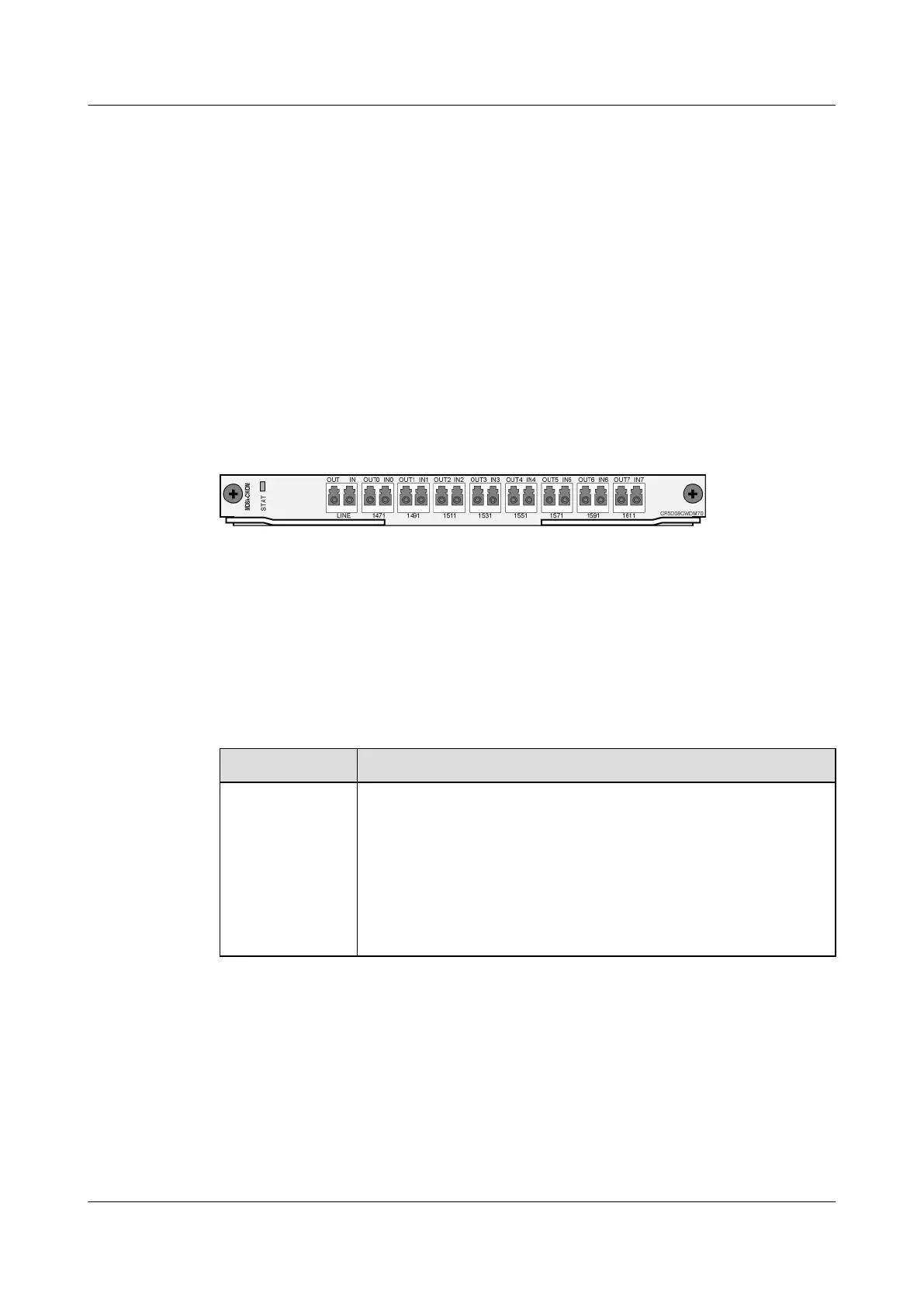

Figure 4-13 Appearance of the 8-Channel CWDM Multiplexer/Demultiplexer
(1471/1491/1511/1531/1551/1571/1591/1611 nm) physical interface card(PIC)
Panel Description
Table 4-65 lists the functions of the indicators on the 8-Channel CWDM Multiplexer/
Demultiplexer (1471/1491/1511/1531/1551/1571/1591/1611 nm) physical interface card(PIC).
Table 4-65 Functions of the indicators on the 8-Channel CWDM Multiplexer/Demultiplexer
(1471/1491/1511/1531/1551/1571/1591/1611 nm) physical interface card(PIC)
Indicator Description
STAT If the indicator is steady green, it indicates that the PIC works normally.
If the indicator is off, it indicates that the PIC is not powered on or is not
registered.
If the indicator is steady red, it indicates that the hardware on the PIC is
faulty.
If the indicator is steady yellow, it indicates that logic is not loaded to
the PIC.
Interface Attributes
Table 4-66 lists the attributes of the interfaces on the 8-Channel CWDM Multiplexer/
Demultiplexer (1471/1491/1511/1531/1551/1571/1591/1611 nm) physical interface card(PIC).
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
4 Boards
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
129
