l Queries about alarm prompts, alarm indications, running status, and alarm status of PSUs
l Queries about alarm prompts, alarm indications, running status, and alarm status of the
voltage and ambient temperature
1.1.2 Main Components and Slot Layout
Main Components
The CX600-X1-M4 has an integrated chassis with main parts that all support hot swapping.

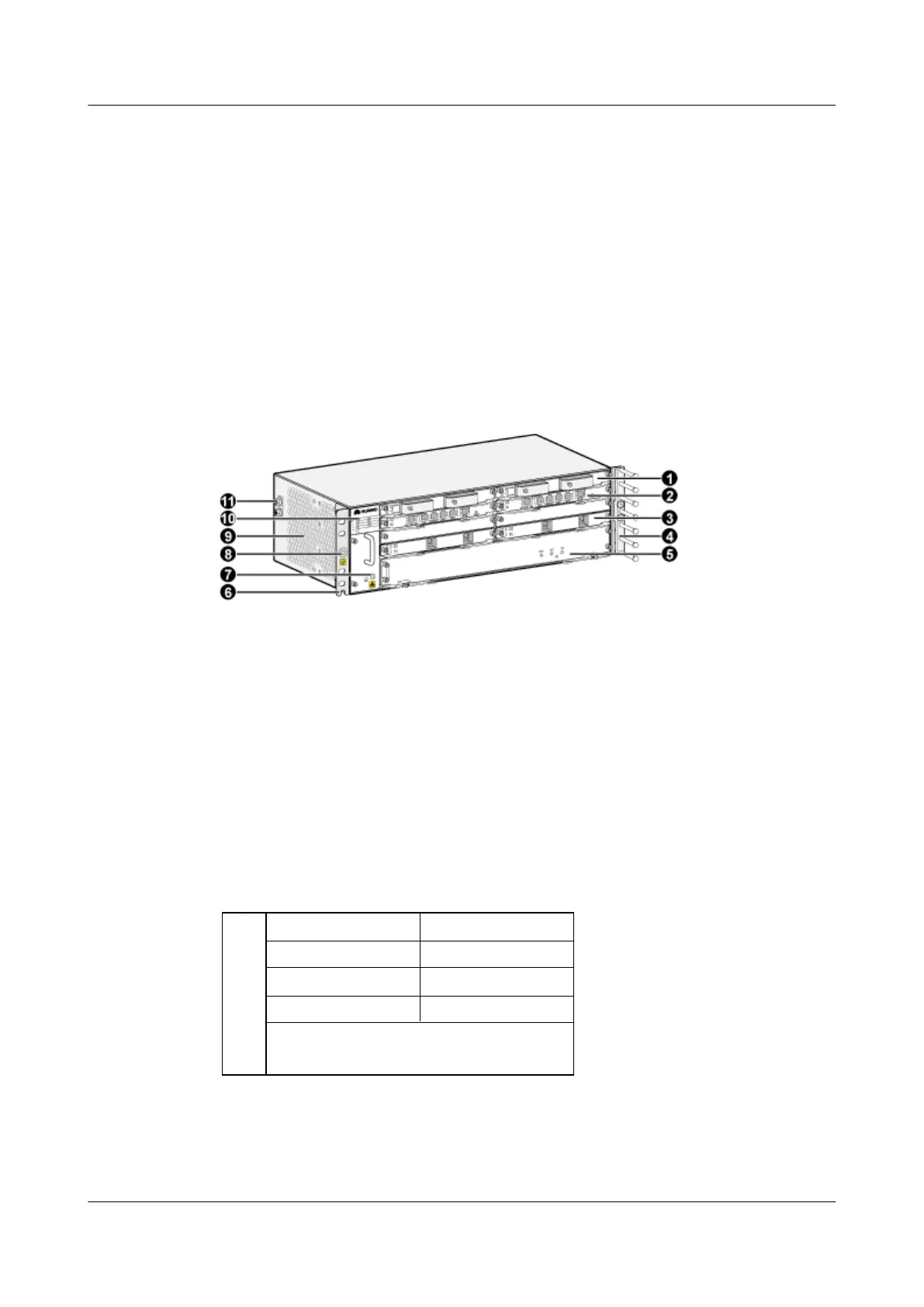

Figure 1-3 shows the outline and parts of the CX600-X1-M4.
Figure 1-3 Outline and parts of the CX600-X1-M4
1. PSU
2. MPU 3. PIC 4. Cable tray
5. NPU 6. Rack-mounting ear 7. ESD jack 8. Grounding Terminal
9. Air intake vent 10. Fan module 11. Grounding Terminal
Slot Layout
Figure 1-4 shows the slot layout of the CX600-X1-M4.
Figure 1-4 Slot layout of the CX600-X1-M4
10
FAN
8 PSU 9 PSU
5 NPU
1 PIC
4 PIC
3 PIC
6 MPU 7 MPU
2 PIC
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
1 CX600-X1-M4 Hardware Description
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
