1.3.1 Air Channel
The CX600-X1-M4 dissipates heat by blowing air in a left-to-right direction. Figure 1-10 shows
the air flow in the CX600-X1-M4.

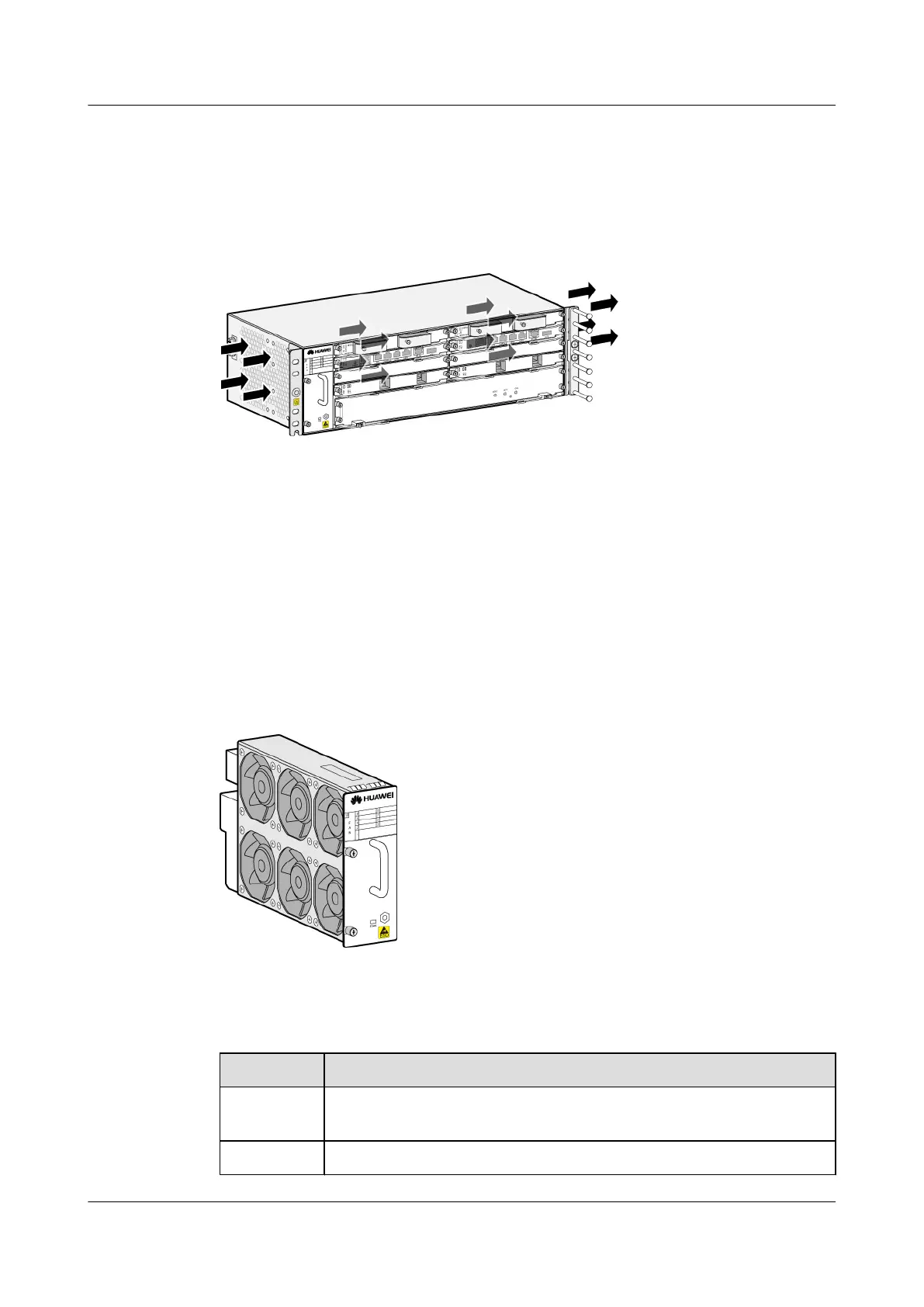

Figure 1-10 Air flow in the CX600-X1-M4
1.3.2 Fan Module
The air intake vent of the CX600-X1-M4 is 3U (133.35 mm or 5.25 in.) high and 220 mm (8.67
in.) deep.
There are six fans in the fan frame of the CX600-X1-M4. When one fan fails, the device can
still work at an ambient temperature of 40°C (104°F) for a short period.
The rotation speeds of the fans can automatically be adjusted based on the device temperature.
Figure 1-11 Outline of the fan module for the CX600-X1-M4
Table 1-9 Technical specifications of the fan module for the CX600-X1-M4
Item Specification
Dimensions
(H x W x D)
130 mm x 50 mm x 226 mm (5.12 in. x 1.97 in. x 8.90 in.)
Weight 1.1 kg (2.43 lb)
