Feature Description
Operating environment Operating temperature: -40°C to +65°C (-40°F to 149°F)
(Optics used may limit the ambient temperature range)
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 5% to 95%
Storage environment Storage temperature: -40°C to +70°C (-40°F to 158°F)
Storage humidity: 0% to 95%
4.5 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC)
Overview
8-Port 100/1000Base-RJ45 Physical Interface Card(PIC) supports the electrical module that
provides 1GE electrical interfaces.
Figure 4-5 shows the appearance of the 8-Port 100/1000Base-RJ45 Physical Interface Card
(PIC).

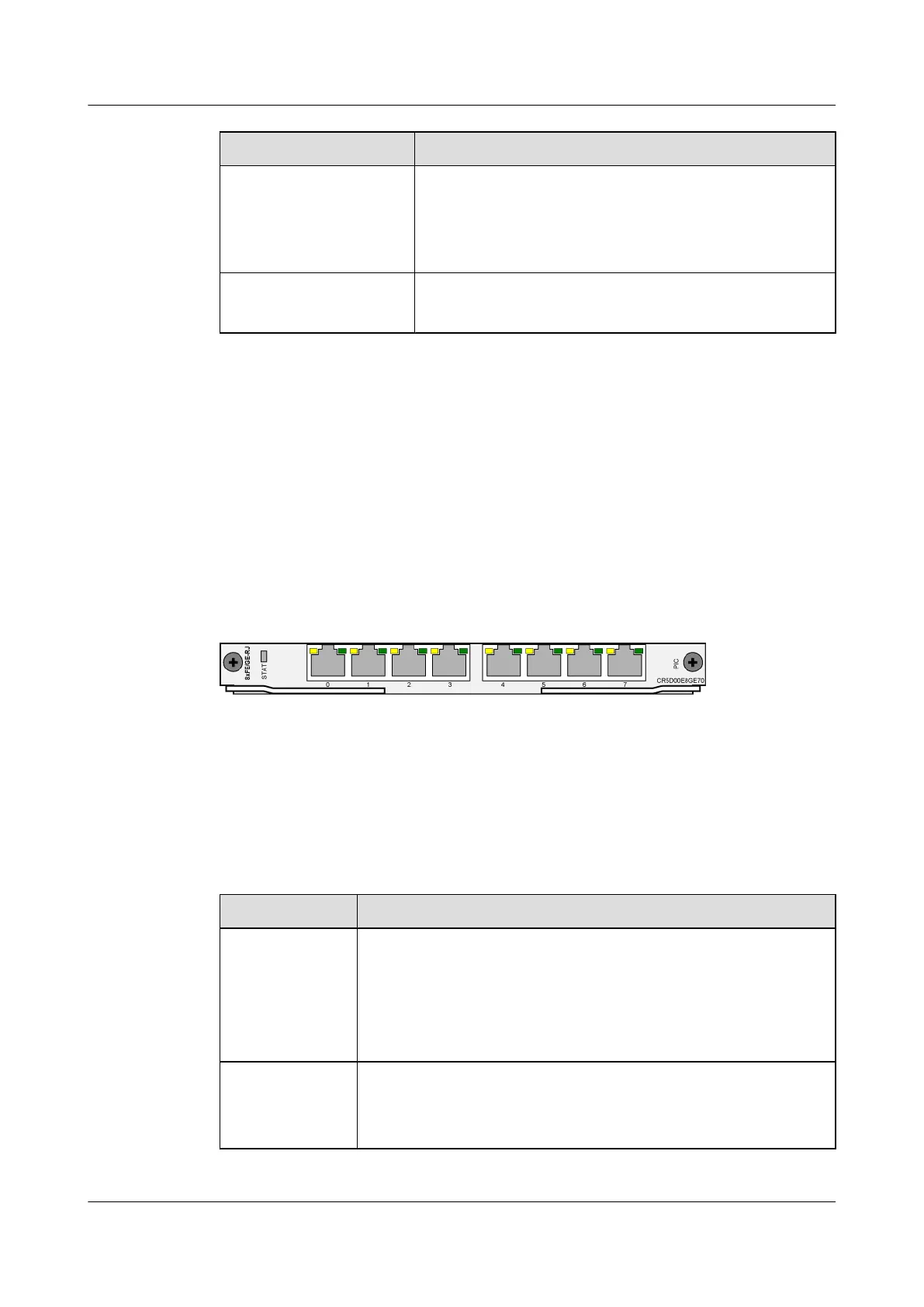

Figure 4-5 Appearance of the 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC)
Panel Description
Table 4-30 describes the indicators on the 8-Port 100/1000Base-RJ45 Physical Interface Card
(PIC).
Table 4-30 Indicators on the 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC)
Indicator Description
STAT If the indicator is steady on, the TND1EF8T is working properly.
If the indicator is off, the TND1EF8T is not powered on or fails to be
registered.
If the indicator is steady red, the hardware of the TND1EF8T is faulty.
If the indicator is steady yellow, the PIC is not loaded with the logic.
LINK (green)/
ACT (orange)
indicator
If the green indicator is on, the link is Up.
If the green indicator is off, the link is Down.
If the orange indicator is blinking, data is being read or written.
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description
4 Boards
Issue 03 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
107
