Huawei CX600-X2-M Series User Manual

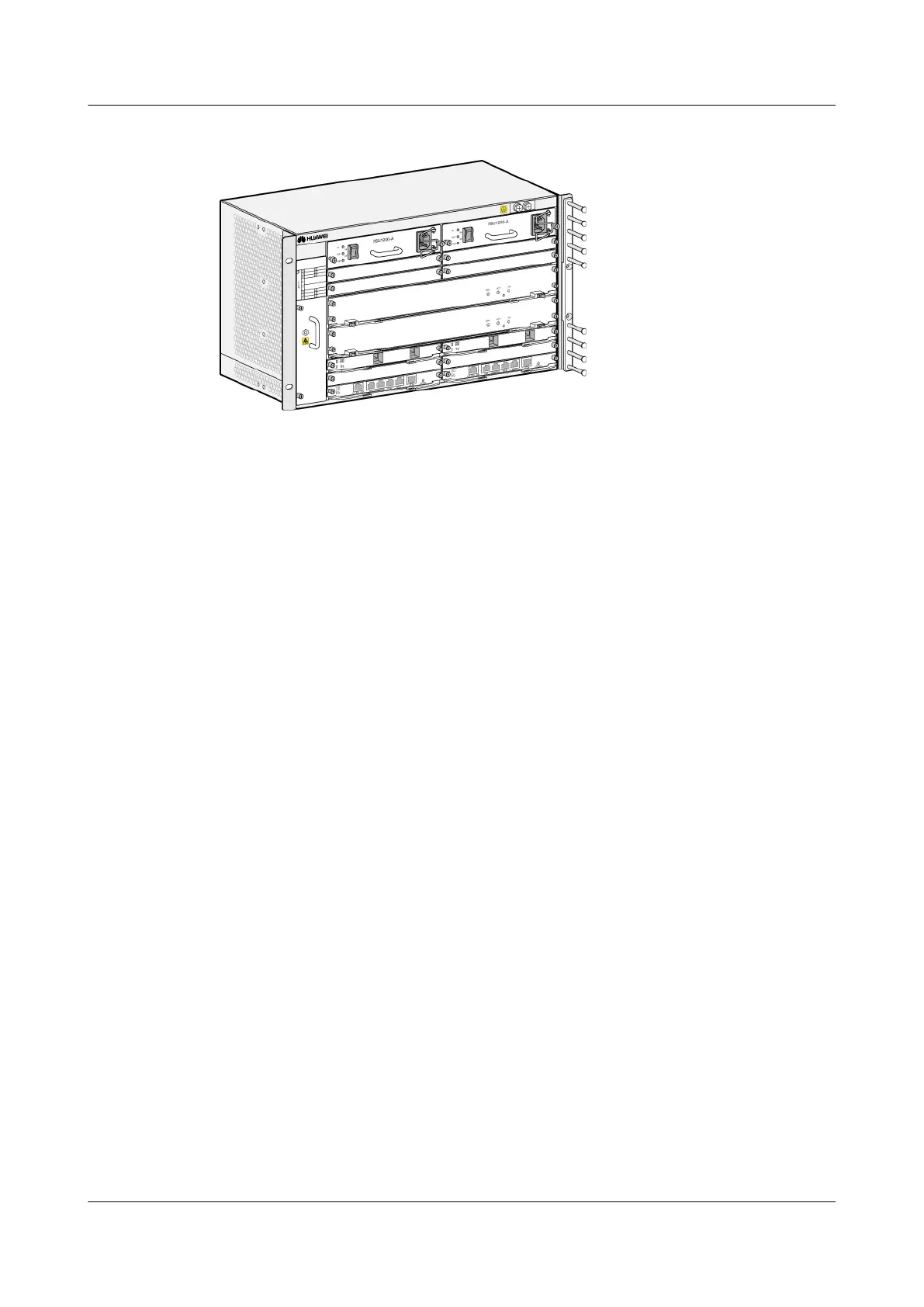

Figure 2-2 Outline of the CX600-X2-M8 AC
System Architecture
The logical architecture of the CX600 consists of the following planes: data plane, control and
management plane, and monitoring plane, as shown in Figure 2-3. The data plane processes and
switches data packets quickly and smoothly; the control and management plane, as the core of
the system, controls and manages the system; the monitoring plane monitors the ambient
operating conditions.
HUAWEI CX600-X1-M/CX600-X2-M Series Metro
Services Platform
Hardware Description 2 CX600-X2-M8 Hardware Description
