Huawei FusionModule5000 Maintenance Guide

FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
106

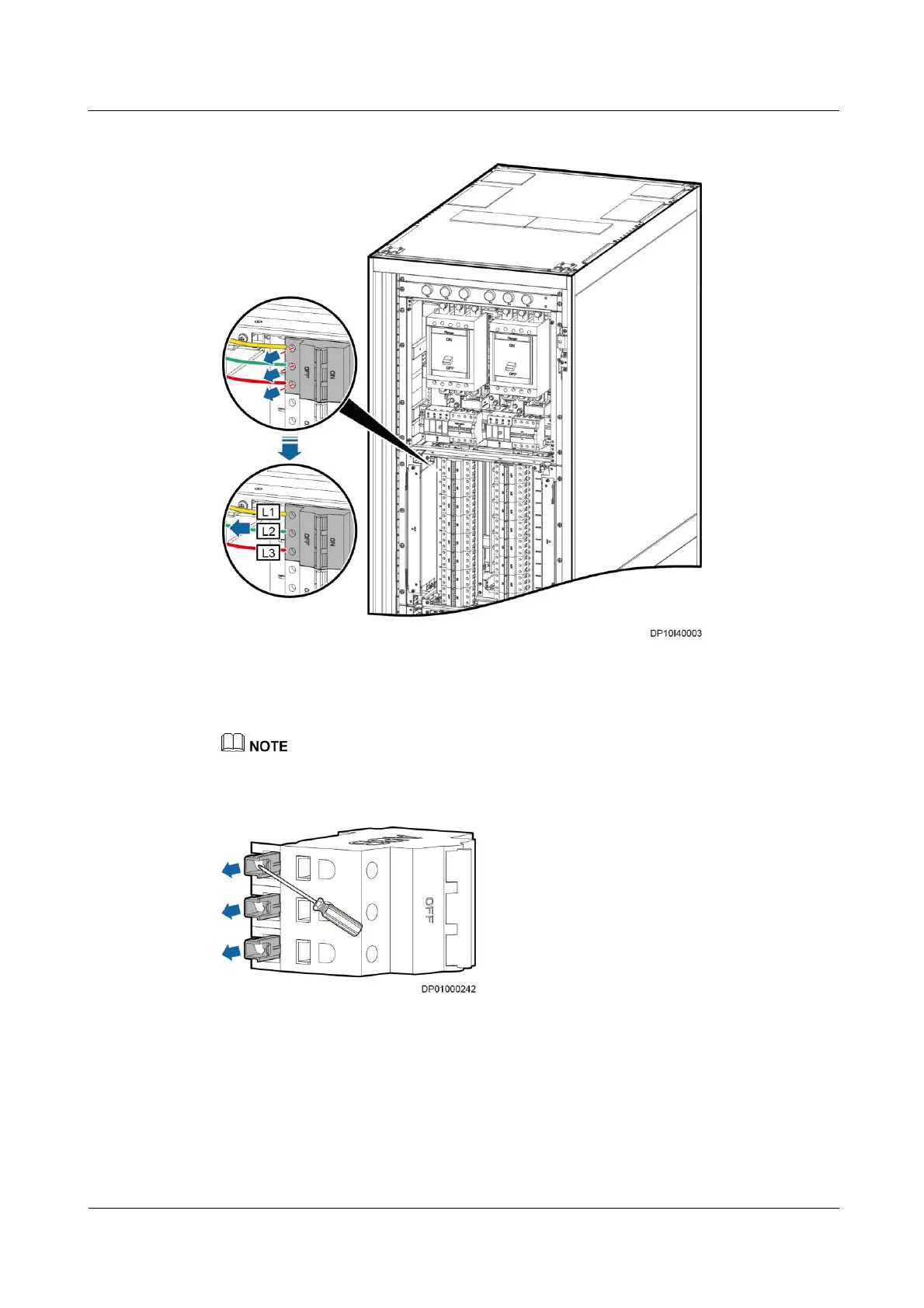

Figure 5-7 Removing cables
Step 4 Push the black clip of the MCB outwards using a flat-head screwdriver. Then remove the
MCB along the inner side of the PDC, as shown in Figure 5-8.
Mark the MCB to ensure correct reinstallation.
Figure 5-8 Pushing the black clip
